Overview
The MAX1278CTC+ is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device operates at up to 1.8 million samples per second (Msps) and features a true-differential input, which enhances noise immunity, reduces distortion, and increases the dynamic range compared to single-ended inputs. The MAX1278CTC+ is designed for applications requiring high-speed conversion, low power consumption, and excellent AC and DC performance.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 1.8 Msps |
| Supply Voltage | +4.75V to +5.25V |
| Internal Reference | 4.096V |
| Analog Input Type | Bipolar (MAX1278) |
| Power Dissipation | 55mW (typ) |
| Shutdown Current | 1µA (max) |
| Interface | SPI™/QSPI™/MICROWIRE™ |
| Signal-to-Noise Ratio (SNR) | 70dB at 525kHz input frequency |

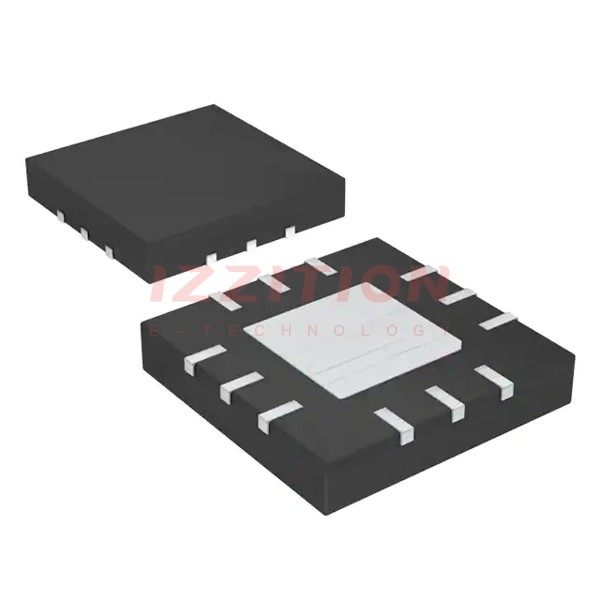

| Package | 12-pin TQFN |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- High-speed sampling rate up to 1.8 Msps
- Low power consumption: 55mW (typ) and 1µA (max) in shutdown mode
- True-differential inputs for improved noise immunity and dynamic range
- Internal 4.096V reference voltage
- Standard SPI™/QSPI™/MICROWIRE™ interface for easy integration with DSPs
- Partial and full power-down modes for reduced power consumption between conversions
- Small 12-pin TQFN package
- Extended temperature range: -40°C to +85°C
Applications
- Industrial process control
- Motor control
- Base-station applications
- Data acquisition systems
- Communications equipment
- Portable instruments
Q & A
- What is the maximum sampling rate of the MAX1278CTC+?
The MAX1278CTC+ can sample up to 1.8 million samples per second (Msps).
- What type of analog input does the MAX1278CTC+ have?
The MAX1278CTC+ has a bipolar analog input.
- What is the supply voltage range for the MAX1278CTC+?
The supply voltage range is +4.75V to +5.25V.
- Does the MAX1278CTC+ have an internal reference voltage?
Yes, it has an internal 4.096V reference voltage.
- What interface does the MAX1278CTC+ use for data communication?
The MAX1278CTC+ uses a standard SPI™/QSPI™/MICROWIRE™ interface.
- What is the typical power dissipation of the MAX1278CTC+?
The typical power dissipation is 55mW.
- What is the shutdown current of the MAX1278CTC+?
The shutdown current is 1µA (max).
- In what package is the MAX1278CTC+ available?
The MAX1278CTC+ is available in a 12-pin TQFN package.
- What is the operating temperature range of the MAX1278CTC+?
The operating temperature range is -40°C to +85°C.
- What are some common applications for the MAX1278CTC+?
Common applications include industrial process control, motor control, base-station applications, data acquisition systems, and communications equipment.
