Overview
The MAX1218ECQ+D, produced by Analog Devices Inc./Maxim Integrated, is a dual, monolithic, 12-bit analog-to-digital converter (ADC) designed for high-performance applications. This device operates at conversion rates of up to 170 million samples per second (Msps) and is optimized for dynamic performance up to a 250MHz input frequency. It is particularly suited for wideband applications due to its excellent signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR).
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Rate | Up to 170 Msps |
| Input Frequency Range | Up to 250 MHz |
| Power Supply | Single 1.8V |
| Power Consumption | 700 mW per channel |
| Signal-to-Noise Ratio (SNR) | 66.2 dB at 200 MHz |
| Spurious-Free Dynamic Range (SFDR) | 78 dBc at 200 MHz |
| Analog Input Configuration | AC-coupled, differential or single-ended |
| Clock Input | Selectable on-chip divide-by-2 clock circuit, up to 340 MHz |
| Digital Output Format | LVDS compatible, two's complement or offset binary |

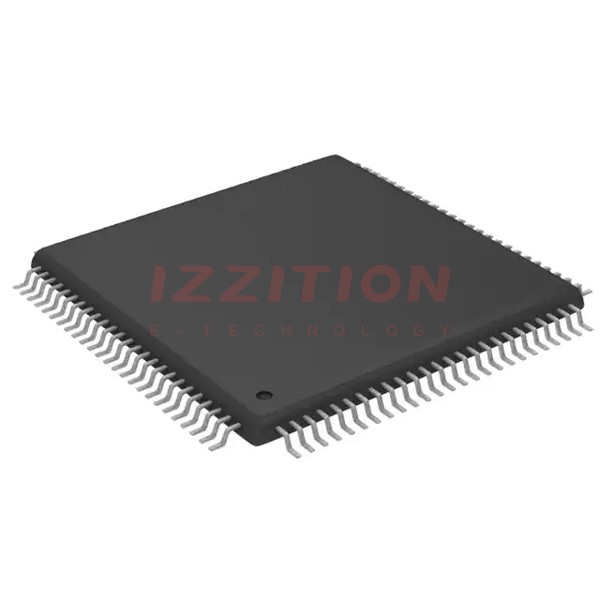

| Package | 100-pin TQFP with exposed paddle |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- High conversion rate of up to 170 Msps.
- Excellent dynamic performance with 66.2 dB SNR and 78 dBc SFDR at 200 MHz input frequency.
- Single 1.8V power supply with low power consumption of 700 mW per channel.
- Analog inputs configurable for AC-coupled, differential, or single-ended operation.
- Selectable on-chip divide-by-2 clock circuit accepting clock frequencies up to 340 MHz.
- LVDS compatible digital outputs with selectable two's complement or offset binary data format.
- Available in a 100-pin TQFP package with exposed paddle.
Applications
- Automated Test Equipment (ATE) and Instrumentation.
- Cable Digital Return Path Transmitters.
- Cable Modem Termination Systems (CMTS).
- Cellular Base-Station Power-Amplifier Linearization.
- IF and Baseband Digitization.
- Radar Systems.
Q & A
- What is the resolution of the MAX1218 ADC?
The MAX1218 has a resolution of 12 bits. - What is the maximum conversion rate of the MAX1218?
The MAX1218 can convert at rates up to 170 Msps. - What is the maximum input frequency the MAX1218 can handle?
The MAX1218 can handle input frequencies up to 250 MHz. - What is the power supply requirement for the MAX1218?
The MAX1218 operates from a single 1.8V power supply. - How much power does the MAX1218 consume per channel?
The MAX1218 consumes 700 mW per channel. - What is the SNR of the MAX1218 at a 200 MHz input frequency?
The SNR of the MAX1218 is 66.2 dB at a 200 MHz input frequency. - What is the SFDR of the MAX1218 at a 200 MHz input frequency?
The SFDR of the MAX1218 is 78 dBc at a 200 MHz input frequency. - What types of analog input configurations are supported by the MAX1218?
The MAX1218 supports AC-coupled, differential, or single-ended analog input configurations. - What is the maximum clock frequency the MAX1218 can accept?
The MAX1218 can accept clock frequencies up to 340 MHz with its on-chip divide-by-2 clock circuit. - In what package is the MAX1218 available?
The MAX1218 is available in a 100-pin TQFP package with an exposed paddle.
