Overview
The MAX1217ECQ+D is a dual, monolithic, 12-bit analog-to-digital converter (ADC) designed by Analog Devices Inc./Maxim Integrated. This high-speed ADC is optimized for broadband applications, offering outstanding dynamic performance up to a 250MHz input frequency. It operates at conversion rates of up to 125Msps, consuming only 650mW per channel. The device is particularly suited for wideband applications such as communications receivers, cable head-end receivers, and power-amplifier predistortion in cellular base-station transceivers.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Rate | Up to 125Msps |
| Input Frequency Range | Up to 250MHz |
| Power Supply | Single 1.8V |
| Power Consumption | 650mW per channel |
| Signal-to-Noise Ratio (SNR) | 65.3dB at 200MHz |
| Spurious-Free Dynamic Range (SFDR) | 80dBc at 200MHz |
| Analog Input Operation | AC-coupled, differential or single-ended |
| Clock Input | Selectable on-chip divide-by-2, up to 250MHz |
| Digital Outputs | LVDS compatible, two's complement or offset binary |

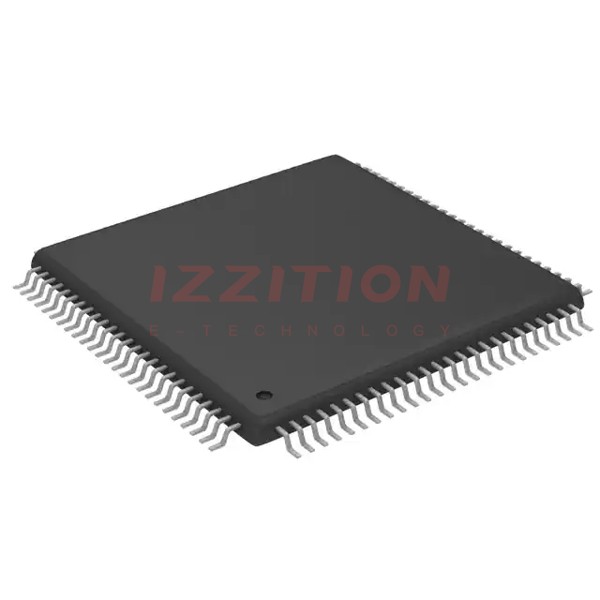

| Package | 100-pin TQFP with exposed paddle |
| Temperature Range | -40°C to +85°C |
Key Features
- High-speed conversion rates up to 125Msps
- Excellent dynamic performance with 65.3dB SNR and 80dBc SFDR at 200MHz
- Single 1.8V power supply
- Low power consumption of 650mW per channel
- Analog inputs designed for AC-coupled, differential, or single-ended operation
- Selectable on-chip divide-by-2 clock circuit for reduced phase noise
- LVDS digital outputs with selectable data format (two's complement or offset binary)
- Internal 1.24V bandgap reference
- Available in a 100-pin TQFP package with exposed paddle
Applications
- Automated Test Equipment (ATE) and Instrumentation
- Cable Digital Return Path Transmitters
- Cable Modem Termination Systems (CMTS)
- Cellular Base-Station Power-Amplifier Linearization
- IF and Baseband Digitization
- Radar Systems
Q & A
- What is the resolution and conversion rate of the MAX1217ECQ+D?
The MAX1217ECQ+D has a 12-bit resolution and operates at conversion rates up to 125Msps.
- What is the input frequency range supported by the MAX1217ECQ+D?
The device supports input frequencies up to 250MHz.
- What is the power supply requirement for the MAX1217ECQ+D?
The MAX1217ECQ+D operates from a single 1.8V power supply.
- How much power does the MAX1217ECQ+D consume per channel?
The device consumes 650mW per channel.
- What are the key dynamic performance metrics of the MAX1217ECQ+D?
The MAX1217ECQ+D achieves an 80dBc SFDR and 65.3dB SNR at 200MHz.
- What types of analog input operations are supported by the MAX1217ECQ+D?
The device supports AC-coupled, differential, or single-ended analog input operations.
- What is the clock input capability of the MAX1217ECQ+D?
The device features a selectable on-chip divide-by-2 clock circuit that accepts clock frequencies up to 250MHz.
- What type of digital outputs does the MAX1217ECQ+D provide?
The digital outputs are LVDS compatible and can be configured in either two's complement or offset binary format.
- In what package is the MAX1217ECQ+D available?
The device is available in a 100-pin TQFP package with an exposed paddle.
- What is the operating temperature range of the MAX1217ECQ+D?
The device is specified over the extended temperature range of -40°C to +85°C.
