Overview

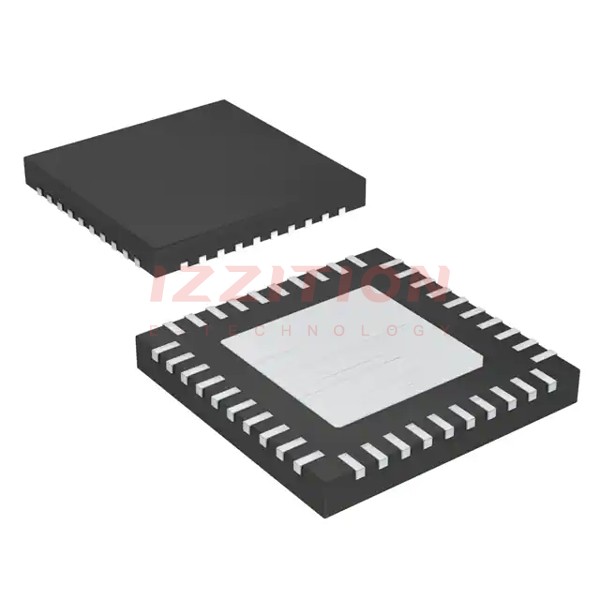

The MAX1211ETL+T is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the pipelined ADC family and is designed for high-speed data conversion. It features a single channel and operates at a sampling rate of up to 65 MS/s, making it suitable for a variety of high-speed data acquisition applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 1 Channel |
| Interface Type | Parallel |
| Sampling Rate | Up to 65 MS/s |
| Package Type | 40-pin TQFN EP T/R |
Key Features
- High-speed sampling rate of up to 65 MS/s
- Single-channel operation
- 12-bit resolution for high accuracy
- Parallel interface for fast data transfer
- Pipelined architecture for efficient conversion
- Available in a 40-pin TQFN EP T/R package for compact design
Applications
The MAX1211ETL+T is ideal for various high-speed data acquisition applications, including:
- Medical imaging and diagnostics
- High-speed data logging and monitoring
- Industrial automation and control systems
- Aerospace and defense systems
- Scientific instrumentation and research equipment
Q & A
- What is the resolution of the MAX1211ETL+T ADC?
The MAX1211ETL+T has a resolution of 12 bits. - How many channels does the MAX1211ETL+T support?
The MAX1211ETL+T supports a single channel. - What is the maximum sampling rate of the MAX1211ETL+T?
The maximum sampling rate is up to 65 MS/s. - What type of interface does the MAX1211ETL+T use?
The MAX1211ETL+T uses a parallel interface. - In what package is the MAX1211ETL+T available?
The MAX1211ETL+T is available in a 40-pin TQFN EP T/R package. - What are some typical applications for the MAX1211ETL+T?
Typical applications include medical imaging, high-speed data logging, industrial automation, aerospace and defense systems, and scientific instrumentation. - Is the MAX1211ETL+T suitable for high-speed data acquisition?
Yes, the MAX1211ETL+T is designed for high-speed data acquisition with its high sampling rate and pipelined architecture. - Does the MAX1211ETL+T have any power-saving features?
While specific power-saving features are not detailed in the provided sources, the device's design and high-speed operation suggest it is optimized for efficient performance. - Can the MAX1211ETL+T be used in industrial environments?
Yes, the MAX1211ETL+T can be used in industrial environments due to its robust design and high-speed capabilities. - Where can I find more detailed technical specifications for the MAX1211ETL+T?
You can find detailed technical specifications in the datasheet available on the Analog Devices website or through distributors like Mouser.
