MAX1169CCUD+T
  • Share:

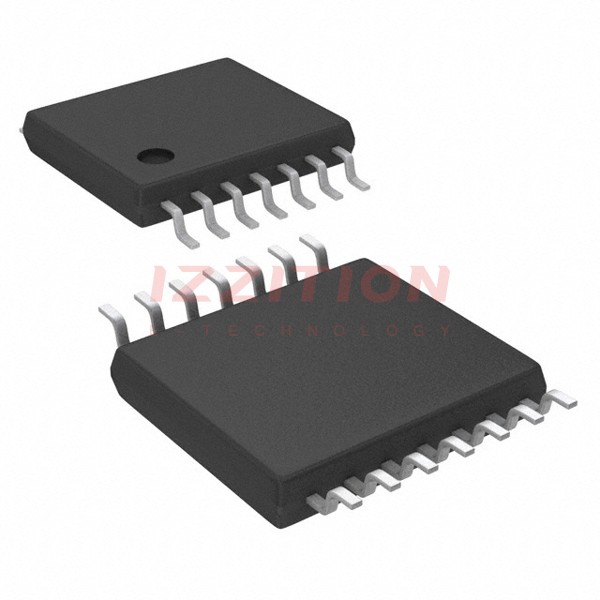

Analog Devices Inc./Maxim Integrated MAX1169CCUD+T

Manufacturer No:
MAX1169CCUD+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Description:
IC ADC 16BIT SAR 14TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1169CCUD+T is a low-power, 16-bit successive-approximation analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed for high precision and low power consumption, making it suitable for a variety of applications. It features an I2C-compatible 2-wire serial interface, an internal 4MHz clock, and an internal +4.096V reference voltage. The MAX1169 operates from a single supply voltage and is packaged in a 14-pin TSSOP, ensuring compactness and ease of integration into various systems.

Key Specifications

Parameter Value Unit
Resolution 16-bit
Sampling Rate 58.6 ksps
Supply Voltage (Analog) +4.75V to +5.25V V
Supply Voltage (Digital) +2.7V to +5.5V V
Internal Reference Voltage +4.096V V
External Reference Voltage Range 1V to VAVDD V
Conversion Clock Internal 4MHz
Power Consumption (Max Conversion Rate) 5mW mW
Shutdown Current < 50µA at 1ksps µA
Interface Type I2C-compatible 2-wire serial
Interface Speed Up to 1.7MHz
Package Type 14-pin TSSOP

Key Features

  • High-speed I2C-compatible serial interface with fast mode (400kHz) and high-speed mode (1.7MHz)
  • Internal +4.096V reference voltage and external reference voltage range from 1V to VAVDD
  • Internal 4MHz conversion clock
  • Automatic power-down (AutoShutdown™) reducing supply current to less than 50µA at 1ksps
  • Separate analog and digital power-supply inputs for low-noise operation
  • Support for up to 16 devices on the same bus using four address select inputs
  • Extended temperature range operation

Applications

  • Hand-held portable applications
  • Medical instruments
  • Battery-powered test equipment
  • Solar-powered remote systems
  • Received-signal-strength indicators
  • System supervision

Q & A

  1. What is the resolution of the MAX1169 ADC?

    The MAX1169 has a 16-bit resolution.

  2. What is the maximum sampling rate of the MAX1169?

    The MAX1169 has a maximum sampling rate of 58.6 ksps.

  3. What is the supply voltage range for the MAX1169?

    The MAX1169 operates from a single supply voltage of +4.75V to +5.25V for the analog supply and +2.7V to +5.5V for the digital supply.

  4. Does the MAX1169 have an internal reference voltage?

    Yes, the MAX1169 has an internal +4.096V reference voltage.

  5. What type of interface does the MAX1169 use?

    The MAX1169 uses an I2C-compatible 2-wire serial interface.

  6. How many devices can be connected on the same bus?

    Up to 16 MAX1169 devices can be connected on the same bus using the four address select inputs.

  7. What is the power consumption of the MAX1169 at maximum conversion rate?

    The MAX1169 consumes 5mW at the maximum conversion rate.

  8. What is the shutdown current of the MAX1169?

    The shutdown current is less than 50µA at a 1ksps throughput rate.

  9. In what package is the MAX1169 available?

    The MAX1169 is available in a 14-pin TSSOP package.

  10. What are some typical applications of the MAX1169?

    The MAX1169 is used in hand-held portable applications, medical instruments, battery-powered test equipment, solar-powered remote systems, received-signal-strength indicators, and system supervision.

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):58.6k
Number of Inputs:1
Input Type:Single Ended
Data Interface:I²C
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:2.7V ~ 5.25V
Features:Selectable Address
Operating Temperature:-40°C ~ 85°C
Package / Case:14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:14-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
34

Please send RFQ , we will respond immediately.

Same Series
MAX1169BEUD+T
MAX1169BEUD+T
IC ADC 16BIT SAR 14TSSOP
MAX1169CCUD+
MAX1169CCUD+
IC ADC 16BIT SAR 14TSSOP
MAX1169CCUD+T
MAX1169CCUD+T
IC ADC 16BIT SAR 14TSSOP
MAX1169CEUD+
MAX1169CEUD+
IC ADC 16BIT SAR 14TSSOP
MAX1169CEUD+T
MAX1169CEUD+T
IC ADC 16BIT SAR 14TSSOP

Similar Products

Part Number MAX1169CCUD+T MAX1169CEUD+T MAX1169CCUD+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete Obsolete
Number of Bits 16 16 16
Sampling Rate (Per Second) 58.6k 58.6k 58.6k
Number of Inputs 1 1 1
Input Type Single Ended Single Ended Single Ended
Data Interface I²C I²C I²C
Configuration S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1
Number of A/D Converters 1 1 1
Architecture SAR SAR SAR
Reference Type External, Internal External, Internal External, Internal
Voltage - Supply, Analog 5V 5V 5V
Voltage - Supply, Digital 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V
Features Selectable Address Selectable Address Selectable Address
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 14-TSSOP (0.173", 4.40mm Width) 14-TSSOP (0.173", 4.40mm Width) 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP 14-TSSOP 14-TSSOP
Mounting Type Surface Mount Surface Mount Surface Mount
