Overview
The MAX1169CCUD+ is a low-power, 16-bit successive-approximation analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed for high-performance and low-power applications, making it suitable for a variety of use cases. The MAX1169 features an on-chip 4MHz clock, a +4.096V internal reference, and an I²C-compatible 2-wire serial interface that supports both fast and high-speed modes. It operates from a single supply and consumes 5mW at the maximum conversion rate of 58.6ksps. The device also includes automatic power-down, reducing supply current to less than 50µA at a 1ksps throughput rate, which is particularly beneficial for battery-powered systems.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 16 |
| Sampling Rate | 58.6ksps |
| Number of Inputs | 1 (Single Ended) |
| Data Interface | I²C |
| Architecture | Successive Approximation (SAR) |
| Reference Type | Internal (+4.096V) and External (1V to VAVDD) |
| Analog Supply Voltage | +5V |
| Digital Supply Voltage | +2.7V to +5.5V |
| Operating Temperature | -40°C to 85°C |

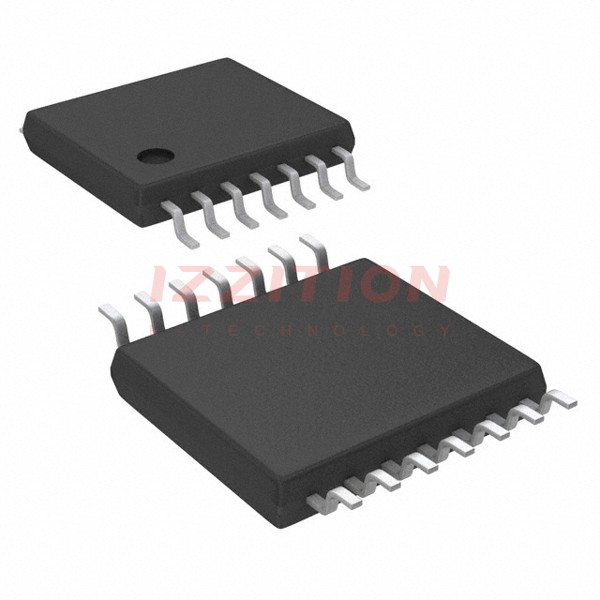

| Package | 14-Pin TSSOP |
Key Features
- High-Speed I²C-Compatible Serial Interface: Supports fast mode (400kHz) and high-speed mode (1.7MHz)
- Internal +4.096V Reference and External Reference Option: Allows flexibility in setting the full-scale analog input range
- Internal 4MHz Conversion Clock: Ensures precise and efficient conversions
- Automatic Power-Down: Reduces supply current to less than 50µA at a 1ksps throughput rate
- Selectable Address: Four address select inputs (ADD0 to ADD3) allow up to 16 devices on the same bus
- Separate Analog and Digital Power-Supply Inputs: Enhances noise reduction and compatibility with low-voltage ASICs
Applications
- Hand-Held Portable Applications
- Medical Instruments
- Battery-Powered Test Equipment
- Solar-Powered Remote Systems
- Received-Signal-Strength Indicators
- System Supervision
Q & A
- What is the resolution of the MAX1169 ADC?
The MAX1169 is a 16-bit analog-to-digital converter.
- What is the maximum sampling rate of the MAX1169?
The MAX1169 has a maximum sampling rate of 58.6ksps.
- What type of serial interface does the MAX1169 use?
The MAX1169 uses an I²C-compatible 2-wire serial interface.
- What is the internal reference voltage of the MAX1169?
The internal reference voltage is +4.096V.
- Can the MAX1169 operate with external reference voltages?
- What is the power consumption of the MAX1169 at maximum conversion rate?
The MAX1169 consumes 5mW at the maximum conversion rate of 58.6ksps.
- How does the MAX1169 reduce power consumption between conversions?
The MAX1169 features automatic power-down, reducing supply current to less than 50µA at a 1ksps throughput rate.
- What is the operating temperature range of the MAX1169?
The MAX1169 operates over an extended temperature range of -40°C to 85°C.
- What package type is the MAX1169 available in?
The MAX1169 is packaged in a 14-pin TSSOP.
- Can multiple MAX1169 devices be connected on the same bus?
