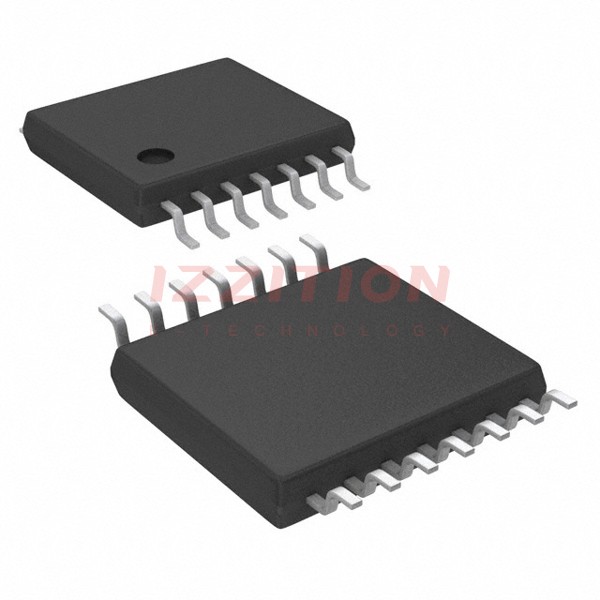

MAX1169BEUD+T
  • Share:

Analog Devices Inc./Maxim Integrated MAX1169BEUD+T

Manufacturer No:
MAX1169BEUD+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Description:
IC ADC 16BIT SAR 14TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1169BEUD+T is a low-power, 16-bit successive-approximation analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed for high-performance and low-power applications, featuring an on-chip 4MHz clock, a +4.096V internal reference, and an I²C-compatible 2-wire serial interface. The MAX1169 operates from a single supply and consumes 5mW at the maximum conversion rate of 58.6ksps. It also includes AutoShutdown™, which powers down the device between conversions, reducing supply current to less than 50µA at a 1ksps throughput rate.

Key Specifications

ParameterValue
Resolution16-bit
Sampling Rate58.6ksps
Supply Voltage (Analog)+4.75V to +5.25V
Supply Voltage (Digital)+2.7V to +5.5V
Internal Reference+4.096V
External Reference Range1V to VAVDD
Conversion Clock4MHz
Serial InterfaceI²C-compatible, 400kHz Fast Mode, 1.7MHz High-Speed Mode
Package14-pin TSSOP
Operating Temperature-40°C to 85°C
Power Consumption5mW at 58.6ksps, < 50µA at 1ksps

Key Features

  • High-Speed I²C-Compatible Serial Interface with 400kHz Fast Mode and 1.7MHz High-Speed Mode
  • Internal +4.096V Reference and External Reference Option (1V to VAVDD)
  • Internal 4MHz Conversion Clock
  • AutoShutdown™ for Low Power Consumption Between Conversions
  • Separate Analog and Digital Power-Supply Inputs
  • Four Address Select Inputs (ADD0 to ADD3) for Up to 16 Devices on the Same Bus
  • Unipolar Conversion on Single Analog Input

Applications

  • Hand-Held Portable Applications
  • Medical Instruments
  • Battery-Powered Test Equipment
  • Solar-Powered Remote Systems
  • Received-Signal-Strength Indicators
  • System Supervision

Q & A

  1. What is the resolution of the MAX1169BEUD+T ADC? The MAX1169BEUD+T has a 16-bit resolution.
  2. What is the maximum sampling rate of the MAX1169BEUD+T? The maximum sampling rate is 58.6ksps.
  3. What are the supply voltage ranges for the MAX1169BEUD+T? The analog supply voltage range is +4.75V to +5.25V, and the digital supply voltage range is +2.7V to +5.5V.
  4. Does the MAX1169BEUD+T have an internal reference voltage? Yes, it has an internal +4.096V reference voltage.
  5. What is the operating temperature range of the MAX1169BEUD+T? The operating temperature range is -40°C to 85°C.
  6. How many devices can be connected on the same bus using the address select inputs? Up to 16 devices can be connected on the same bus.
  7. What is the power consumption of the MAX1169BEUD+T at maximum conversion rate? The power consumption is 5mW at 58.6ksps.
  8. Does the MAX1169BEUD+T support high-speed serial interface modes? Yes, it supports both 400kHz Fast Mode and 1.7MHz High-Speed Mode.
  9. What is the package type of the MAX1169BEUD+T? The package type is 14-pin TSSOP.
  10. What are some typical applications of the MAX1169BEUD+T? Typical applications include hand-held portable devices, medical instruments, battery-powered test equipment, and system supervision.

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):58.6k
Number of Inputs:1
Input Type:Single Ended
Data Interface:I²C
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:2.7V ~ 5.25V
Features:Selectable Address
Operating Temperature:-40°C ~ 85°C
Package / Case:14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:14-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$23.25
42

Please send RFQ , we will respond immediately.

Same Series
MAX1169BEUD+T
MAX1169BEUD+T
IC ADC 16BIT SAR 14TSSOP
MAX1169CCUD+
MAX1169CCUD+
IC ADC 16BIT SAR 14TSSOP
MAX1169CCUD+T
MAX1169CCUD+T
IC ADC 16BIT SAR 14TSSOP
MAX1169CEUD+
MAX1169CEUD+
IC ADC 16BIT SAR 14TSSOP
MAX1169CEUD+T
MAX1169CEUD+T
IC ADC 16BIT SAR 14TSSOP

Similar Products

Part Number MAX1169BEUD+T MAX1169CEUD+T MAX1169BEUD+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Obsolete Active
Number of Bits 16 16 16
Sampling Rate (Per Second) 58.6k 58.6k 58.6k
Number of Inputs 1 1 1
Input Type Single Ended Single Ended Single Ended
Data Interface I²C I²C I²C
Configuration S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1
Number of A/D Converters 1 1 1
Architecture SAR SAR SAR
Reference Type External, Internal External, Internal External, Internal
Voltage - Supply, Analog 5V 5V 5V
Voltage - Supply, Digital 2.7V ~ 5.25V 2.7V ~ 5.25V 2.7V ~ 5.25V
Features Selectable Address Selectable Address Selectable Address
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 14-TSSOP (0.173", 4.40mm Width) 14-TSSOP (0.173", 4.40mm Width) 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP 14-TSSOP 14-TSSOP
Mounting Type Surface Mount Surface Mount Surface Mount
