Overview

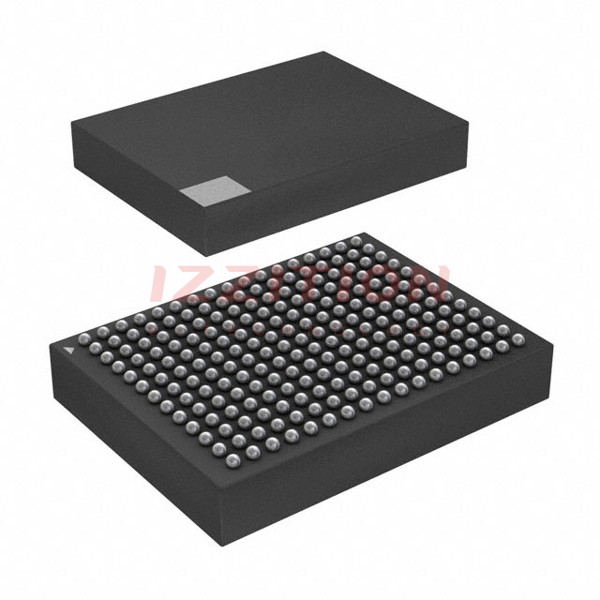

The LTM9012CY-AB#PBF is a high-performance analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of the Linear Technology product line, now integrated into Analog Devices. It is designed to offer high-speed and high-resolution conversion, making it suitable for a variety of demanding applications.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | LTM9012CY-AB#PBF |
| Description | 4x 14-Bit ADC |
| Number of Bits | 14 |
| Number of A/D Converters | 4 |
| Sampling Rate (Per Second) | Up to 105 MSPS |
| Reference Type | External, Internal |
| Input Type | Differential |
| Supply Voltage - Digital | 1.7 V ~ 1.9 V |
| Supply Voltage - Analog | 1.7 V ~ 1.9 V |
| Package / Case | 221-BGA |
| Operating Temperature | 0°C ~ 70°C |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| RoHS Status | Lead free / RoHS Compliant |
Key Features
- High-speed sampling rates up to 105 MSPS
- 14-bit resolution with four simultaneous sampling channels
- Differential input type for improved noise immunity
- External and internal reference options
- Low power consumption with supply voltages ranging from 1.7 V to 1.9 V for both digital and analog supplies
- Pipelined architecture for high-speed conversion
- LVDS serial data interface for high-speed data transfer
Applications
The LTM9012CY-AB#PBF is designed for various high-performance applications, including:
- Medical imaging and diagnostics
- Industrial automation and control systems
- Aerospace and defense systems
- High-speed data acquisition systems
- Test and measurement equipment
Q & A
- What is the part number of this ADC?
The part number is LTM9012CY-AB#PBF. - Who is the manufacturer of this component?
The manufacturer is Analog Devices Inc. - What is the resolution of this ADC?
The resolution is 14 bits. - How many A/D converters are included in this component?
There are four A/D converters. - What is the maximum sampling rate of this ADC?
The maximum sampling rate is up to 105 MSPS. - What type of input does this ADC support?
This ADC supports differential inputs. - What are the supply voltage ranges for this component?
The supply voltage ranges are 1.7 V to 1.9 V for both digital and analog supplies. - Is this component RoHS compliant?
Yes, this component is lead free and RoHS compliant. - What is the operating temperature range of this component?
The operating temperature range is 0°C to 70°C. - What is the package type of this component?
The package type is 221-BGA.
