Overview

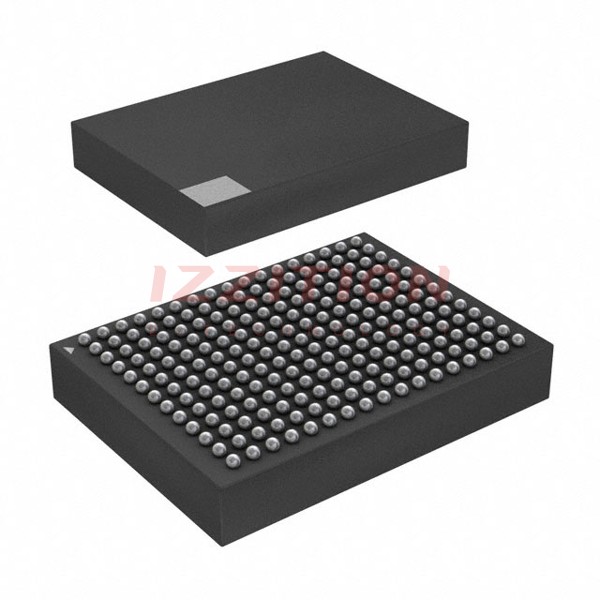

The LTM9012IY-AB#PBF is a high-performance, 4-channel, 14-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the μModule series and is designed for high-speed data conversion in demanding applications. It features a pipelined architecture and supports parallel, serial, and LVDS output interfaces. Although the product is currently obsolete and no longer manufactured, it remains a significant component in legacy systems and designs.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Resolution | 14-bit |
| Sampling Rate | 125 Msps |
| Output Interface | Parallel, Serial, LVDS |
| Package/Case | 10-MSOP |
| Manufacturer | Analog Devices Inc. |
| Series | μModule |
| Packaging | Tray |
Key Features
- High-speed data conversion with a sampling rate of 125 Msps
- 4-channel, 14-bit pipelined ADC architecture
- Supports parallel, serial, and LVDS output interfaces
- Compact 10-MSOP package
- Part of the μModule series, known for integrated functionality and ease of use
Applications
The LTM9012IY-AB#PBF is suitable for a variety of high-speed data conversion applications, including:
- Medical imaging and diagnostics
- Industrial control and automation
- Aerospace and defense systems
- High-speed data acquisition systems
- Telecommunications and wireless infrastructure
Q & A
- What is the resolution of the LTM9012IY-AB#PBF ADC?
The LTM9012IY-AB#PBF has a resolution of 14 bits. - How many channels does the LTM9012IY-AB#PBF support?
The device supports 4 channels. - What is the sampling rate of the LTM9012IY-AB#PBF?
The sampling rate is 125 Msps. - What output interfaces are supported by the LTM9012IY-AB#PBF?
The device supports parallel, serial, and LVDS output interfaces. - In what package is the LTM9012IY-AB#PBF available?
The device is available in a 10-MSOP package. - Is the LTM9012IY-AB#PBF still in production?
No, the LTM9012IY-AB#PBF is currently obsolete and no longer manufactured. - What series does the LTM9012IY-AB#PBF belong to?
The device is part of the μModule series. - What are some common applications for the LTM9012IY-AB#PBF?
Common applications include medical imaging, industrial control, aerospace and defense systems, high-speed data acquisition, and telecommunications. - What is the packaging type for the LTM9012IY-AB#PBF?
The device is packaged in trays. - Who is the manufacturer of the LTM9012IY-AB#PBF?
The manufacturer is Analog Devices Inc.
