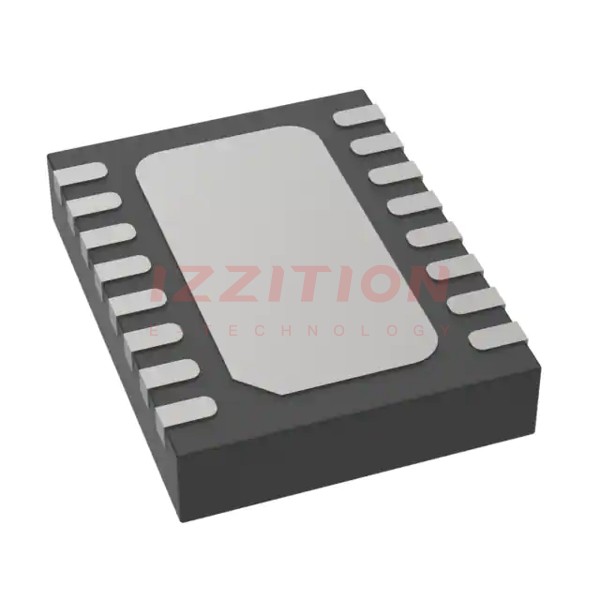

Analog Devices Inc. LTC2380IDE-24#TRPBF

Manufacturer No:
LTC2380IDE-24#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC ADC 24BIT SAR 16DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2380IDE-24#TRPBF is a high-performance, 24-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices, Inc. This device is designed for low noise, low power, and high-speed applications. It operates from a single 2.5V supply and features fully differential inputs, making it suitable for a wide range of precision measurement and data acquisition systems.

Key Specifications

Parameter Value
Manufacturer ADI (Analog Devices, Inc.)
Description IC ADC SAR 24BIT 2MSPS 16DFN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Voltage - Supply, Digital 1.71 V ~ 5.25 V
Voltage - Supply, Analog 1.71 V ~ 5.25 V
Supplier Device Package 16-DFN (4x3)
Sampling Rate (Per Second) 2M
Reference Type External
Ratio - S/H:ADC 1:1
Packaging Tape & Reel (TR)
Package / Case 16-WFDFN Exposed Pad
Operating Temperature -40°C ~ 85°C
Number of Inputs 1
Number of Bits 24
Number of A/D Converters 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Input Type Differential
Data Interface SPI
Configuration S/H-ADC
Architecture SAR

Key Features

  • High Resolution: 24-bit successive approximation register (SAR) ADC, ensuring high precision in measurements.
  • Low Power Consumption: Operates at 28mW, making it energy-efficient for various applications.
  • High Speed: Sampling rates of up to 2Msps, suitable for high-speed data acquisition.
  • Integrated Digital Averaging Filter: Can average 1 to 65536 conversion results in real-time, significantly improving dynamic range.
  • Fully Differential Inputs: Supports a fully differential input range with VREF ranging from 2.5V to 5.1V.
  • SPI-Compatible Serial Interface: Supports 1.8V, 2.5V, 3.3V, and 5V logic and features a daisychain mode.
  • Low Noise and High Accuracy: Achieves ±3.5ppm INL maximum and no missing codes at 24 bits, with –117dB THD.
  • Automatic Power Down: Powers down between conversions to reduce power dissipation at lower sampling rates.

Applications

  • Precision Measurement Systems: Ideal for applications requiring high accuracy and low noise, such as in scientific instruments and industrial control systems.
  • Data Acquisition Systems: Suitable for high-speed data acquisition in various fields including medical devices, aerospace, and automotive systems.
  • Industrial Automation: Used in control and monitoring systems that require precise analog-to-digital conversion.
  • Medical Devices: Applicable in medical equipment that demands high precision and low power consumption.
  • Aerospace and Defense: Employed in systems that require high reliability, low noise, and high-speed conversion.

Q & A

  1. What is the resolution of the LTC2380IDE-24#TRPBF ADC?

    The LTC2380IDE-24#TRPBF is a 24-bit ADC.

  2. What is the maximum sampling rate of the LTC2380IDE-24#TRPBF?

    The maximum sampling rate is 2Msps.

  3. What type of input does the LTC2380IDE-24#TRPBF support?

    The device supports fully differential inputs.

  4. What is the power consumption of the LTC2380IDE-24#TRPBF?

    The device consumes 28mW of power.

  5. Does the LTC2380IDE-24#TRPBF have an integrated digital averaging filter?

    Yes, it has an integrated digital averaging filter that can average 1 to 65536 conversion results in real-time.

  6. What is the operating temperature range of the LTC2380IDE-24#TRPBF?

    The operating temperature range is -40°C to 85°C.

  7. Is the LTC2380IDE-24#TRPBF RoHS compliant?

    Yes, the device is lead-free and RoHS compliant.

  8. What type of packaging does the LTC2380IDE-24#TRPBF come in?

    The device is packaged in a 16-WFDFN Exposed Pad and is available in tape and reel (TR) packaging.

  9. What is the input type of the LTC2380IDE-24#TRPBF?

    The input type is differential.

  10. Does the LTC2380IDE-24#TRPBF support SPI interface?

    Yes, it supports an SPI-compatible serial interface.

Product Attributes

Number of Bits:24
Sampling Rate (Per Second):2M
Number of Inputs:1
Input Type:Differential
Data Interface:SPI
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:1.71V ~ 5.25V
Voltage - Supply, Digital:1.71V ~ 5.25V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:16-WFDFN Exposed Pad
Supplier Device Package:16-DFN (4x3)
Mounting Type:Surface Mount
