Overview
The LTC2380-24, produced by Analog Devices Inc., is a high-performance, low-power, 24-bit successive approximation register (SAR) analog-to-digital converter (ADC). This device operates from a single 2.5V supply and features fully differential inputs, making it suitable for a wide range of applications requiring high precision and low noise. The LTC2380-24 includes an integrated digital averaging filter, which can average 1 to 65536 conversion results in real-time, significantly enhancing the dynamic range from 101dB at 1.5Msps to 145dB at 30.5sps. This ADC is known for its low power consumption of 28mW and high accuracy, achieving ±3.5ppm INL maximum with no missing codes at 24 bits.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 24 |
| Sampling Rate | 1.5Msps / 2Msps |
| Supply Voltage | 2.5V |
| Input Type | Fully Differential |
| Reference Voltage Range | 2.5V to 5.1V |
| Power Consumption | 28mW |
| INL (Maximum) | ±3.5ppm |
| THD | –117dB |
| Operating Temperature | 0°C to 70°C |

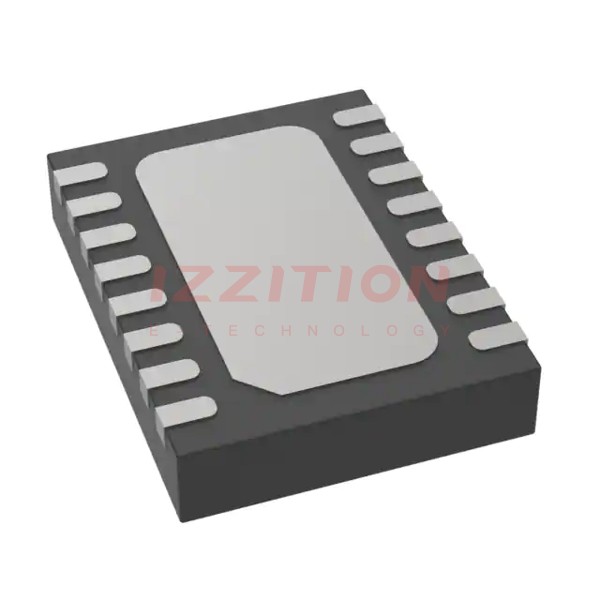

| Package | 16-Lead DFN (4mm x 3mm w/ EP), 16-Lead MSOP |
| Data Interface | SPI-compatible serial interface |
Key Features
- Integrated digital averaging filter that can average 1 to 65536 conversion results in real-time, improving dynamic range significantly.
- Low power consumption of 28mW.
- High accuracy with ±3.5ppm INL maximum and no missing codes at 24 bits.
- Fully differential inputs with a reference voltage range of 2.5V to 5.1V.
- SPI-compatible serial interface supporting 1.8V, 2.5V, 3.3V, and 5V logic, with daisychain mode.
- Automatic power-down between conversions to reduce power dissipation at lower sampling rates.
Applications
The LTC2380-24 is suitable for various high-precision applications, including:
- Industrial process control and measurement.
- Medical devices requiring high accuracy and low noise.
- Aerospace and defense systems where precision and reliability are critical.
- Test and measurement equipment.
- Automotive systems that demand high performance and low power consumption.
Q & A
- What is the resolution of the LTC2380-24 ADC?
The LTC2380-24 is a 24-bit ADC.
- What is the sampling rate of the LTC2380-24?
The sampling rate is 1.5Msps or 2Msps.
- What is the supply voltage for the LTC2380-24?
The supply voltage is 2.5V.
- What type of input does the LTC2380-24 have?
The LTC2380-24 has fully differential inputs.
- How much power does the LTC2380-24 consume?
The power consumption is 28mW.
- What is the INL (Integral Non-Linearity) of the LTC2380-24?
The INL is ±3.5ppm maximum.
- Does the LTC2380-24 have any missing codes at 24 bits?
No, the LTC2380-24 has no missing codes at 24 bits.
- What is the dynamic range improvement with the integrated digital averaging filter?
The dynamic range improves from 101dB at 1.5Msps to 145dB at 30.5sps.
- What type of data interface does the LTC2380-24 use?
The LTC2380-24 uses an SPI-compatible serial interface.
- Does the LTC2380-24 support daisychain mode?
