Overview

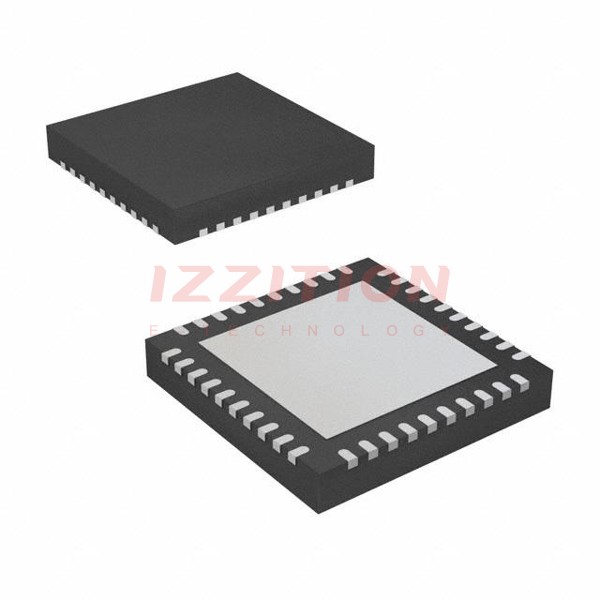

The HMC764LP6CETR from Analog Devices Inc. is a fully functional Fractional-N Phase-Locked-Loop (PLL) with an Integrated Voltage Controlled Oscillator (VCO). This component is designed to operate within the RF frequency range of 7.3 GHz to 8.2 GHz, making it suitable for various high-frequency applications. The HMC764LP6CETR features advanced delta-sigma modulator design, allowing for ultra-fine step sizes and very low spurious products. It is packaged in a 40-lead QFN (Quad Flat No-Lead) 6 x 6 mm surface mount package, which is RoHS-compliant and has a low stress injection molded plastic body.
Key Specifications
| Parameter | Condition | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|
| VCO Output Frequency Range | 7.3 | 7.8 | 8.2 | GHz | |
| VCO Output Power | 12 | 17 | dBm | ||
| VCO Tuning Voltage | 2 | 13 | V | ||
| VCO Tuning Sensitivity (VTUNE = +5V) | 130 | MHz/V | |||
| Frequency Pulling (into a 2:1 VSWR) | 8 | MHz | |||
| Frequency Pushing (VTUNE = +5V) | 10 | MHz/V | |||
| Frequency Drift Rate | 1 | MHz/°C | |||
| Sub Harmonic (1/2) | 40 | dBc | |||
| Harmonic (2nd) | 20 | dBc | |||
| Harmonic (3rd) | 35 | dBc | |||
| VCO SSB Phase Noise @ 100 kHz Offset (Open Loop) | VTUNE = +5V, Fvco = 7.8 GHz | -116 | dBc/Hz | ||
| Input Reference Frequency Range | 100 kHz | 220 MHz | |||
| Operating Temperature | -40 | 85 | °C | ||
| Supply Voltage | 1.8 | 5.5 | V | ||
| Total Current Consumption (5V) | 245 | 290 | mA | ||
| Total Current Consumption (3.3V) | 90 | 110 | mA |
Key Features
- Fractional or Integer Modes
- Ultra Low Phase Noise: -98 / -101 dBc/Hz @ 10 kHz (Frac / Int), -140 dBc/Hz @ 1 MHz (Open Loop)
- Figure of Merit (FOM): -221 / -226 dBc/Hz (Frac / Int)
- 24-bit Step Size, Resolution 3 Hz typical
- 225 MHz, 14-bit reference path input
- Direct FSK Modulation Mode
- Cycle Slip Prevention
- Read / Write Serial Port, Chip ID
- Advanced delta-sigma modulator design for ultra-fine step sizes and low spurious products
Applications
The HMC764LP6CETR is ideal for various high-frequency applications, including:
- RF and Microwave Systems
- Communications Analog Front Ends
- I/Q Modulators and Demodulators
- Phase Locked Loop (PLL) Synthesizer & Translation Loop
- RF Mixers and LO (Local Oscillator) ports of high linearity and I/Q mixer products
- Wireless Sensor Networks and other high-frequency communication systems
Q & A
- What is the frequency range of the HMC764LP6CETR?
The HMC764LP6CETR operates within the frequency range of 7.3 GHz to 8.2 GHz.
- What type of PLL does the HMC764LP6CETR use?
The HMC764LP6CETR uses a Fractional-N Phase-Locked-Loop (PLL).
- What is the typical output power of the HMC764LP6CETR?
The typical output power is 17 dBm.
- What is the input reference frequency range of the HMC764LP6CETR?
The input reference frequency range is from 100 kHz to 220 MHz.
- What is the operating temperature range of the HMC764LP6CETR?
The operating temperature range is from -40°C to 85°C.
- What is the supply voltage range for the HMC764LP6CETR?
The supply voltage range is from 1.8V to 5.5V.
- What is the typical current consumption of the HMC764LP6CETR at 5V?
The typical current consumption at 5V is 290 mA.
- Does the HMC764LP6CETR support direct FSK modulation?
- What is the phase noise performance of the HMC764LP6CETR?
The phase noise performance is -98 / -101 dBc/Hz @ 10 kHz (Frac / Int) and -140 dBc/Hz @ 1 MHz (Open Loop).
- What package type is the HMC764LP6CETR available in?
The HMC764LP6CETR is available in a 40-lead QFN (Quad Flat No-Lead) 6 x 6 mm surface mount package.
