Overview
The HMC715LP3E is a GaAs PHEMT MMIC Low Noise Amplifier (LNA) designed by Analog Devices Inc. This amplifier is optimized for use in Cellular/3G and LTE/WiMAX/4G basestation front-end receivers, operating within the frequency range of 2.1 to 2.9 GHz. It is characterized by its low noise figure, high gain, and excellent linearity, making it an ideal component for various wireless communication systems.
Key Specifications
| Parameter | Value |
|---|---|
| Noise Figure | 0.9 dB |
| Gain | 19 dB |
| Output IP3 | +33 dBm |
| Single Supply Voltage | +3V to +5V |

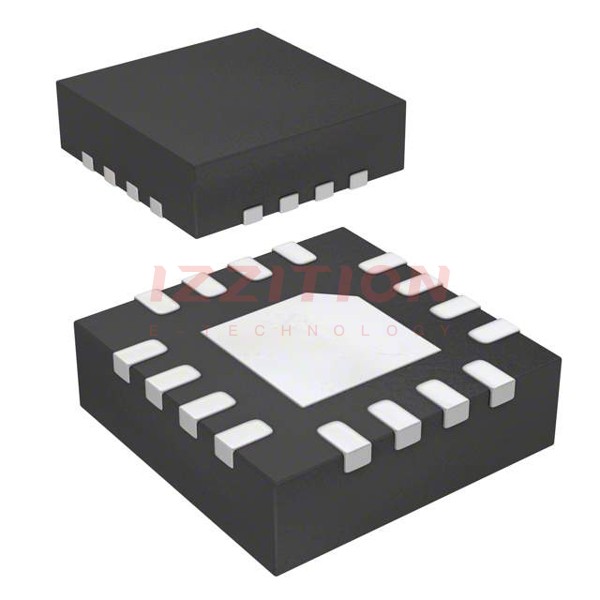

| Package Type | 16 Lead 3x3mm QFN |
| Frequency Range | 2.1 - 2.9 GHz |
| Supply Current | 95 mA (typical at Vdd = +5V) |
| P1dB | 19.5 dBm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Low noise figure of 0.9 dB, ensuring minimal signal degradation.
- High gain of 19 dB, enhancing signal strength.
- Excellent linearity with an output IP3 of +33 dBm.
- Single supply operation with adjustable supply current for tailored linearity performance.
- Minimal external matching and bias decoupling components required.
- RoHS-compliant 16-lead 3x3mm QFN package.
Applications
- Cellular/3G and LTE/WiMAX/4G basestation front-end receivers.
- Base Transceiver Stations (BTS) and infrastructure.
- Repeaters and femtocells.
- Public safety radio systems.
- Access points.
Q & A
- What is the frequency range of the HMC715LP3E?
The HMC715LP3E operates within the frequency range of 2.1 to 2.9 GHz. - What is the noise figure of the HMC715LP3E?
The noise figure is 0.9 dB. - What is the gain of the HMC715LP3E?
The gain is 19 dB. - What is the output IP3 of the HMC715LP3E?
The output IP3 is +33 dBm. - What is the supply voltage range for the HMC715LP3E?
The supply voltage range is +3V to +5V. - What type of package does the HMC715LP3E come in?
The HMC715LP3E comes in a 16-lead 3x3mm QFN package. - Is the HMC715LP3E RoHS-compliant?
Yes, the HMC715LP3E is RoHS-compliant. - What is the typical supply current for the HMC715LP3E?
The typical supply current is 95 mA at Vdd = +5V. - What are the typical applications of the HMC715LP3E?
The HMC715LP3E is typically used in Cellular/3G and LTE/WiMAX/4G basestation front-end receivers, BTS, repeaters, femtocells, public safety radio systems, and access points. - Does the HMC715LP3E require external matching components?
No, the HMC715LP3E requires minimal external matching and bias decoupling components.
