Overview
The HMC716LP3E is a GaAs pHEMT MMIC Low Noise Amplifier (LNA) designed by Analog Devices Inc. This component is optimized for use in fixed wireless and LTE/WiMAX/4G basestation front-end receivers, operating within the frequency range of 3.1 to 3.9 GHz. The amplifier is characterized by its low noise figure, high gain, and excellent linearity, making it an ideal choice for various wireless communication applications.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Frequency Range | 3.1 - 3.9 | GHz |
| Noise Figure | 1 | dB |
| Gain | 18 | dB |
| Output IP3 | +33 | dBm |
| Single Supply Voltage | +3V to +5V | V |
| Input/Output Impedance | 50 Ohm Matched | |

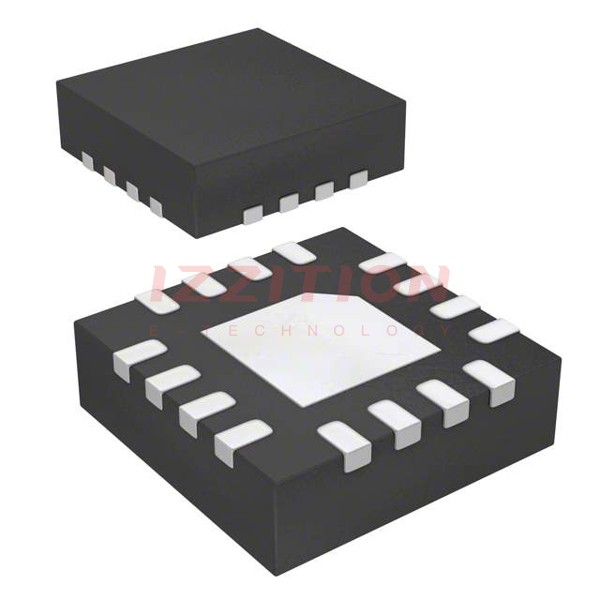

| Package Type | 16 Lead 3x3mm SMT QFN |
Key Features
- Low noise figure of 1 dB, ensuring minimal signal degradation.
- High gain of 18 dB, enhancing signal strength.
- High output IP3 of +33 dBm, providing excellent linearity.
- Single supply voltage range of +3V to +5V, offering flexibility in power supply design.
- 50 Ohm matched input and output, minimizing the need for external matching components.
- Externally adjustable supply current, allowing designers to tailor the linearity performance for specific applications.
- Compact 16 lead 3x3mm SMT QFN package, suitable for space-constrained designs.
Applications
- Fixed Wireless and LTE/WiMAX/4G basestation front-end receivers.
- Base Transceiver Stations (BTS) and Infrastructure.
- Repeaters and Femtocells.
- Public Safety Radio systems.
- Access Points.
Q & A
- What is the frequency range of the HMC716LP3E?
The HMC716LP3E operates within the frequency range of 3.1 to 3.9 GHz.
- What is the noise figure of the HMC716LP3E?
The noise figure of the HMC716LP3E is 1 dB.
- What is the gain of the HMC716LP3E?
The gain of the HMC716LP3E is 18 dB.
- What is the output IP3 of the HMC716LP3E?
The output IP3 of the HMC716LP3E is +33 dBm.
- What is the supply voltage range for the HMC716LP3E?
The HMC716LP3E can be biased with a single supply voltage ranging from +3V to +5V.
- What type of package does the HMC716LP3E come in?
The HMC716LP3E comes in a 16 lead 3x3mm SMT QFN package.
- What are the typical applications of the HMC716LP3E?
The HMC716LP3E is typically used in fixed wireless, LTE/WiMAX/4G basestation front-end receivers, BTS & Infrastructure, Repeaters and Femtocells, Public Safety Radio, and Access Points.
- Does the HMC716LP3E require external matching components?
No, the HMC716LP3E has 50 Ohm matched input and output, minimizing the need for external matching components.
- Can the linearity performance of the HMC716LP3E be adjusted?
- Is the HMC716LP3E RoHS-compliant?
