Overview

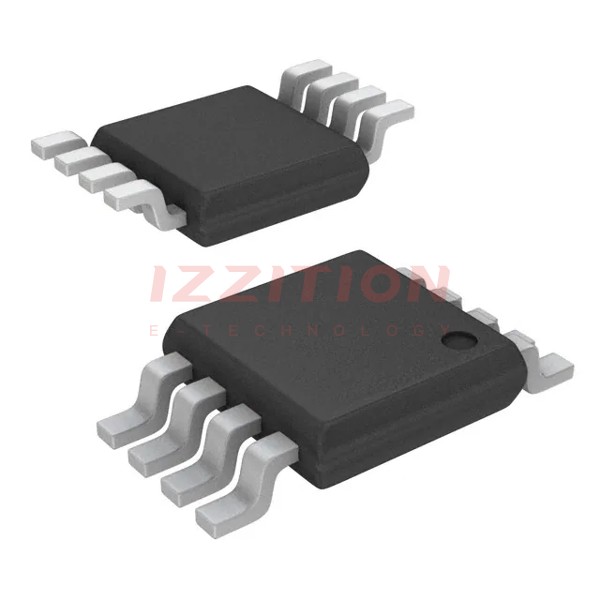

The HMC270AMS8GETR is a high-performance RF switch IC produced by Analog Devices Inc. This Single-Pole Double-Throw (SPDT) switch is designed to operate up to 8 GHz, making it suitable for a wide range of RF and microwave applications. The device is packaged in an 8-MSOP (Micro Small Outline Package) and is RoHS compliant. It is known for its low insertion loss, high isolation, and fast switching times, which are critical for modern wireless communication systems.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 0 Hz to 8 GHz |
| Insertion Loss | Typically 2.4 dB at 4 GHz |
| Isolation | Typically 33 dB at 4 GHz |
| Switching Time | Typically 10 ns |
| Package Type | 8-MSOP-EP |
| Supply Voltage | Single supply: +3V to +5V |
| Control Voltage | Logic compatible with +3V to +5V |
| Operating Temperature | -40°C to +85°C |
Key Features
- Low insertion loss and high isolation
- Fast switching times (typically 10 ns)
- Single supply operation (+3V to +5V)
- Logic compatible control inputs
- Compact 8-MSOP package
- RoHS compliant
Applications
- Wireless communication systems (e.g., cellular, Wi-Fi, Bluetooth)
- Microwave and RF test equipment
- Satellite communications
- Radar systems
- Medical imaging and diagnostic equipment
Q & A
- What is the frequency range of the HMC270AMS8GETR? The HMC270AMS8GETR operates from 0 Hz to 8 GHz.
- What is the typical insertion loss of the HMC270AMS8GETR? The typical insertion loss is 2.4 dB at 4 GHz.
- What is the isolation of the HMC270AMS8GETR? The isolation is typically 33 dB at 4 GHz.
- What is the switching time of the HMC270AMS8GETR? The switching time is typically 10 ns.
- What is the package type of the HMC270AMS8GETR? The device is packaged in an 8-MSOP-EP.
- Is the HMC270AMS8GETR RoHS compliant? Yes, the HMC270AMS8GETR is RoHS compliant.
- What is the operating temperature range of the HMC270AMS8GETR? The operating temperature range is -40°C to +85°C.
- What are the typical applications of the HMC270AMS8GETR? Typical applications include wireless communication systems, microwave and RF test equipment, satellite communications, radar systems, and medical imaging equipment.
- What is the supply voltage range for the HMC270AMS8GETR? The supply voltage range is +3V to +5V.
- Are the control inputs logic compatible? Yes, the control inputs are logic compatible with +3V to +5V.
