Overview
The ADV3219ACPZ from Analog Devices Inc. is a high-speed, high-slew-rate, buffered, 2:1 analog multiplexer. This device is designed to handle high-speed signal switching with a -3dB signal bandwidth greater than 840 MHz and channel switch times of less than 20 ns with 1% settling. It features low crosstalk and high isolation, making it suitable for various high-speed applications. The multiplexer includes an output buffer that can be placed into a high impedance state, allowing multiple outputs to be connected together without loading the output bus.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| -3 dB Bandwidth | - | 840 | - | MHz |
| Gain Flatness | - | 0.1 dB | - | - |
| Propagation Delay | - | 700 ps | - | ps |
| Settling Time (1%, 2 V step) | - | 5 ns | - | ns |
| Slew Rate (2 V step, peak) | - | 2200 V/μs | - | V/μs |
| Differential Gain Error (NTSC or PAL) | - | 0.02 % | - | % |
| Differential Phase Error (NTSC or PAL) | - | 0.02 Degrees | - | Degrees |
| Crosstalk (f = 5 MHz) | -90 dB | - | - | dB |
| Off Isolation (f = 5 MHz, one channel) | -92 dB | - | - | dB |
| Supply Voltage | ±4.5 V | ±5 V | ±5.5 V | V |

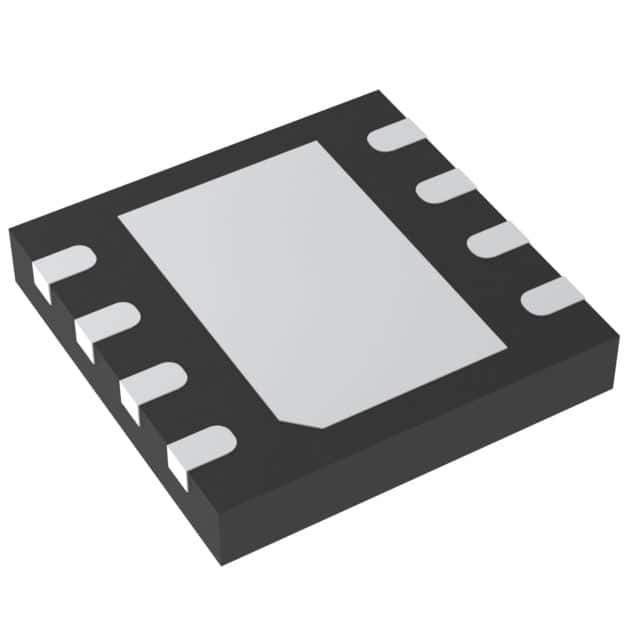

| Package | - | 8-lead LFCSP | - | - |
Key Features
- High-speed operation with a -3dB signal bandwidth greater than 840 MHz.
- Low channel switch times of less than 20 ns with 1% settling.
- Low crosstalk of -90 dB at 5 MHz and high isolation of -92 dB.
- High impedance output disable feature, allowing multiple devices to be connected without loading the output bus.
- Low differential gain error and differential phase error, making it suitable for video and other high-speed signal applications.
- Buffered output with a gain of +1.
Applications
- Routing of high-speed signals including video (NTSC, PAL, S, SECAM, YUV, and RGB).
- Compressed video (MPEG, wavelet).
- 3-level digital video (HDB3).
- Data communications.
- Telecommunications.
Q & A
- What is the primary function of the ADV3219ACPZ?
The ADV3219ACPZ is a high-speed, high-slew-rate, buffered, 2:1 analog multiplexer designed for high-speed signal switching.
- What is the -3dB signal bandwidth of the ADV3219ACPZ?
The -3dB signal bandwidth is greater than 840 MHz.
- What are the channel switch times of the ADV3219ACPZ?
The channel switch times are less than 20 ns with 1% settling.
- What is the crosstalk performance of the ADV3219ACPZ at 5 MHz?
The crosstalk is -90 dB at 5 MHz.
- Can multiple outputs of the ADV3219ACPZ be connected together?
- What are the typical applications of the ADV3219ACPZ?
The device is used in routing high-speed signals, including video, compressed video, 3-level digital video, data communications, and telecommunications.
- What is the supply voltage range for the ADV3219ACPZ?
The supply voltage range is ±4.5 V to ±5.5 V.
- What is the package type of the ADV3219ACPZ?
The device is packaged in an 8-lead LFCSP (Lead Frame Chip Scale Package).
- What is the differential gain error and differential phase error of the ADV3219ACPZ?
The differential gain error and differential phase error are both less than 0.02% and 0.02 degrees, respectively.
- Is the ADV3219ACPZ suitable for video signal switching?
