Overview
The ADV3219ACPZ-RL, produced by Analog Devices Inc., is a high-speed, high slew rate, buffered, 2:1 analog multiplexer. This component is part of the ADV3219 and ADV3220 series, which are designed for high-speed signal switching applications. The ADV3219 has a gain of +1, while the ADV3220 has a gain of +2. Both devices operate on ±5 V supplies and consume less than 7.5 mA of idle current. They are available in an 8-lead LFCSP package and support an extended industrial temperature range of −40°C to +85°C.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| −3 dB Bandwidth (200 mV p-p) | 840 | 800 | MHz | |
| Gain Flatness (0.1 dB, 200 mV p-p) | 100 | 100 | MHz | |
| Propagation Delay (2 V p-p) | 700 | 650 | ps | |
| Settling Time (1%, 2 V step) | 5 | 5 | ns | |
| Slew Rate (2 V step, peak) | 2200 | 2800 | V/μs | |
| Crosstalk (f = 5 MHz) | −90 | −82 | dB | |
| Off Isolation (f = 5 MHz, one channel) | −92 | −88 | dB | |
| Output Impedance (DC, enabled) | 0.02 | 0.04 | Ω | |
| Output Disable Capacitance | 1.0 | 1.2 | pF | |
| Output Leakage Current (Disabled) | 2 | 2 | μA |
Key Features
- High-speed, high slew rate operation with a −3 dB signal bandwidth greater than 800 MHz.
- Channel switch times of less than 20 ns with 1% settling.
- Low crosstalk of −82 dB at 5 MHz and −60 dB at 100 MHz.
- High impedance output disable allows connection of multiple devices without loading the output bus.
- Differential gain error and differential phase error of less than 0.02% and 0.02°, respectively.
- Gain flatness of 0.1 dB beyond 100 MHz while driving a 75 Ω back terminated load.
- Operates on ±5 V supplies with an idle current of less than 7.5 mA.
- Available in an 8-lead LFCSP package with an extended industrial temperature range of −40°C to +85°C.
Applications
- Routing of high-speed signals including video (NTSC, PAL, S, SECAM, YUV, and RGB).
- Compressed video (MPEG, wavelet).
- 3-level digital video (HDB3).
- Data communications.
- Telecommunications.
Q & A
- What is the primary function of the ADV3219ACPZ-RL?
The ADV3219ACPZ-RL is a high-speed, high slew rate, buffered, 2:1 analog multiplexer designed for high-speed signal switching applications.
- What is the gain of the ADV3219 and ADV3220?
The ADV3219 has a gain of +1, and the ADV3220 has a gain of +2.
- What is the signal bandwidth of the ADV3219 and ADV3220?
The signal bandwidth is greater than 800 MHz.
- What are the channel switch times and settling times of the ADV3219 and ADV3220?
The channel switch times are less than 20 ns with 1% settling.
- What is the crosstalk performance of the ADV3219 and ADV3220?
The crosstalk is −82 dB at 5 MHz and −60 dB at 100 MHz.
- What is the output impedance of the ADV3219 and ADV3220 when enabled?
The output impedance is 0.02 to 0.04 Ω.
- Can multiple outputs be connected together without loading the output bus?
Yes, the high impedance output disable feature allows multiple outputs to be connected together for cascading stages without loading the output bus.
- What are the typical applications of the ADV3219 and ADV3220?
Applications include routing of high-speed signals, video, compressed video, 3-level digital video, data communications, and telecommunications.
- What is the operating temperature range of the ADV3219 and ADV3220?
The operating temperature range is −40°C to +85°C.

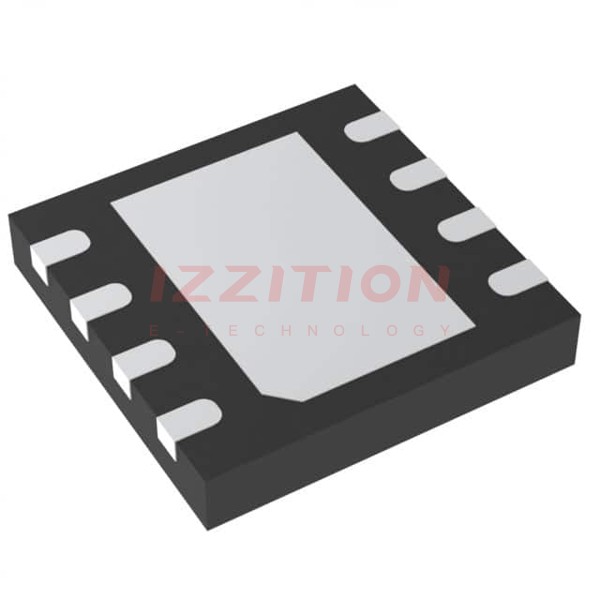

- What package type is the ADV3219ACPZ-RL available in?
The ADV3219ACPZ-RL is available in an 8-lead LFCSP package.
