Overview

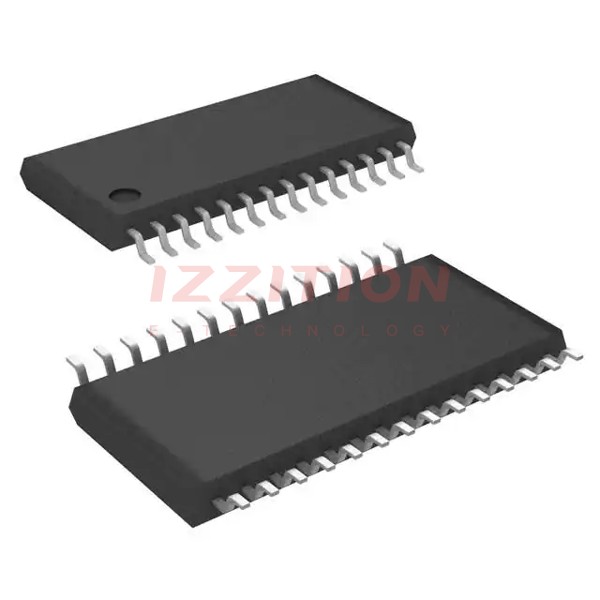

The ADUC814ARU, produced by Analog Devices Inc., is a fully integrated 12-bit data acquisition system-on-a-chip. It combines a high-performance multichannel ADC, an 8-bit MCU based on the 8052 core, and program/data Flash/EE memory on a single chip. This MicroConverter is designed for precision A/D and D/A conversion and is available in a 28-pin TSSOP package. It operates on a single 3V or 5V power supply and is fully specified for operation from -40°C to +125°C.
Key Specifications
| Parameter | Value | Unit | Conditions |
|---|---|---|---|
| Resolution (ADC) | 12 bits | - | - |
| Sampling Rate (ADC) | 247 kSPS | - | - |
| Program Memory | 8 KB Flash | - | - |
| Data Memory | 640 bytes Flash/EE, 256 bytes RAM | - | - |
| Core Processor | 8052, 8-bit | - | - |
| Operating Voltage | 2.7V to 5.5V | V | - |
| Operating Temperature | -40°C to +125°C | °C | - |
| Package | 28-Lead TSSOP | - | - |
| Number of I/O | 17 | - | - |
| DACs | Dual 12-bit | - | - |
| Peripherals | POR, PSM, Temp Sensor, WDT, UART, SPI | - | - |
Key Features
- Precision 12-bit ADC with six channels and dual 12-bit DACs.
- 8-bit MCU based on the 8052 core with 1.3 MIPS performance.
- 8 KB of nonvolatile Flash/EE program memory and 640 bytes of nonvolatile Flash/EE data memory.
- 256 bytes of RAM.
- Internal PLL generating a high frequency clock of 16.78 MHz from a 32 kHz crystal.
- On-chip factory firmware supporting in-circuit serial download and debug modes.
- Power supply monitor, band gap reference, and watchdog timer.
- Support for I²C, SPI, and UART/USART connectivity.
Applications
- Optical Networking: Laser power control.
- Base Station Systems: Power amplifier bias control.
- Precision Instruments and Smart Sensors.
- Battery-Powered Systems and General Precision System Monitors.
Q & A
- What is the ADUC814ARU?
The ADUC814ARU is a fully integrated 12-bit data acquisition system-on-a-chip, combining an ADC, an 8-bit MCU, and program/data Flash/EE memory. - What is the resolution and sampling rate of the ADC?
The ADC has a resolution of 12 bits and a sampling rate of 247 kSPS. - What type of MCU does the ADUC814ARU use?
The MCU is based on the 8052 core, which is 8051-instruction-set compatible. - What is the operating voltage range of the ADUC814ARU?
The operating voltage range is from 2.7V to 5.5V. - What is the operating temperature range of the ADUC814ARU?
The operating temperature range is from -40°C to +125°C. - What peripherals are included in the ADUC814ARU?
The peripherals include POR, PSM, Temp Sensor, WDT, UART, and SPI. - What is the package type of the ADUC814ARU?
The package type is a 28-Lead TSSOP. - Does the ADUC814ARU support in-circuit serial download and debug modes?
Yes, it supports in-circuit serial download and debug modes via UART and single-pin emulation mode via the DLOAD pin. - What are some typical applications of the ADUC814ARU?
Typical applications include optical networking, base station systems, precision instruments, smart sensors, and battery-powered systems. - Is the ADUC814ARU supported by any development tools?
Yes, it is supported by the QuickStart™ development system, which includes PC-based hardware and software development tools.
