Overview

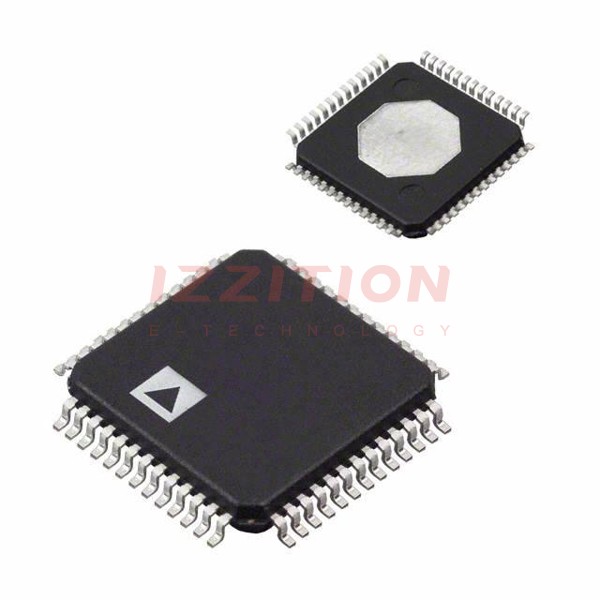

The AD9433BSQ-125 is a high-speed analog-to-digital converter (ADC) produced by Analog Devices Inc. This 12-bit ADC is designed for high-performance data acquisition applications, offering a sampling rate of up to 125 million samples per second (MSPS). It features integrated sample-and-hold circuitry, differential inputs, and a high signal-to-noise ratio (SNR), making it suitable for demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | Up to 125 MSPS |
| Analog Input Bandwidth | 550 MHz |
| Package / Case | Quad Flat Package (HQFP), Surface Mount Device (SMD) |
| Reference Voltage | Built-In 1.2V Reference |
| Power Consumption | Low Power |
| Signal-to-Noise Ratio (SNR) | High SNR |
| Linearity | Excellent Linearity |
| Temperature Stability | Stable Performance Over Temperature |
| Noise Immunity | Robust Noise Immunity |
Key Features
- High-Speed Analog-to-Digital Conversion: Up to 125 MSPS sampling rate.
- Integrated Sample-and-Hold: Ensures accurate signal capture.
- Differential Inputs: Enhances signal integrity and noise immunity.
- High Signal-to-Noise Ratio (SNR): Provides high-quality digital output.
- Low Power Consumption: Suitable for power-sensitive applications.
- Built-In 1.2V Reference: Simplifies system design.
- Excellent Linearity: Maintains high accuracy across the input range.
- Stable Performance Over Temperature: Reliable operation in various environmental conditions.
- Robust Noise Immunity: Minimizes the impact of external noise.
Applications
The AD9433BSQ-125 is ideal for various high-speed data acquisition applications, including:
- Medical Imaging: MRI, CT scanners, and other medical imaging devices.
- Wireless Communication: Base stations, radar systems, and other wireless communication equipment.
- Industrial Automation: High-speed data acquisition in industrial control systems.
- Aerospace and Defense: Radar, sonar, and other military and aerospace applications.
- Scientific Instruments: High-speed data acquisition in scientific research equipment.
