Overview

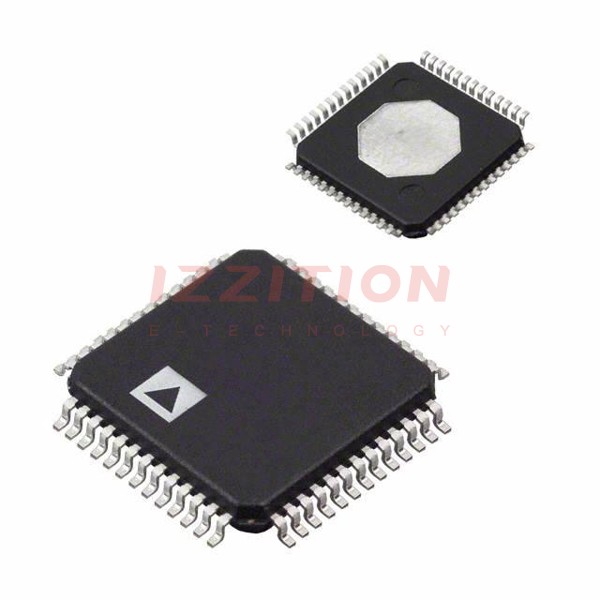

The AD9433BSQ-105 is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed for high-speed signal processing applications, offering a sampling rate of 105 MSPS. It features a 52-pin LQFP package and is optimized for use in various high-tech equipment, including communications infrastructure, medical imaging, and radar systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 105 MSPS |
| Package | 52-LQFP-PQ4 (10x10 mm) |
| Supply Voltage | 3.3V |
| Input Bandwidth | Typically up to several hundred MHz |
| Power Dissipation | Approximately 380 mW |
| Signal-to-Noise Ratio (SNR) | Typically around 68 dB |
| Spurious Free Dynamic Range (SFDR) | Typically around 80 dBc |
| Integral Non-Linearity (INL) | ± 1 LSB |
| Differential Non-Linearity (DNL) | ± 0.3 LSB |
Key Features
- High-speed operation with a sampling rate of 105 MSPS
- 12-bit resolution for precise measurements
- Differential inputs and internal sample-and-hold circuitry
- Low power consumption for energy-efficient design
- Compliant with various digital interfaces
- RoHS compliant and lead-free packaging
- Standard industrial operating temperature range
- Extensive testing and verification for reliability
Applications
- Digital oscilloscopes
- Radar systems
- Communications infrastructure
- Medical imaging equipment
- High-speed data acquisition systems
- Complex signal processing systems
Q & A
- What is the resolution of the AD9433BSQ-105?
The AD9433BSQ-105 has a 12-bit resolution. - What is the sampling rate of the AD9433BSQ-105?
The sampling rate is 105 MSPS. - What type of package does the AD9433BSQ-105 come in?
The component is packaged in a 52-pin LQFP (10x10 mm). - What is the supply voltage for the AD9433BSQ-105?
The supply voltage is 3.3V. - What are the typical power dissipation and SNR values for the AD9433BSQ-105?
The power dissipation is approximately 380 mW, and the SNR is typically around 68 dB. - Is the AD9433BSQ-105 RoHS compliant?
Yes, the AD9433BSQ-105 is RoHS compliant and has lead-free packaging. - What are some common applications for the AD9433BSQ-105?
Common applications include digital oscilloscopes, radar systems, communications infrastructure, and medical imaging equipment. - What is the input bandwidth of the AD9433BSQ-105?
The input bandwidth is typically up to several hundred MHz. - What are the INL and DNL specifications for the AD9433BSQ-105?
The INL is ± 1 LSB, and the DNL is ± 0.3 LSB. - Is the AD9433BSQ-105 suitable for high-speed signal processing?
Yes, it is optimized for high-speed signal processing operations.
