Overview

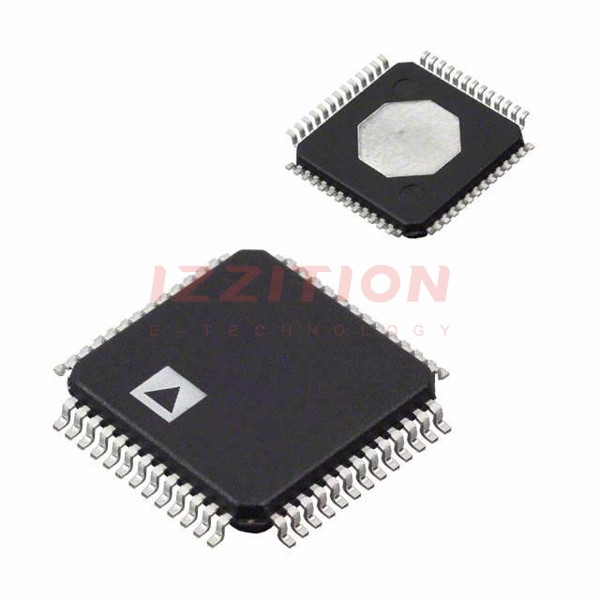

The AD9433BSQZ-125 is a high-speed Analog-to-Digital Converter (ADC) produced by Analog Devices, Inc. This 12-bit ADC is designed for high-performance data acquisition applications, offering a sampling rate of 125 MSPS (Mega Samples Per Second). It features an integrated sample-and-hold circuit, differential inputs, and a built-in 1.2V reference, making it suitable for a wide range of high-speed data conversion tasks.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | AD9433BSQZ-125 |
| Manufacturer | Analog Devices, Inc. |
| Resolution | 12-bit |
| Sampling Rate | 125 MSPS |
| Analog Input Bandwidth | 550 MHz |
| Package / Case | Quad Flat Package (HQFP), Surface Mount Device (SMD) |
| Pin Count | 52 |
| Supply Voltage | 5V |
| Integrated Sample-and-Hold | Yes |
| Differential Inputs | Yes |
| Built-In Reference | 1.2V |
Key Features
- High-Speed Sampling Rate of 125 MSPS
- 12-Bit Resolution
- Integrated Sample-and-Hold Circuit
- Differential Inputs
- High Signal-to-Noise Ratio (SNR)
- Low Power Consumption
- Built-In 1.2V Reference
- Excellent Linearity and Stable Performance Over Temperature
- Robust Noise Immunity
- Industrial Grade Component with Proven Track Record in Harsh Environments
Applications
The AD9433BSQZ-125 is ideal for various high-speed data acquisition applications, including:
- Medical Imaging and Diagnostic Equipment
- Radar and Surveillance Systems
- High-Speed Data Acquisition Systems
- Test and Measurement Instruments
- Communication Systems
- Aerospace and Defense Applications
Q & A
- What is the sampling rate of the AD9433BSQZ-125?
The AD9433BSQZ-125 has a sampling rate of 125 MSPS. - What is the resolution of the AD9433BSQZ-125?
The AD9433BSQZ-125 has a resolution of 12 bits. - Does the AD9433BSQZ-125 have an integrated sample-and-hold circuit?
Yes, the AD9433BSQZ-125 includes an integrated sample-and-hold circuit. - What is the analog input bandwidth of the AD9433BSQZ-125?
The analog input bandwidth of the AD9433BSQZ-125 is 550 MHz. - What type of package does the AD9433BSQZ-125 come in?
The AD9433BSQZ-125 comes in a Quad Flat Package (HQFP) and is a Surface Mount Device (SMD). - How many pins does the AD9433BSQZ-125 have?
The AD9433BSQZ-125 has 52 pins. - What is the supply voltage for the AD9433BSQZ-125?
The supply voltage for the AD9433BSQZ-125 is 5V. - Does the AD9433BSQZ-125 have differential inputs?
Yes, the AD9433BSQZ-125 has differential inputs. - Is the AD9433BSQZ-125 suitable for harsh environments?
Yes, the AD9433BSQZ-125 is an industrial grade component with a proven track record in harsh environments. - What are some typical applications of the AD9433BSQZ-125?
The AD9433BSQZ-125 is used in medical imaging, radar and surveillance systems, high-speed data acquisition systems, test and measurement instruments, communication systems, and aerospace and defense applications.
