Overview

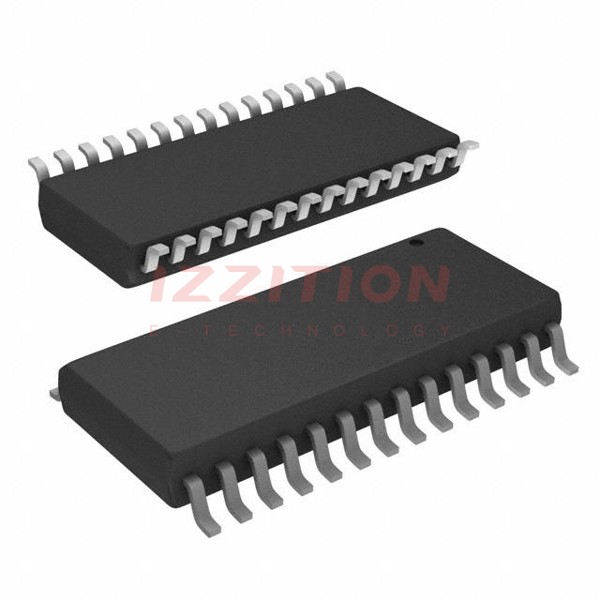

The AD9071BR-REEL is a 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed to provide high-speed and high-accuracy conversion of analog signals to digital data. It is packaged in a 28-lead SOIC (Small Outline Integrated Circuit) package, making it suitable for a variety of applications requiring compact and reliable ADC solutions.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Package/Case | 28-SOIC (0.295", 7.50mm Width) |
| Brand | Analog Devices Inc. |
| Components Classification | Analog to Digital Converters |
Key Features
- High-speed analog-to-digital conversion
- 10-bit resolution for precise data conversion
- Compact 28-lead SOIC package for space-efficient designs
- High accuracy and reliability in signal conversion
Applications
The AD9071BR-REEL is versatile and can be used in various applications, including:
- Data acquisition systems
- Medical imaging and diagnostics
- Industrial control and automation
- Aerospace and defense systems
- High-speed data logging and monitoring
Q & A
- What is the resolution of the AD9071BR-REEL? The AD9071BR-REEL has a resolution of 10 bits.
- What is the package type of the AD9071BR-REEL? The AD9071BR-REEL is packaged in a 28-lead SOIC.
- Who is the manufacturer of the AD9071BR-REEL? The AD9071BR-REEL is manufactured by Analog Devices Inc.
- What are the typical applications of the AD9071BR-REEL? Typical applications include data acquisition systems, medical imaging, industrial control, aerospace, and high-speed data logging.
- Is the AD9071BR-REEL suitable for high-speed applications? Yes, the AD9071BR-REEL is designed for high-speed analog-to-digital conversion.
- What is the width of the SOIC package? The SOIC package has a width of 7.50mm (0.295").
- Where can I find detailed technical specifications for the AD9071BR-REEL? Detailed specifications can be found on the official Analog Devices website or through distributors like Digi-Key and Mouser.
- Is the AD9071BR-REEL available for immediate shipment? Yes, it is available for immediate shipment from various distributors.
- Can the AD9071BR-REEL be used in medical devices? Yes, it can be used in medical imaging and diagnostics due to its high accuracy and reliability.
- What is the classification of the AD9071BR-REEL? The AD9071BR-REEL is classified as an analog-to-digital converter.
