Overview

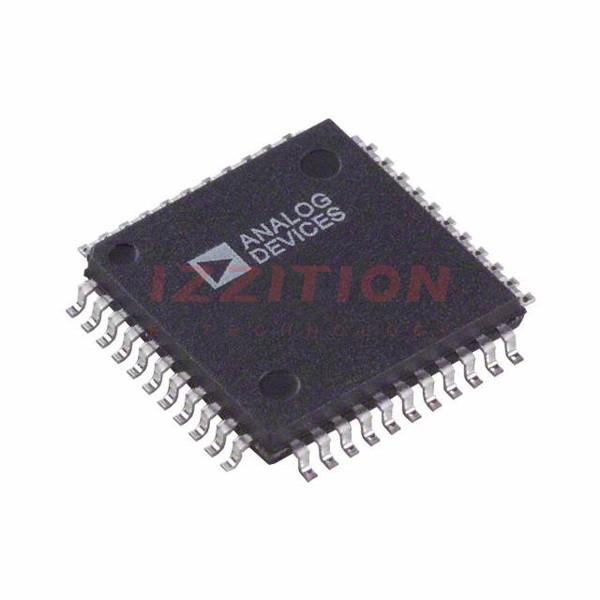

The AD9054ABSTZ-135 is an 8-bit, high-speed analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed for high-performance applications requiring fast conversion rates and high accuracy. The AD9054ABSTZ-135 is packaged in a 44-lead LQFP (Low Profile Quad Flat Package) and operates at a sampling rate of up to 200 MSPS (Mega Samples Per Second), making it suitable for a variety of demanding signal processing tasks.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 8 bits |
| Sampling Rate | Up to 200 MSPS |
| Package Type | 44-lead LQFP |
| Operating Temperature Range | -40°C to +85°C |
| Power Supply | Single 3.3V or 5V supply |
| Interface | Parallel or Serial Output |
Key Features
- High-speed conversion rate of up to 200 MSPS
- 8-bit resolution with high accuracy
- Low power consumption
- Flexible output interface options (parallel or serial)
- Compact 44-lead LQFP packaging
- Operating temperature range from -40°C to +85°C
Applications
The AD9054ABSTZ-135 is suitable for various high-speed data acquisition and signal processing applications, including:
- Medical Imaging
- Radar and Defense Systems
- High-Speed Data Acquisition Systems
- Communications Equipment
- Industrial Control and Automation
Q & A
- What is the resolution of the AD9054ABSTZ-135? The AD9054ABSTZ-135 has an 8-bit resolution.
- What is the maximum sampling rate of the AD9054ABSTZ-135? The maximum sampling rate is up to 200 MSPS.
- What type of package does the AD9054ABSTZ-135 come in? The AD9054ABSTZ-135 is packaged in a 44-lead LQFP.
- What is the operating temperature range of the AD9054ABSTZ-135? The operating temperature range is from -40°C to +85°C.
- What are the power supply options for the AD9054ABSTZ-135? The AD9054ABSTZ-135 can operate on a single 3.3V or 5V supply.
- What output interface options are available for the AD9054ABSTZ-135? The AD9054ABSTZ-135 offers both parallel and serial output interfaces.
- What are some typical applications for the AD9054ABSTZ-135? Typical applications include medical imaging, radar and defense systems, high-speed data acquisition systems, communications equipment, and industrial control and automation.
- Where can I find detailed specifications for the AD9054ABSTZ-135? Detailed specifications can be found in the datasheet available from the manufacturer's website or through authorized distributors.
