Overview

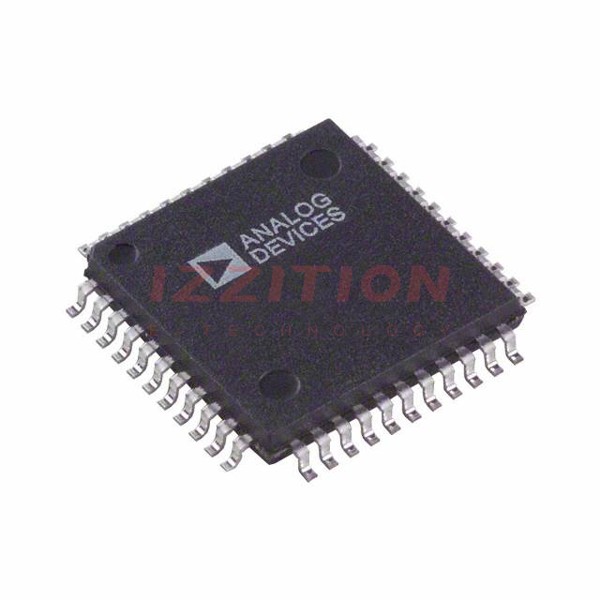

The AD9054ABST-135 is an 8-bit monolithic analog-to-digital converter (ADC) designed and manufactured by Analog Devices Inc. This component is optimized for high-speed, low-power, and compact design, making it ideal for applications requiring high dynamic performance. With a sampling rate of 135 MSPS and a full-power analog bandwidth of 350 MHz, the AD9054ABST-135 is well-suited for various high-speed data acquisition tasks. It operates on a single 5 V power supply and includes an internal 2.5 V reference and track-and-hold circuit, minimizing the need for external components.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 8 | Bits |
| Sampling Rate | 135 MSPS | |
| Analog Bandwidth | 350 MHz | |
| Power Supply Voltage | 5 V | |
| Power Dissipation | 600 - 700 mW | |
| Supply Current | 120 - 140 mA | |
| Operating Temperature | -40°C to +85°C | |
| Package Type | 44-LQFP (10x10) | |
| Data Interface | Parallel | |
| Output Mode | Single or Demultiplexed |
Key Features
- High-speed sampling rate of 135 MSPS
- Full-power analog bandwidth of 350 MHz
- Internal 2.5 V reference and track-and-hold circuit
- Low power consumption: 600 - 700 mW
- Single 5 V power supply operation
- TTL output interface with single or demultiplexed output ports
- Compact 44-lead LQFP surface mount package
- Operates over the full industrial temperature range (-40°C to +85°C)
Applications
- RGB Graphics Processing
- High Resolution Video
- Digital Data Storage Read Channels
- Digital Communications
- Digital Instrumentation
- Medical Imaging
Q & A
- What is the resolution of the AD9054ABST-135?
The AD9054ABST-135 has an 8-bit resolution.
- What is the maximum sampling rate of the AD9054ABST-135?
The maximum sampling rate is 135 MSPS.
- What is the analog bandwidth of the AD9054ABST-135?
The full-power analog bandwidth is 350 MHz.
- What type of power supply does the AD9054ABST-135 require?
The component operates on a single 5 V power supply.
- Does the AD9054ABST-135 have an internal reference?
Yes, it includes an internal 2.5 V reference and track-and-hold circuit.
- What is the power dissipation of the AD9054ABST-135?
The power dissipation ranges from 600 to 700 mW.
- What is the operating temperature range of the AD9054ABST-135?
The component operates over the full industrial temperature range (-40°C to +85°C).
- What type of package does the AD9054ABST-135 come in?
The component is packaged in a 44-lead LQFP surface mount package.
- Can the AD9054ABST-135 output data in demultiplexed mode?
Yes, the AD9054ABST-135 can operate in either single-channel or demultiplexed output modes.
- What are some typical applications of the AD9054ABST-135?
Typical applications include RGB graphics processing, high-resolution video, digital data storage read channels, digital communications, digital instrumentation, and medical imaging.
