Overview

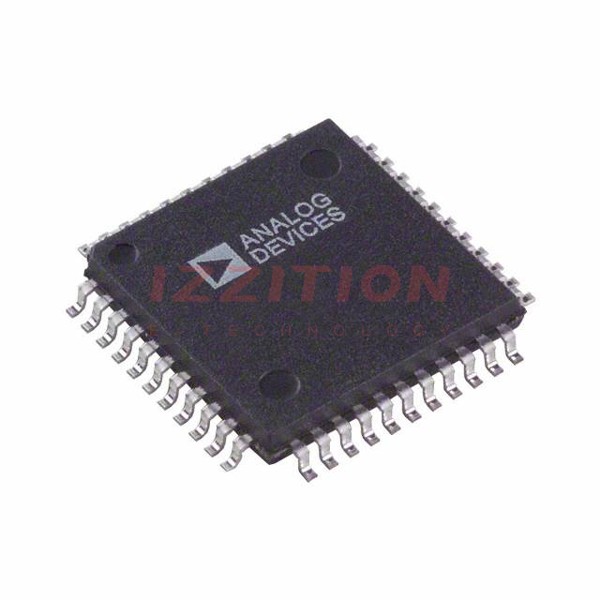

The AD9054ABSTZ-200 is an 8-bit monolithic analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is optimized for high-speed, low-power, small size, and ease of use. It features a 200 MSPS (mega-samples per second) encode rate capability and a full-power analog bandwidth of 350 MHz, making it ideal for applications requiring high dynamic performance. The AD9054A includes an internal 2.5 V reference and track-and-hold circuit, minimizing the need for external components and reducing system cost and power dissipation.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Sample Rate | 200 MSPS |
| Analog Bandwidth | 350 MHz |
| Analog Input Range | 1 V p-p |
| Power Supply | 5 V single supply |
| Power Consumption | 500 mW |
| Output Interface | TTL, CMOS, or positive-ECL logic |
| Output Propagation Delay (tPD) | 5.9 - 8.5 ns |
| Digital Input High Level Current (IIH) | 500 - 625 µA |
| Digital Input Low Level Current (IIL) | 500 - 625 µA |
| Input Capacitance | 3 pF at 25°C |
| Differential Signal Amplitude (VID) | 400 mV |
| High Input Voltage (VIHD) | 1.5 VDD |
| Low Input Voltage (VILD) | 0 VDD - 0.4 VDD |
| Common-Mode Input (VICM) | 1.5 VDD |
| High Output Voltage (VOH) | 2.4 V |
| Low Output Voltage (VOL) | 0.4 V |
Key Features
- High-speed 200 MSPS encode rate capability
- Full-power analog bandwidth of 350 MHz
- Internal 2.5 V reference and track-and-hold circuit
- Low power consumption of 500 mW
- Single 5 V power supply operation
- Support for TTL, CMOS, or positive-ECL logic output interfaces
- Single-ended or differential input compatibility
- No external reference or driver components required for many applications
Applications
- RGB Graphics Processing
- High Resolution Video
- Digital Data Storage Read Channels
- Digital Communications
- Digital Instrumentation
- Medical Imaging
Q & A
- What is the resolution of the AD9054ABSTZ-200?
The AD9054ABSTZ-200 has an 8-bit resolution. - What is the sample rate of the AD9054ABSTZ-200?
The sample rate is 200 MSPS. - What is the analog bandwidth of the AD9054ABSTZ-200?
The analog bandwidth is 350 MHz. - What is the power supply requirement for the AD9054ABSTZ-200?
The component operates on a single 5 V power supply. - How much power does the AD9054ABSTZ-200 consume?
The power consumption is 500 mW. - Does the AD9054ABSTZ-200 require external reference or driver components?
No, for many applications, no external reference or driver components are required. - What types of logic interfaces does the AD9054ABSTZ-200 support?
The component supports TTL, CMOS, or positive-ECL logic output interfaces. - Can the AD9054ABSTZ-200 handle single-ended or differential inputs?
Yes, it can handle both single-ended and differential inputs. - What are some common applications of the AD9054ABSTZ-200?
Common applications include RGB graphics processing, high resolution video, digital data storage read channels, digital communications, digital instrumentation, and medical imaging. - Is the AD9054ABSTZ-200 still in production?
No, the AD9054ABSTZ-200 is obsolete and no longer manufactured.
