Overview

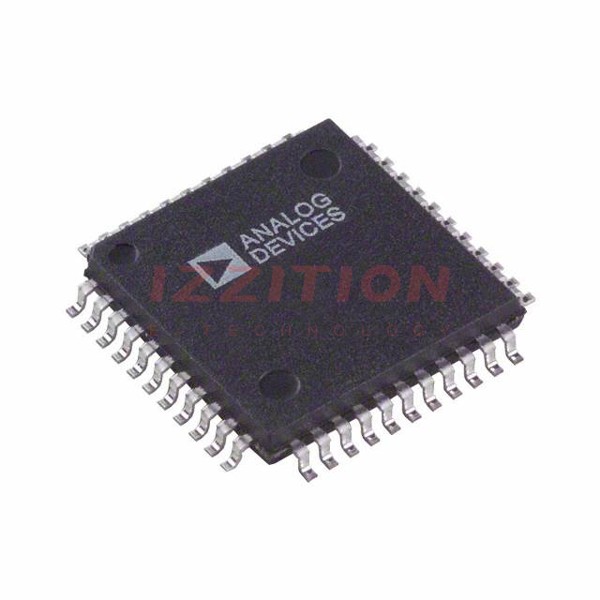

The AD9054ABST-200 is an 8-bit monolithic analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is optimized for high-speed, low-power, small size, and ease of use. It features a 200 MSPS (mega-samples per second) encode rate and a full-power analog bandwidth of 350 MHz, making it ideal for applications requiring high dynamic performance.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 8 bits |
| Conversion Rate | 200 MSPS |
| Analog Bandwidth | 350 MHz |
| Analog Input Range | 1 V p-p |
| Power Supply | Single 5 V |
| Power Consumption | 500 mW |
| Reference Voltage | Internal 2.5 V |
| Output Interface | TTL, CMOS, or positive-ECL |
| Differential Nonlinearity (DNL) Error | ±0.3 LSB |
| Integral Nonlinearity (INL) Error | ±0.3 LSB |
| Signal-to-Noise Ratio (SNR) | 45.5 dB |
| Spurious-Free Dynamic Range (SFDR) | 60 dB |
| Output Format | Two’s Complement |
| Package Type | Quad Flat Pack (QFP) |
Key Features
- High-speed conversion rate of 200 MSPS
- Internal 2.5 V reference and track-and-hold circuit
- Low power consumption of 500 mW
- Single 5 V power supply operation
- Support for TTL, CMOS, or positive-ECL logic levels
- High analog bandwidth of 350 MHz
- 8-bit parallel digital output in Two’s Complement format
- Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) errors of ±0.3 LSB
- Signal-to-Noise Ratio (SNR) of 45.5 dB and Spurious-Free Dynamic Range (SFDR) of 60 dB
Applications
- RGB Graphics Processing
- High Resolution Video
- Digital Data Storage Read Channels
- Digital Communications
- Digital Instrumentation
- Medical Imaging
Q & A
- What is the resolution of the AD9054ABST-200 ADC?
The AD9054ABST-200 has an 8-bit resolution. - What is the conversion rate of the AD9054ABST-200?
The conversion rate is 200 MSPS. - What is the analog bandwidth of the AD9054ABST-200?
The analog bandwidth is 350 MHz. - What type of power supply does the AD9054ABST-200 require?
The AD9054ABST-200 operates on a single 5 V power supply. - What is the power consumption of the AD9054ABST-200?
The power consumption is 500 mW. - Does the AD9054ABST-200 have an internal reference voltage?
Yes, it includes an internal 2.5 V reference voltage. - What types of logic levels does the AD9054ABST-200 support?
The AD9054ABST-200 supports TTL, CMOS, or positive-ECL logic levels. - What is the output format of the AD9054ABST-200?
The output is in Two’s Complement format. - What is the package type of the AD9054ABST-200?
The package type is Quad Flat Pack (QFP). - What are some typical applications of the AD9054ABST-200?
Typical applications include RGB graphics processing, high resolution video, digital data storage read channels, digital communications, digital instrumentation, and medical imaging.
