AD876JR-8-REEL
  • Share:

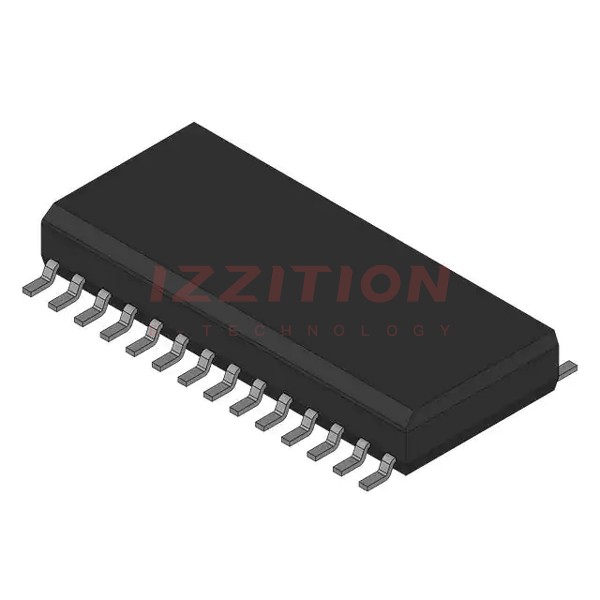

Analog Devices Inc. AD876JR-8-REEL

Manufacturer No:
AD876JR-8-REEL
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Description:
10-BIT ADC PARALLEL, WORD ACCESS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD876JR-8-REEL, manufactured by Analog Devices Inc., is a 10-bit analog-to-digital converter (ADC) designed to convert analog signals into digital signals. This IC is integral in various applications requiring precise and efficient signal conversion. The AD876JR-8-REEL features a pipelined architecture and a sample-and-hold (S/H) configuration, enabling high-speed data conversion. It operates within a digital voltage range of 4.5V to 5.25V and is suitable for use in a temperature range of 0°C to 70°C.

Key Specifications

ParameterValue
ManufacturerAnalog Devices Inc.
Part NumberAD876JR-8-REEL
PackageSOIC-28
Number of Bits10
Number of A/D Converters1
Input TypeSingle Ended
Maximum Number of Inputs1
Data InterfaceParallel
Sampling Rate20M per second
Digital Voltage Range4.5V ~ 5.25V
Operating Temperature Range0°C ~ 70°C
RoHS StatusNot Compliant

Key Features

  • Pipelined architecture for high-speed data conversion.
  • Sample-and-hold (S/H) configuration.
  • 10-bit resolution with a single A/D converter.
  • Supports single-ended input with a maximum of 1 input channel.
  • Parallel data interface for efficient data transfer.
  • High sampling rate of 20M per second.
  • Operates in a digital voltage range of 4.5V to 5.25V.
  • Suitable for use in a temperature range of 0°C to 70°C.

Applications

  • Communication systems.
  • Industrial control systems.
  • Measuring instruments.
  • Consumer electronics.
  • Data acquisition systems.
  • Medical instruments.
  • Audio processing systems.
  • Automotive electronics.

Q & A

  1. What is the primary function of the AD876JR-8-REEL? The primary function of the AD876JR-8-REEL is to convert analog signals into digital signals.
  2. What is the resolution of the AD876JR-8-REEL? The AD876JR-8-REEL has a 10-bit resolution.
  3. How many A/D converters does the AD876JR-8-REEL have? The AD876JR-8-REEL has 1 A/D converter.
  4. What is the sampling rate of the AD876JR-8-REEL? The sampling rate of the AD876JR-8-REEL is 20M per second.
  5. What is the operating temperature range of the AD876JR-8-REEL? The operating temperature range is 0°C to 70°C.
  6. What type of data interface does the AD876JR-8-REEL support? The AD876JR-8-REEL supports a parallel data interface.
  7. Is the AD876JR-8-REEL RoHS compliant? No, the AD876JR-8-REEL is not RoHS compliant.
  8. What are some common applications of the AD876JR-8-REEL? Common applications include communication systems, industrial control, measuring instruments, consumer electronics, data acquisition systems, medical instruments, audio processing, and automotive electronics.
  9. What is the package type of the AD876JR-8-REEL? The package type is SOIC-28.
  10. What is the digital voltage range for the AD876JR-8-REEL? The digital voltage range is 4.5V to 5.25V.

Product Attributes

Number of Bits:10
Sampling Rate (Per Second):20M
Number of Inputs:1
Input Type:Single Ended
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External
Voltage - Supply, Analog:4.5V ~ 5.25V
Voltage - Supply, Digital:4.5V ~ 5.25V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$3.08
226

Please send RFQ , we will respond immediately.
