Overview
The AD7091BCPZ-RL7 is a high-performance, 12-bit, 1 MSPS analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for low power consumption and high accuracy, making it suitable for a variety of applications requiring precise analog-to-digital conversion. The AD7091 features a serial interface and operates from a single 3V supply, enhancing its versatility in different system designs.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 1 MSPS |
| Supply Voltage | 2.7V to 3.3V |
| Operating Temperature Range | -40°C to +125°C |

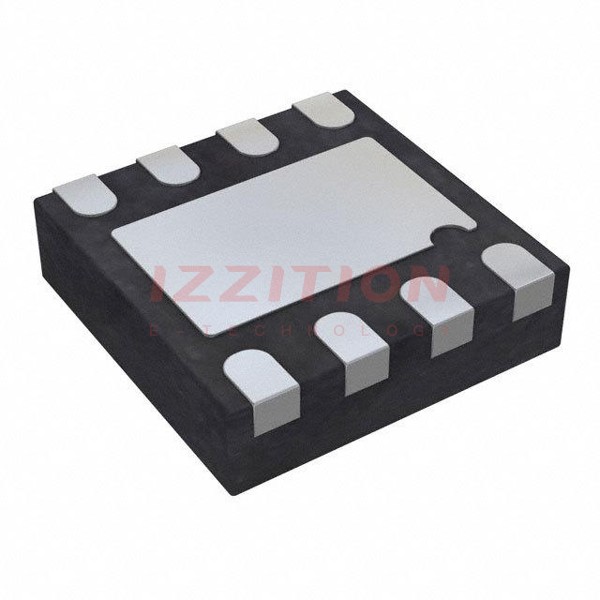

| Package Type | 8-Lead Lead Frame Chip Scale Package (LFCSP_UD) |
| Interface | Serial (SPI-compatible) |
| Power Consumption | Typically 3.3 mA at 1 MSPS |
Key Features
- High accuracy with ±0.5 LSB INL and ±1 LSB DNL
- Low power consumption, typically 3.3 mA at 1 MSPS
- Single 3V supply operation
- SPI-compatible serial interface
- Small 8-lead LFCSP_UD package with exposed pad for thermal management
- Operating temperature range from -40°C to +125°C
Applications
- Industrial automation and control systems
- Medical devices and diagnostic equipment
- Aerospace and defense systems
- Automotive systems, including infotainment and safety systems
- Portable and battery-powered devices requiring low power consumption
Q & A
- What is the resolution of the AD7091BCPZ-RL7?
The AD7091BCPZ-RL7 has a resolution of 12 bits. - What is the maximum sampling rate of the AD7091BCPZ-RL7?
The maximum sampling rate is 1 MSPS. - What is the supply voltage range for the AD7091BCPZ-RL7?
The supply voltage range is from 2.7V to 3.3V. - What type of package does the AD7091BCPZ-RL7 come in?
The AD7091BCPZ-RL7 comes in an 8-Lead Lead Frame Chip Scale Package (LFCSP_UD). - What is the operating temperature range of the AD7091BCPZ-RL7?
The operating temperature range is from -40°C to +125°C. - What type of interface does the AD7091BCPZ-RL7 use?
The AD7091BCPZ-RL7 uses an SPI-compatible serial interface. - How much power does the AD7091BCPZ-RL7 typically consume at 1 MSPS?
The AD7091BCPZ-RL7 typically consumes 3.3 mA at 1 MSPS. - What are some common applications for the AD7091BCPZ-RL7?
Common applications include industrial automation, medical devices, aerospace and defense systems, automotive systems, and portable devices. - Is the AD7091BCPZ-RL7 suitable for high-temperature environments?
Yes, the AD7091BCPZ-RL7 is suitable for high-temperature environments with an operating temperature range from -40°C to +125°C. - Does the AD7091BCPZ-RL7 have any thermal management features?
Yes, the package includes an exposed pad for thermal management.
