Overview
The AD7091BCPZ-RL is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed to offer ultralow power consumption while achieving high throughput rates, making it suitable for a variety of applications requiring efficient and precise analog-to-digital conversion.
The AD7091 operates from a single power supply in the range of 2.09 V to 5.25 V and features an on-chip conversion clock and a high-speed serial interface. It is housed in an 8-lead Lead Frame Chip Scale Package (LFCSP) which provides significant space-saving advantages.
Key Specifications
| Parameter | Specification |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 1 MSPS |
| Power Supply Range | 2.09 V to 5.25 V |
| Power Consumption | Typically 367 μA at 3 V and 1 MSPS |
| Number of Analog Input Channels | 1 |
| Conversion Time | 0.65 μs |

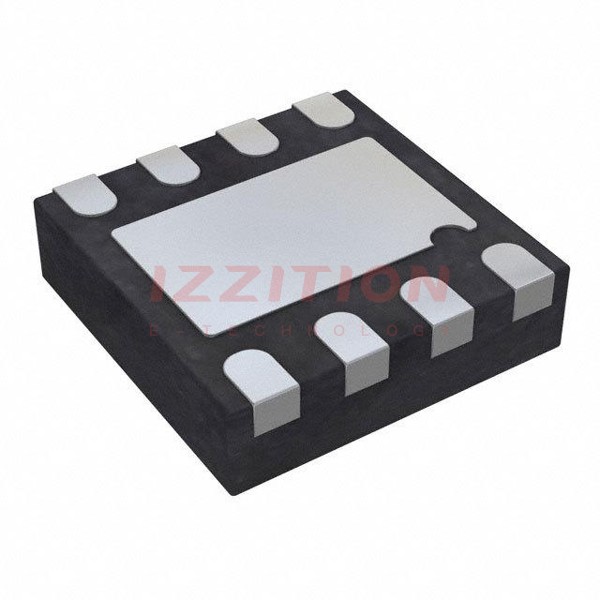

| Package Type | 8-Lead LFCSP (2mm x 2mm with Exposed Pad) |
| Operating Temperature Range | -40°C to +125°C |
| Serial Interface | High-speed SPI/SRL |
Key Features
- Ultralow Power Consumption: The AD7091 is designed to consume very low power, typically 367 μA at 3 V and 1 MSPS, making it ideal for battery-powered devices and low-power applications.
- High Throughput Rate: The ADC achieves a throughput rate of up to 1 MSPS with a 50 MHz SCLK, ensuring fast data conversion and processing.
- Flexible Power/Throughput Rate Management: The power consumption scales with the throughput rate, and a power-down mode is available to reduce average power when the device is not performing conversions.
- Internal Reference and Clock: The reference voltage is derived internally from the power supply, and the conversion clock is generated on-chip, eliminating the need for external components.
- High-Speed Serial Interface: The AD7091 features a high-speed SPI/SRL serial interface for efficient data transfer.
- Compact Package: The 8-lead LFCSP package offers significant space-saving advantages, making it suitable for compact designs.
Applications
- Battery-Powered Devices: The low power consumption makes the AD7091 suitable for battery-powered devices such as portable medical devices, handheld instruments, and other mobile equipment.
- Industrial Automation: The high throughput rate and low power consumption make it ideal for industrial automation applications where real-time data acquisition is critical.
- Medical Devices: The AD7091 can be used in medical devices that require precise and efficient analog-to-digital conversion, such as patient monitoring systems and diagnostic equipment.
- Automotive Systems: The component's ability to operate over a wide temperature range and its low power consumption make it suitable for automotive applications.
- Consumer Electronics: It can be used in various consumer electronics that require efficient and precise analog-to-digital conversion, such as smart home devices and wearable technology.
Q & A
- What is the resolution of the AD7091BCPZ-RL ADC?
The AD7091BCPZ-RL has a resolution of 12 bits.
- What is the sampling rate of the AD7091BCPZ-RL?
The AD7091BCPZ-RL can sample at rates up to 1 MSPS.
- What is the power supply range for the AD7091BCPZ-RL?
The AD7091BCPZ-RL operates from a single power supply in the range of 2.09 V to 5.25 V.
- How much power does the AD7091BCPZ-RL typically consume?
The AD7091BCPZ-RL typically consumes 367 μA at 3 V and 1 MSPS.
- What type of package does the AD7091BCPZ-RL come in?
The AD7091BCPZ-RL is housed in an 8-lead LFCSP package (2mm x 2mm with Exposed Pad).
- Does the AD7091BCPZ-RL require an external reference voltage?
No, the AD7091BCPZ-RL derives its reference voltage internally from the power supply.
- What is the operating temperature range of the AD7091BCPZ-RL?
The AD7091BCPZ-RL operates over a temperature range of -40°C to +125°C.
- What type of serial interface does the AD7091BCPZ-RL use?
The AD7091BCPZ-RL features a high-speed SPI/SRL serial interface.
- Is the AD7091BCPZ-RL RoHS compliant?
- What are some typical applications for the AD7091BCPZ-RL?
The AD7091BCPZ-RL is suitable for battery-powered devices, industrial automation, medical devices, automotive systems, and consumer electronics..
