Overview

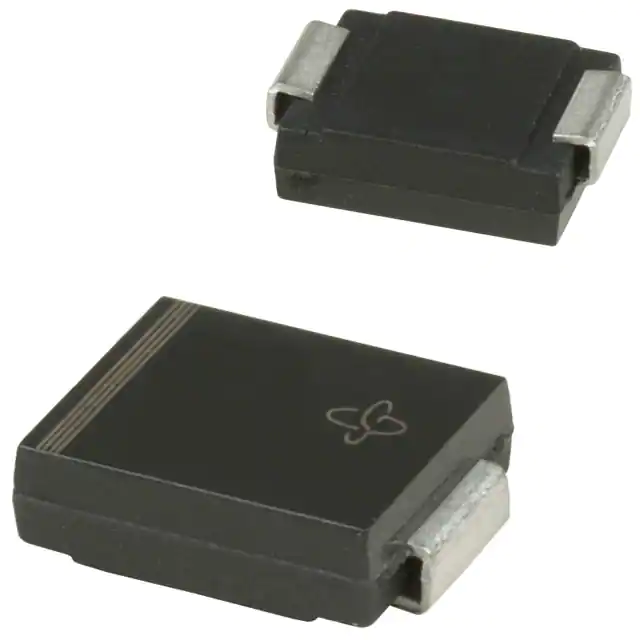

The SM15T100CAHM3/H is a transient voltage suppressor (TVS) diode produced by Vishay General Semiconductor - Diodes Division. This component is part of the SM15T series, designed to provide protection against voltage transients in various electronic systems. The SM15T100CAHM3/H is particularly suited for applications requiring high peak pulse power capability and excellent clamping characteristics.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Peak Power Dissipation (10/1000 μs waveform) | PPPM | 1500 | W |
| Peak Pulse Current (10/1000 μs waveform) | IPPM | 11 | A |
| Reverse Stand-Off Voltage | VWM | 137 | V |
| Maximum Clamping Voltage (10/1000 μs) | VC | 207 | V |
| Power Dissipation on Infinite Heatsink | PD | 6.5 | W |
| Operating Junction and Storage Temperature Range | TJ, TSTG | -65 to +150 | °C |
| Package | SMC (DO-214AB) |
Key Features
- Low profile package ideal for automated placement.
- Glass passivated chip junction for reliability.
- Available in unidirectional and bidirectional configurations.
- 1500 W peak pulse power capability with a 10/1000 μs waveform.
- Excellent clamping capability to protect against voltage transients.
- Low inductance design.
- Meets MSL level 1, per J-STD-020, with a maximum peak of 260 °C.
- AEC-Q101 qualified for automotive applications.
Applications
The SM15T100CAHM3/H is used in sensitive electronics to protect against voltage transients induced by inductive load switching and lightning. It is suitable for various industries including:
- Consumer electronics
- Computer systems
- Industrial equipment
- Automotive systems
- Telecommunication devices
Q & A
- What is the peak power dissipation of the SM15T100CAHM3/H?
The peak power dissipation is 1500 W with a 10/1000 μs waveform.
- What is the maximum clamping voltage of the SM15T100CAHM3/H?
The maximum clamping voltage is 207 V at 10/1000 μs.
- What is the reverse stand-off voltage of the SM15T100CAHM3/H?
The reverse stand-off voltage is 137 V.
- What is the operating junction and storage temperature range of the SM15T100CAHM3/H?
The operating junction and storage temperature range is -65 to +150 °C.
- Is the SM15T100CAHM3/H AEC-Q101 qualified?
- What package type is the SM15T100CAHM3/H available in?
- What are the typical applications of the SM15T100CAHM3/H?
- What is the power dissipation on an infinite heatsink for the SM15T100CAHM3/H?
- Does the SM15T100CAHM3/H meet any specific standards for moisture sensitivity?
- What is the peak pulse current of the SM15T100CAHM3/H?
