TLP152(E
  • Share:

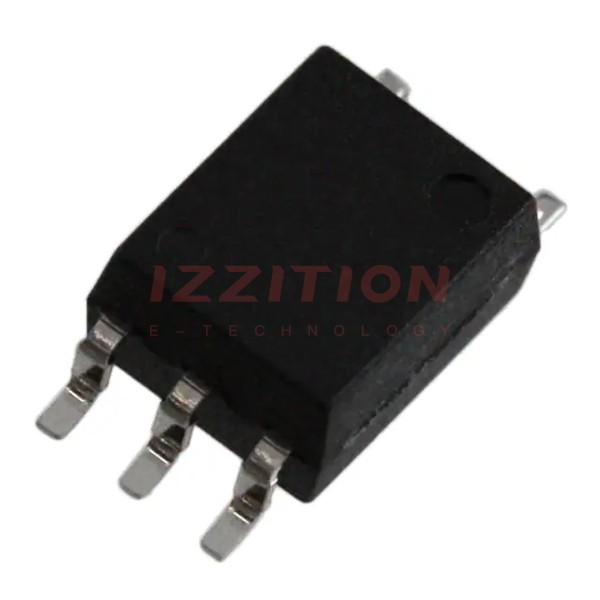

Toshiba Semiconductor and Storage TLP152(E

Manufacturer No:
TLP152(E
Manufacturer:
Toshiba Semiconductor and Storage
Package:
Tube
Description:
X36 PB-F PHOTOCOUPLER IGBT/MOSFE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TLP152(E, produced by Toshiba Semiconductor and Storage, is a logic output optocoupler designed for high-performance applications requiring electrical isolation. This component is particularly suited for driving IGBTs and other power devices in various industrial and consumer electronics. It features a totem-pole output interface, ensuring robust and reliable signal transmission.

Key Specifications

Parameter Value Unit
Number of Circuits 1 -
Output Interface Totem-pole (BUF) -
Package 6-SOIC (0.179, 4.55mm Width), 5 Leads -
Current - DC Forward (If) (Max) 15 mA
Propagation Delay tpLH / tpHL (Max) 170ns / 190ns ns
Rise / Fall Time (Typ) 18ns / 22ns ns
Voltage - Output Supply 10V ~ 30V V
Common Mode Transient Immunity (Min) 3750 Vrms
Moisture Sensitivity Level (MSL) 1 (Unlimited) -
RoHS Status RoHS Compliant -

Key Features

  • High Isolation Voltage: The TLP152(E offers a high common mode transient immunity of 3750 Vrms, ensuring reliable operation in noisy environments.
  • Fast Switching Times: With rise and fall times of 18ns and 22ns respectively, this optocoupler is suitable for high-speed applications.
  • Totem-Pole Output: The totem-pole output interface provides robust and reliable signal transmission, making it ideal for driving IGBTs and other power devices.
  • Wide Operating Voltage Range: The component can operate within a voltage range of 10V to 30V, making it versatile for various applications.
  • RoHS Compliance: The TLP152(E is RoHS compliant, ensuring it meets environmental standards for hazardous substance reduction.

Applications

  • Induction Cooktops: The TLP152(E is used in induction cooktops due to its high isolation voltage and fast switching times.
  • Inverters: It is suitable for inverter applications, including PV inverters, where reliable and fast signal transmission is critical.
  • Power Devices: The component is used for driving IGBTs and other power devices in various industrial and consumer electronics.

Q & A

  1. What is the primary function of the TLP152(E)?

    The primary function of the TLP152(E is to act as a logic output optocoupler, particularly for driving IGBTs and other power devices.

  2. What is the package type of the TLP152(E)?

    The TLP152(E comes in a 6-SOIC package with 5 leads.

  3. What is the maximum DC forward current for the TLP152(E)?

    The maximum DC forward current for the TLP152(E is 15 mA.

  4. What is the propagation delay for the TLP152(E)?

    The propagation delay for the TLP152(E is 170ns (tpLH) and 190ns (tpHL).

  5. What is the common mode transient immunity of the TLP152(E)?

    The common mode transient immunity of the TLP152(E is 3750 Vrms.

  6. Is the TLP152(E RoHS compliant?

    Yes, the TLP152(E is RoHS compliant.

  7. What are some typical applications of the TLP152(E)?

    Typical applications include induction cooktops, inverters, and driving IGBTs and other power devices.

  8. What is the output interface type of the TLP152(E)?

    The output interface type of the TLP152(E is totem-pole (BUF).

  9. What is the moisture sensitivity level (MSL) of the TLP152(E)?

    The moisture sensitivity level (MSL) of the TLP152(E is 1 (Unlimited).

  10. What is the operating voltage range for the TLP152(E)?

    The operating voltage range for the TLP152(E is 10V to 30V.

Product Attributes

Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):20kV/µs
Propagation Delay tpLH / tpHL (Max):170ns, 190ns
Pulse Width Distortion (Max):50ns
Rise / Fall Time (Typ):18ns, 22ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.57V
Current - DC Forward (If) (Max):15 mA
Voltage - Output Supply:10V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:6-SO, 5 Lead
Approval Agency:CQC, cUL, UL
0 Remaining View Similar

In Stock

$0.59
322

Please send RFQ , we will respond immediately.
