UCC28740QDRQ1
  • Share:

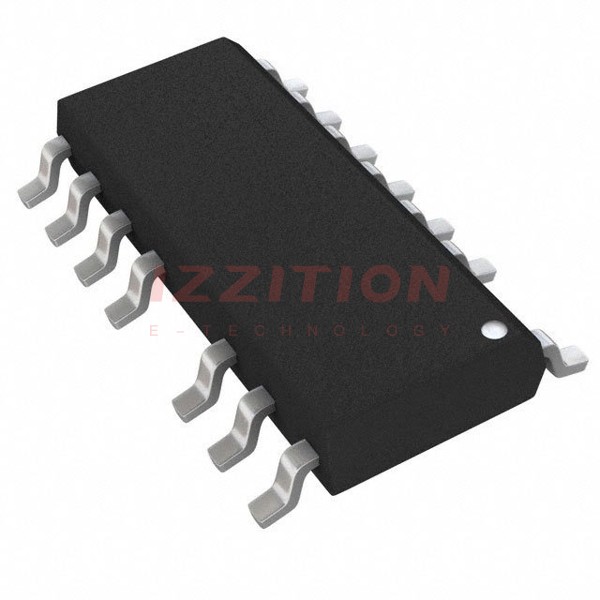

Texas Instruments UCC28740QDRQ1

Manufacturer No:
UCC28740QDRQ1
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC OFFLINE SWITCH FLYBACK 7SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The UCC28740-Q1 is an ultra-low standby, flyback controller designed by Texas Instruments for automotive applications. This device is AEC-Q100 qualified, ensuring it meets stringent automotive standards with a temperature grade 1 rating of -40°C to +125°C. It features an internal 700-V startup switch, dynamically controlled operating states, and a tailored modulation profile to achieve ultra-low standby power without compromising startup time or output transient response. The controller uses an optical coupler for feedback, providing fast transient response to large-load steps and operates in discontinuous conduction mode (DCM) with valley-switching to minimize switching losses.

Key Specifications

Parameter Min Typ Max Unit
Device Temperature Grade -40 +125 °C
HBM Classification Level ±2 kV
CDM Classification Level ±750 V
No-Load Power Capability <10 mW
Voltage Regulation Accuracy ±1%
Current Regulation Accuracy ±5%
Startup Switch Voltage 700 V
Maximum Switching Frequency 100 kHz
Minimum Switching Frequency 170 Hz
Package Type SOIC-7
Body Size (Nominal) 4.90 mm × 3.91 mm

Key Features

  • Qualified for automotive applications with AEC-Q100 qualification.
  • Functional Safety-Capable with documentation available to aid functional safety system design.
  • Less than 10-mW no-load power capability.
  • Enables ±1% voltage regulation and ±5% current regulation across line and load.
  • Internal 700-V startup switch.
  • Maximum switching frequency of 100 kHz for high-power-density charger designs.
  • Resonant-ring valley-switching operation for highest overall efficiency.
  • Frequency dithering to ease EMI compliance.
  • Clamped gate-drive output for MOSFET.
  • Overvoltage, low-line, and overcurrent protection functions.
  • Support for custom design using the WEBENCH Power Designer.

Applications

  • Ultra-low standby power flyback with integrated HV startup and optocoupler feedback.
  • Traction inverter HV to LV backup supply.
  • HVAC compressor HV isolated power supply.
  • PTC heater HV isolated power supply.

Q & A

  1. What is the temperature range for the UCC28740-Q1?

    The device operates within a temperature range of -40°C to +125°C.

  2. What is the maximum switching frequency of the UCC28740-Q1?

    The maximum switching frequency is 100 kHz.

  3. What type of switching mode does the UCC28740-Q1 operate in?

    The controller operates in discontinuous conduction mode (DCM) with valley-switching.

  4. What is the no-load power capability of the UCC28740-Q1?

    The device has a no-load power capability of less than 10 mW.

  5. Does the UCC28740-Q1 have built-in protection features?

    Yes, it includes overvoltage, low-line, and overcurrent protection functions.

  6. How does the UCC28740-Q1 achieve high efficiency?

    The device uses resonant-ring valley-switching operation and modulation of switching frequency and primary current-peak amplitude to achieve high efficiency.

  7. What is the purpose of the internal 700-V startup switch?

    The internal 700-V startup switch provides fast charging of the VDD capacitor during startup.

  8. Is the UCC28740-Q1 suitable for automotive applications?

    Yes, it is qualified for automotive applications and meets AEC-Q100 standards.

  9. Can the UCC28740-Q1 be used for functional safety applications?

    Yes, it is Functional Safety-Capable with available documentation to aid in functional safety system design.

  10. How can I design a custom power supply using the UCC28740-Q1?

    You can create a custom design using the UCC28740-Q1 with the WEBENCH Power Designer.

Product Attributes

Output Isolation:Isolated
Internal Switch(s):No
Voltage - Breakdown:-
Topology:Flyback
Voltage - Start Up:21 V
Voltage - Supply (Vcc/Vdd):9V ~ 35V
Duty Cycle:-
Frequency - Switching:170Hz ~ 100kHz
Power (Watts):-
Fault Protection:Current Limiting, Over Voltage
Control Features:-
Operating Temperature:-40°C ~ 125°C (TJ)
Package / Case:8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package:7-SOIC
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$1.70
201

Please send RFQ , we will respond immediately.
