Overview
The TXS0104ERGYR is a 4-bit bidirectional voltage-level translator produced by Texas Instruments. This component is designed for open-drain and push-pull applications, allowing for low-voltage bidirectional translation between various voltage nodes such as 1.8 V, 2.5 V, 3.3 V, and 5 V. It features two separate configurable power-supply rails, with the A port tracking VCCA (1.65 V to 3.6 V) and the B port tracking VCCB (2.3 V to 5.5 V). The device does not require a direction-control signal and ensures that all outputs are in a high-impedance state when the output-enable (OE) input is low.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|

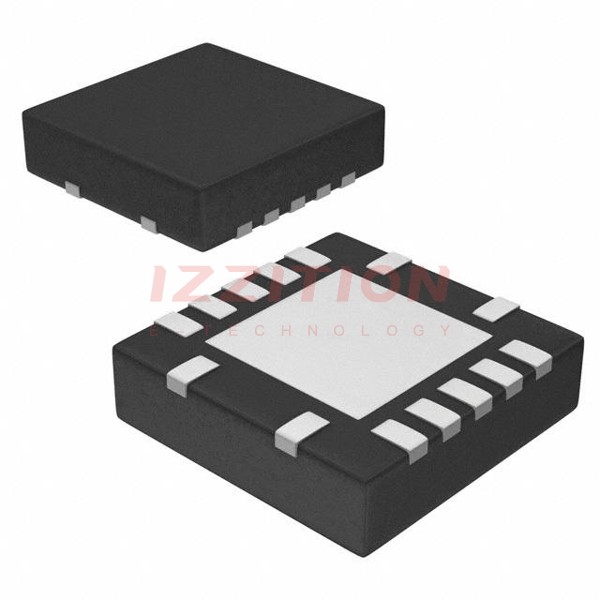

| Package | VQFN (RGY) | - |
| Pins | 14 | - |
| Operating Temperature Range | -40 to 85 | °C |
| Supply Voltage (VCCA) | 1.65 to 3.6 | V |
| Supply Voltage (VCCB) | 2.3 to 5.5 | V |
| Maximum Data Rate (Push-Pull) | 24 Mbps | - |
| Maximum Data Rate (Open Drain) | 2 Mbps | - |
| ESD Protection (A Port) | 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model | - |
| ESD Protection (B Port) | 15-kV Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model | - |
| Latch-Up Performance | Exceeds 100 mA per JESD 78, Class II | - |
Key Features
- No direction-control signal needed.
- Maximum data rates: 24 Mbps (push-pull) and 2 Mbps (open drain).
- Available in the Texas Instruments NanoFree™ package.
- No power-supply sequencing required – VCCA or VCCB can be ramped first.
- Latch-up performance exceeds 100 mA per JESD 78, Class II.
- ESD protection exceeds JESD 22 standards, including ±8-kV contact discharge and ±10-kV air-gap discharge on the B port.
Applications
The TXS0104ERGYR is suitable for various applications requiring level translation between different voltage nodes. These include:
- Handsets
- Smartphones
- Tablets
- Desktop PCs
- Level-translation applications where devices or systems operate at different interface voltages.
Q & A
- What is the TXS0104ERGYR? The TXS0104ERGYR is a 4-bit bidirectional voltage-level translator for open-drain and push-pull applications.
- What are the supply voltage ranges for VCCA and VCCB? VCCA accepts any supply voltage from 1.65 V to 3.6 V, and VCCB accepts any supply voltage from 2.3 V to 5.5 V.
- What are the maximum data rates for push-pull and open-drain operations? The maximum data rates are 24 Mbps for push-pull and 2 Mbps for open-drain operations.
- Does the TXS0104ERGYR require a direction-control signal? No, the TXS0104ERGYR does not require a direction-control signal.
- What is the operating temperature range of the TXS0104ERGYR? The operating temperature range is -40°C to 85°C.
- What type of ESD protection does the TXS0104ERGYR offer? The TXS0104ERGYR offers ESD protection exceeding JESD 22 standards, including ±8-kV contact discharge and ±10-kV air-gap discharge on the B port.
- How should the OE input be managed during power-up or power-down? The OE input should be tied to GND through a pull-down resistor to ensure the high-impedance state during power-up or power-down.
- What determines the minimum value of the pull-down resistor for the OE input? The minimum value of the resistor is determined by the current-sourcing capability of the driver.
- In what types of applications can the TXS0104ERGYR be used? The TXS0104ERGYR can be used in level-translation applications, including handsets, smartphones, tablets, and desktop PCs.
- Is power-supply sequencing required for the TXS0104ERGYR? No, power-supply sequencing is not required; VCCA or VCCB can be ramped first.
