Overview

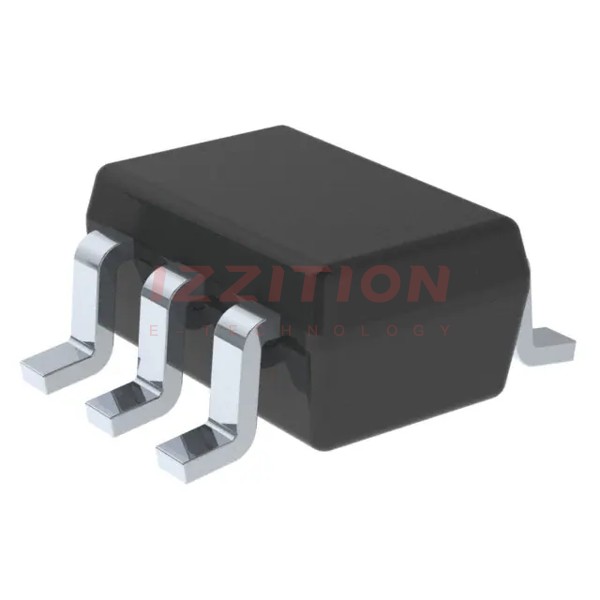

The Texas Instruments TS5A9411DCKR is a high-performance, single-pole double-throw (SPDT) analog switch designed for a wide range of applications. This device operates from a single supply voltage ranging from 2.25 V to 5.5 V, making it versatile for various voltage nodes. The TS5A9411DCKR is packaged in a 6-pin SC-70 surface mount package, which is compact and suitable for space-constrained designs. It features low ON-state resistance, low power consumption, and TTL- and CMOS-compatible control inputs, making it an excellent choice for analog signal switching in various electronic systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Brand | Texas Instruments | |
| Pin Count | 6 | |
| Power Supply Type | Single | |
| Mounting Type | Surface Mount | |
| Package Type | SC-70 | |
| Input Signal Type | Differential | |
| Output Signal Type | Differential | |
| Dimensions | 2.15 x 1.4 x 1 mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Number of Channels per Chip | 1 | |
| Supply Voltage (Min) | 2.25 V | |
| Supply Voltage (Max) | 5.5 V | |
| ON-State Resistance (Max) | 10 Ω | |
| Switch-on Time (Max) | 20 ns | |
| Switch-off Time (Max) | 9.5 ns | |
| Break-Before-Make Time | 1 ns |
Key Features
- Low ON-state resistance (maximum 10 Ω at VCC = 5 V)
- Low power consumption
- TTL- and CMOS-compatible control input
- Low input and output capacitance
- Excellent ON-state resistance matching
- Low total harmonic distortion
- Break-before-make switching feature
- ESD performance tested per JESD 22 (2000-V Human-Body Model and 1000-V Charged-Device Model)
- Control inputs are 5.5-V tolerant
Applications
- Cell phones
- Communication systems
- Portable test equipment
- Battery-operated systems
- Sample-and-hold circuits
Q & A
- What is the operating voltage range of the TS5A9411DCKR? The TS5A9411DCKR operates from a single supply voltage ranging from 2.25 V to 5.5 V.
- What is the package type of the TS5A9411DCKR? The TS5A9411DCKR is packaged in a 6-pin SC-70 surface mount package.
- What is the maximum ON-state resistance of the TS5A9411DCKR? The maximum ON-state resistance is 10 Ω at VCC = 5 V.
- Does the TS5A9411DCKR support TTL and CMOS control inputs? Yes, the TS5A9411DCKR has TTL- and CMOS-compatible control inputs.
- What is the break-before-make time of the TS5A9411DCKR? The break-before-make time is 1 ns.
- What are the minimum and maximum operating temperatures of the TS5A9411DCKR? The minimum operating temperature is -40 °C, and the maximum operating temperature is +85 °C.
- Is the TS5A9411DCKR ESD compliant? Yes, the TS5A9411DCKR has been tested for ESD performance per JESD 22.
- What are some common applications of the TS5A9411DCKR? Common applications include cell phones, communication systems, portable test equipment, battery-operated systems, and sample-and-hold circuits.
- What is the switch-on time of the TS5A9411DCKR? The switch-on time is a maximum of 20 ns.
- What is the switch-off time of the TS5A9411DCKR? The switch-off time is a maximum of 9.5 ns.
