Overview

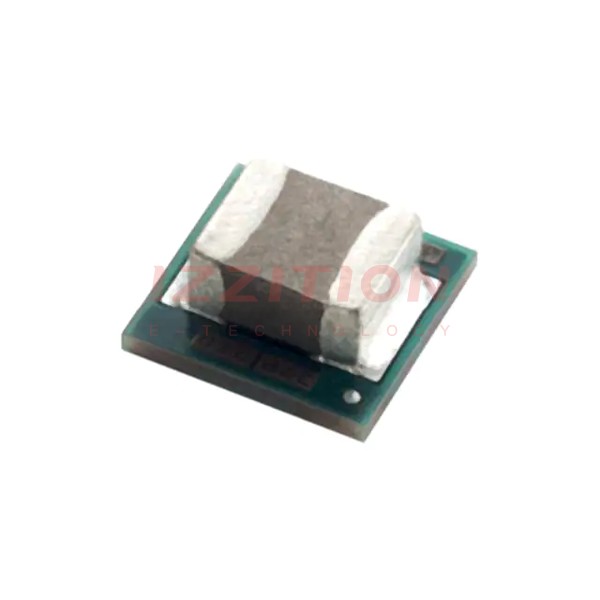

The TPS82150SILR is a 17-V input, 1-A synchronous step-down converter MicroSiP™ power module produced by Texas Instruments. This module is optimized for small solution size and high efficiency, integrating a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The device operates in PWM mode with a nominal switching frequency of 2.0 MHz and automatically enters Power Save Mode at light load currents, ensuring high efficiency over the entire load current range. The TPS82150SILR features the DCS-Control™ topology, which combines the advantages of hysteretic and voltage mode control, providing excellent load transient performance and accurate output voltage regulation.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Input Voltage Range | 3.0 | - | 17 | V |
| Continuous Output Current | - | 1 | - | A |
| Output Voltage Range | 0.9 | - | 6 | V |
| Quiescent Current (No Load) | - | 20 | 35 | µA |
| Switching Frequency | - | 2.0 | - | MHz |
| Operating Temperature Range | -40 | - | 125 | °C |
| Package Dimensions | - | 3.0 mm x 2.8 mm x 1.5 mm | - | - |
Key Features
- DCS-Control™ topology for excellent load transient performance and accurate output voltage regulation
- Power Save Mode for light load efficiency with typically 20-µA quiescent current
- 100% duty cycle for lowest dropout
- Power Good output
- Programmable soft startup with tracking
- Thermal shutdown protection
- Pin to pin compatible with TPS82130 and TPS82140
- Compact 3.0-mm x 2.8-mm x 1.5-mm MicroSiP™ package
- Suitable for automated assembly by standard surface mount equipment
- Create a custom design using the WEBENCH® Power Designer
Applications
- Industrial applications
- Telecom and networking applications
- Solid State Drives
- Inverting power supply
Q & A
- What is the input voltage range of the TPS82150SILR?
The input voltage range is from 3.0 V to 17 V.
- What is the continuous output current of the TPS82150SILR?
The continuous output current is 1 A.
- What is the switching frequency of the TPS82150SILR?
The nominal switching frequency is 2.0 MHz.
- What is the quiescent current in Power Save Mode?
The quiescent current in Power Save Mode is typically 20 µA.
- What is the operating temperature range of the TPS82150SILR?
The operating temperature range is from -40°C to 125°C.
- What is the package size of the TPS82150SILR?
The package dimensions are 3.0 mm x 2.8 mm x 1.5 mm.
- Does the TPS82150SILR support programmable soft startup?
Yes, it supports programmable soft startup with tracking.
- Is the TPS82150SILR compatible with other Texas Instruments models?
Yes, it is pin to pin compatible with TPS82130 and TPS82140.
- What is the topology used in the TPS82150SILR?
The device uses the DCS-Control™ topology.
- Does the TPS82150SILR have thermal shutdown protection?
Yes, it has thermal shutdown protection.
