TPS7A8500ARGRR
  • Share:

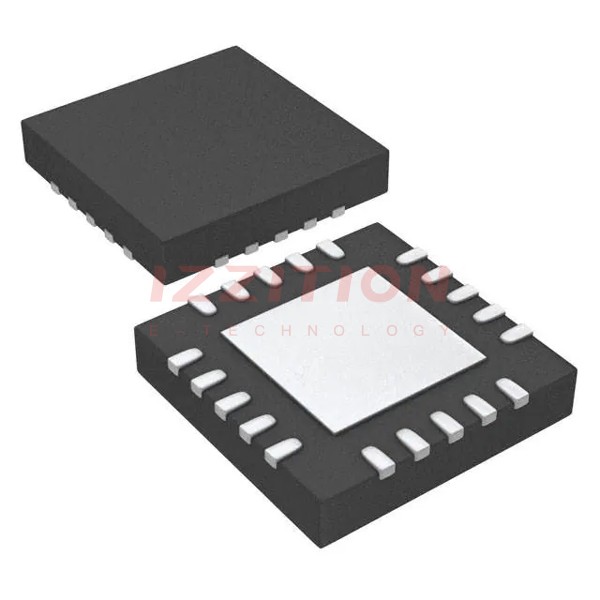

Texas Instruments TPS7A8500ARGRR

Manufacturer No:
TPS7A8500ARGRR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC REG LINEAR POS ADJ 4A 20VQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TPS7A85A, specifically the TPS7A8500ARGRR model from Texas Instruments, is a high-performance, low-noise, ultra-low-dropout linear regulator (LDO) designed to meet the demands of various noise-sensitive applications. This device is capable of sourcing up to 4 A with a maximum dropout voltage of 240 mV, making it ideal for powering high-speed communications, video, medical, and test and measurement equipment. The TPS7A85A features high accuracy, excellent transient performance, and adjustable soft-start capabilities, ensuring optimal system performance in low-input voltage, low-output (LILO) voltage conditions.

Key Specifications

Parameter Value Unit
Output Current 4 A
Maximum Dropout Voltage 240 mV
Accuracy Over Line, Load, and Temperature 0.75% (Maximum)
Output Voltage Noise 4.4 µV RMS at 0.8 V, 7.7 µV RMS at 5.1 V
Input Voltage Range 1.1 V to 6.5 V (with BIAS), 1.4 V to 6.5 V (without BIAS)
Output Voltage Range 0.8 V to 3.95 V (pin-programmable), 0.8 V to 5.1 V (adjustable)
Power-Supply Rejection Ratio (PSRR) 40 dB at 500 kHz
Package 20-Pin VQFN (RGR)
Operating Temperature Range -40°C to 125°C

Key Features

  • Low dropout voltage: 240 mV maximum at 4 A.
  • High accuracy: 0.75% over line, load, and temperature with BIAS.
  • Low noise: 4.4 µV RMS at 0.8 V output.
  • ANY-OUT™ programmable output voltage: 0.8 V to 3.95 V pin-programmable, 0.8 V to 5.1 V adjustable using an external resistor divider.
  • High PSRR: Greater than 40 dB at 500 kHz.
  • Excellent load transient response and adjustable soft-start in-rush control.
  • Open-drain power-good (PG) output.
  • Stable with a 47-µF or larger ceramic output capacitor.

Applications

  • Digital loads: SerDes, FPGAs, DSPs, and ASICs requiring low-input voltage, low-output (LILO) voltage operation.
  • Instrumentation, medical, and audio applications.
  • High-speed analog circuits: VCO, ADC, DAC, LVDS, and RF components.
  • Imaging: CMOS sensors and video ASICs.
  • Test and measurement systems.

Q & A

  1. What is the maximum output current of the TPS7A85A?

    The TPS7A85A can source up to 4 A of output current.

  2. What is the maximum dropout voltage of the TPS7A85A?

    The maximum dropout voltage is 240 mV.

  3. What is the accuracy of the TPS7A85A over line, load, and temperature?

    The accuracy is 0.75% maximum over line, load, and temperature with BIAS).

  4. What is the output voltage noise of the TPS7A85A?

    The output voltage noise is 4.4 µV RMS at 0.8 V output and 7.7 µV RMS at 5.1 V output).

  5. What is the input voltage range of the TPS7A85A?

    The input voltage range is 1.1 V to 6.5 V with BIAS and 1.4 V to 6.5 V without BIAS).

  6. How can the output voltage of the TPS7A85A be programmed?

    The output voltage can be programmed from 0.8 V to 3.95 V using the ANY-OUT™ feature and up to 5.1 V using an external resistor divider).

  7. What is the PSRR of the TPS7A85A?

    The PSRR is greater than 40 dB at 500 kHz).

  8. Does the TPS7A85A have a power-good (PG) output?

    Yes, the TPS7A85A has an open-drain power-good (PG) output).

  9. What type of capacitors are recommended for the output of the TPS7A85A?

    A 47-µF or larger ceramic output capacitor is recommended).

  10. What are some common applications of the TPS7A85A?

    Common applications include digital loads, instrumentation, medical and audio, high-speed analog circuits, imaging, and test and measurement systems).

Product Attributes

Output Configuration:Positive
Output Type:Adjustable/Programmable
Number of Regulators:1
Voltage - Input (Max):6.5V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):5.1V
Voltage Dropout (Max):0.5V @ 4A
Current - Output:4A
Current - Quiescent (Iq):4 mA
Current - Supply (Max):6 mA
PSRR:42dB ~ 25dB (10kHz ~ 500kHz)
Control Features:Enable, Power Good, Soft Start
Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:20-VFQFN Exposed Pad
Supplier Device Package:20-VQFN (3.5x3.5)
0 Remaining View Similar

In Stock

$7.38
27

Please send RFQ , we will respond immediately.

Same Series
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200V5S
DD15S200V5S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20J0S/AA
DD15S20J0S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S20000/AA
DD26S20000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JV3S
DD15S20JV3S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20JV5S/AA
DD15S20JV5S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S200TX
DD26S200TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200T0/AA
DD26S200T0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S10HE20/AA
DD26S10HE20/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S2S0T2X/AA
DD26S2S0T2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V50/AA
DD26S200V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number TPS7A8500ARGRR TPS7A8500ARGRT TPS7A8500RGRR TPS7A8300ARGRR TPS7A8400ARGRR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active
Output Configuration Positive Positive Positive Positive Positive
Output Type Adjustable/Programmable Adjustable/Programmable Adjustable/Programmable Adjustable/Programmable Adjustable/Programmable
Number of Regulators 1 1 1 1 1
Voltage - Input (Max) 6.5V 6.5V 6.5V 6.5V 6.5V
Voltage - Output (Min/Fixed) 0.8V 0.8V 0.8V 0.8V 0.8V
Voltage - Output (Max) 5.1V 5.1V 5V 5.2V 5.15V
Voltage Dropout (Max) 0.5V @ 4A 0.5V @ 4A 0.5V @ 4A 0.3V @ 2A 0.45V @ 3A
Current - Output 4A 4A 4A 2A 3A
Current - Quiescent (Iq) 4 mA 4 mA 4 mA 4 mA 3 mA
Current - Supply (Max) 6 mA 6 mA 6 mA 5 mA 5.5 mA
PSRR 42dB ~ 25dB (10kHz ~ 500kHz) 42dB ~ 25dB (10kHz ~ 500kHz) 42dB ~ 25dB (10kHz ~ 500kHz) 42dB ~ 25dB (10kHz ~ 500kHz) 42dB ~ 25dB (10kHz ~ 500kHz)
Control Features Enable, Power Good, Soft Start Enable, Power Good, Soft Start Enable, Power Good, Soft Start Enable, Power Good, Soft Start Enable, Power Good, Soft Start
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad
Supplier Device Package 20-VQFN (3.5x3.5) 20-VQFN (3.5x3.5) 20-VQFN (3.5x3.5) 20-VQFN (3.5x3.5) 20-VQFN (3.5x3.5)
