Overview
The TPD6E05U06RVZR from Texas Instruments is a member of the TPDxE05U06 family, which consists of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes. These devices are designed to provide robust protection against ESD events and other transient voltages, making them ideal for high-speed signal lines. The TPD6E05U06RVZR specifically offers six channels of protection, making it suitable for a variety of high-speed interfaces.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Channels | 6 | |

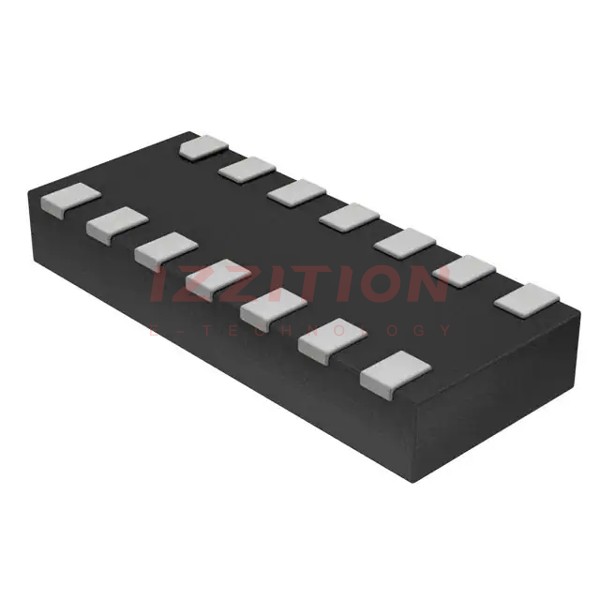

| Package Type | USON14 | |
| ESD Protection - IEC 61000-4-2 | ±12kV (contact discharge), ±15kV (air gap discharge) | V |
| ESD Protection - IEC 61000-4-4 | 80A (5/50ns) | A |
| Surge Protection - IEC 61000-4-5 | 2.5A (8/20µs), 40W | A, W |
| DC Breakdown Voltage | 6.5V (minimum) | V |
| Leakage Current | 10nA (maximum) | A |
| Input Capacitance | 0.42pF to 0.5pF (typical) | pF |
| Operating Temperature Range | -40°C to +125°C | °C |
| Clamping Voltage | 14V (IPP = 5A) | V |
Key Features
- Ultra-Low Capacitance: The TPD6E05U06RVZR features ultra-low input capacitance (0.42pF to 0.5pF typical), making it an excellent choice for protecting high-speed signal lines.
- Robust ESD Protection: Compliant with IEC 61000-4-2 level 4 ESD protection, providing ±12kV contact discharge and ±15kV air gap discharge protection.
- Fast Transient and Surge Protection: Meets IEC 61000-4-4 and IEC 61000-4-5 standards, offering 80A (5/50ns) fast transient and 2.5A (8/20µs) surge protection.
- Low Leakage Current: Ultra-low leakage current of 10nA (maximum) at 2.5V bias.
- Low ESD Clamping Voltage: Clamps ESD events to 10V (IPP = 1A) and 14V (IPP = 5A).
- Industrial Temperature Range: Operates over an industrial temperature range of -40°C to +125°C.
- Easy Flow-Through Routing: The USON14 package offers easy flow-through routing, simplifying the addition of ESD protection to existing layouts.
Applications
The TPD6E05U06RVZR is designed to protect high-speed signal lines in various applications, including:
- HDMI 1.4b and HDMI 2.0 interfaces
- USB 3.0 interfaces
- MHL (Mobile High-Definition Link) interfaces
- LVDS (Low-Voltage Differential Signaling) interfaces
- DisplayPort interfaces
- PCI-Express® interfaces
- eSATA interfaces
- V-by-One® HS interfaces
Q & A
- What is the primary function of the TPD6E05U06RVZR?
The primary function of the TPD6E05U06RVZR is to provide Electrostatic Discharge (ESD) protection for high-speed signal lines.
- How many channels of protection does the TPD6E05U06RVZR offer?
The TPD6E05U06RVZR offers six channels of protection.
- What are the ESD protection levels of the TPD6E05U06RVZR?
The device provides ±12kV contact discharge and ±15kV air gap discharge protection according to IEC 61000-4-2.
- What is the typical input capacitance of the TPD6E05U06RVZR?
The typical input capacitance is between 0.42pF and 0.5pF.
- What is the operating temperature range of the TPD6E05U06RVZR?
The device operates over an industrial temperature range of -40°C to +125°C.
- What types of interfaces can the TPD6E05U06RVZR protect?
The device can protect HDMI, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express®, eSATA, and V-by-One® HS interfaces.
- What is the clamping voltage of the TPD6E05U06RVZR?
The clamping voltage is 10V (IPP = 1A) and 14V (IPP = 5A).
- What is the leakage current of the TPD6E05U06RVZR?
The leakage current is 10nA (maximum) at 2.5V bias.
- What package type does the TPD6E05U06RVZR come in?
The device comes in a USON14 package.
- How does the TPD6E05U06RVZR simplify layout design?
The device offers easy flow-through routing, requiring minimal modification to existing layouts.
