Overview
The TPD4E05U06QDQARQ1 is a quad-channel Electrostatic Discharge (ESD) protection diode designed by Texas Instruments. This device is part of the TPDxE05U06-Q1 family, which offers ultra-low capacitance and is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 level 4 international standard. It is particularly suited for protecting high-speed signal applications up to 6 Gbps, such as USB 3.0, USB 2.0, HDMI, and DisplayPort interfaces.
Key Specifications
| Feature | Description |
|---|---|

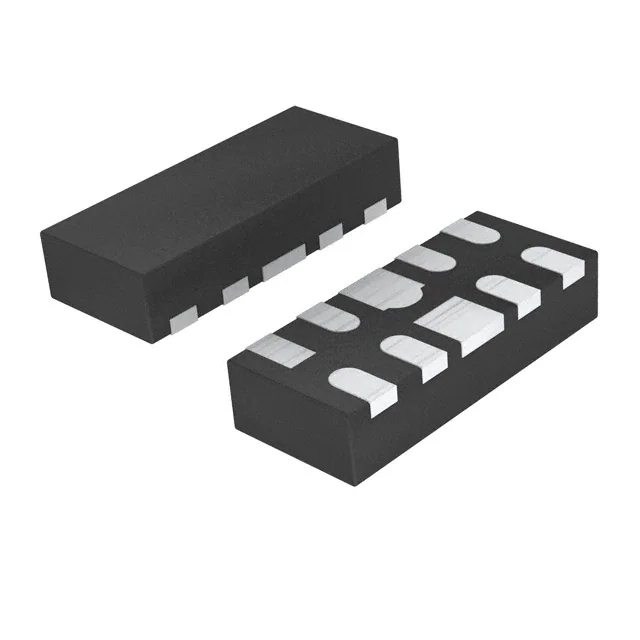

| Package | USON-10 (2.50 mm x 1.00 mm) |
| ESD Protection | ±12-kV Contact Discharge, ±15-kV Air Gap Discharge (IEC 61000-4-2 Level 4) |
| EFT Protection | 80 A (5/50 ns waveform, 4 kV with 50-Ω impedance) |
| Surge Protection | 2.5 A (8/20 µs waveform, 40 W) |
| I/O Capacitance | 0.42 pF to 0.5 pF (Typical) |
| DC Breakdown Voltage | 6.4 V (Minimum) |
| Leakage Current | 10 nA (Maximum) |
| Clamping Voltage | 14 V at 5-A TLP |
| Operating Temperature | –40°C to +125°C |
| AEC-Q101 Qualification | Yes |
| RoHS Compliance | Yes |
Key Features
- Ultra-low capacitance (0.42 pF to 0.5 pF) for high-speed data interfaces up to 6 Gbps
- Low clamping voltage (14 V at 5-A TLP) for effective ESD protection
- High surge current handling capability (2.5 A, 8/20 µs waveform)
- Compact USON-10 package for easy integration
- Easy flow-through routing for minimal layout modification
- AEC-Q101 qualified for automotive applications
- RoHS compliant for environmental sustainability
Applications
- USB 2.0 and USB 3.0 interfaces
- HDMI 1.4/2.0 and DisplayPort interfaces
- Automotive electronics (e.g., head units, telematics, navigation modules)
- Industrial automation and communications equipment
- Power supplies and security systems
- Portable and consumer electronics (e.g., smartphones, tablets, laptops)
Q & A
- What is the TPD4E05U06QDQARQ1 used for?
The TPD4E05U06QDQARQ1 is used for protecting sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events in high-speed data interfaces.
- What are the key features of the TPD4E05U06QDQARQ1?
The key features include ultra-low capacitance, low clamping voltage, high surge current handling, and AEC-Q101 qualification.
- What is the package type of the TPD4E05U06QDQARQ1?
The package type is USON-10 (2.50 mm x 1.00 mm)
- What is the ESD protection level of the TPD4E05U06QDQARQ1?
The device provides ±12-kV contact discharge and ±15-kV air gap discharge protection (IEC 61000-4-2 Level 4)
- What is the operating temperature range of the TPD4E05U06QDQARQ1?
The operating temperature range is –40°C to +125°C
- Is the TPD4E05U06QDQARQ1 RoHS compliant?
Yes, the device is RoHS compliant
- What are some common applications of the TPD4E05U06QDQARQ1?
Common applications include USB interfaces, HDMI, DisplayPort, automotive electronics, industrial automation, and power supplies
- What is the capacitance of the TPD4E05U06QDQARQ1?
The I/O capacitance is between 0.42 pF and 0.5 pF
- What is the DC breakdown voltage of the TPD4E05U06QDQARQ1?
The DC breakdown voltage is a minimum of 6.4 V
- How does the TPD4E05U06QDQARQ1 handle surge events?
The device can withstand surge events up to 2.5 A and 40 W (8/20 µs waveform)
