Overview
The TPD3E001DRYRG4 is a high-performance ESD protection diode array manufactured by Texas Instruments. Designed to safeguard sensitive electronic components from electrostatic discharge (ESD), this product is widely used in applications such as USB ports, HDMI interfaces, and other high-speed data lines. Its compact size, low capacitance, and robust protection capabilities make it a preferred choice for engineers in consumer electronics, industrial automation, and automotive electronics. The TPD3E001DRYRG4 stands out for its ultra-low leakage current and high ESD protection levels, ensuring reliable performance in demanding environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| ESD Protection Level | ±8 | kV | IEC 61000-4-2 (Contact Discharge) |
| Operating Voltage | 5 | V | |
| Leakage Current | 1 | nA | Max at 5V |
| Capacitance | 0.5 | pF | Typical |
| Package | USON | - | 6-pin |
| Operating Temperature | -40 to 85 | °C |
Key Features
- Provides robust ESD protection up to ±8 kV (IEC 61000-4-2).
- Ultra-low leakage current of 1 nA ensures minimal power loss.
- Low capacitance of 0.5 pF minimizes signal distortion in high-speed data lines.
- Compact USON package saves board space and simplifies PCB design.
- Wide operating temperature range from -40°C to 85°C for versatile applications.
Applications
The TPD3E001DRYRG4 is ideal for protecting sensitive electronic components in various applications. In consumer electronics, it is commonly used in USB ports, HDMI interfaces, and audio/video connectors. In industrial automation, it safeguards communication interfaces and control systems from ESD events. Additionally, its robust design makes it suitable for automotive electronics, where it protects infotainment systems and data communication lines. Its low capacitance and high ESD protection levels ensure reliable performance in high-speed data transmission environments.
Q & A
1. What is the ESD protection level of the TPD3E001DRYRG4?
The TPD3E001DRYRG4 provides ESD protection up to ±8 kV, compliant with the IEC 61000-4-2 standard.
2. What is the typical capacitance of this device?
The typical capacitance is 0.5 pF, which minimizes signal distortion in high-speed data lines.
3. What is the maximum leakage current?
The maximum leakage current is 1 nA at 5V, ensuring minimal power loss.
4. What package does the TPD3E001DRYRG4 come in?

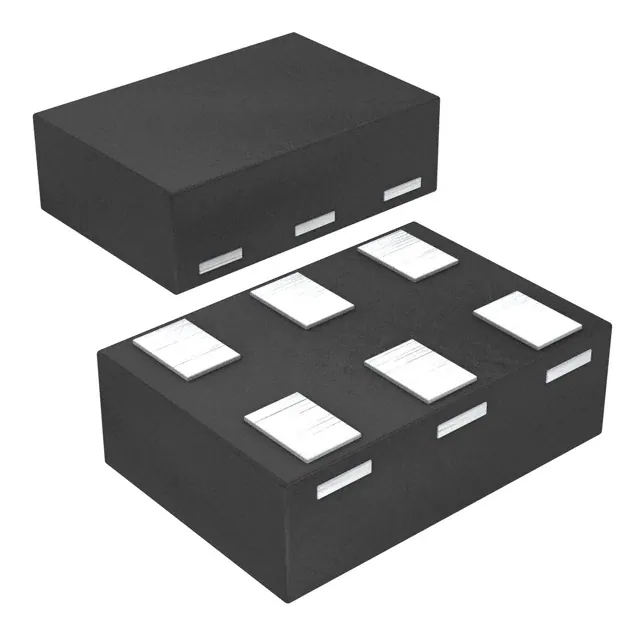

It is available in a compact 6-pin USON package.
5. What is the operating voltage range?
The operating voltage is 5V.
6. Is this device suitable for automotive applications?
Yes, its robust design and wide operating temperature range make it suitable for automotive electronics.
7. Can it be used in USB ports?
Yes, it is commonly used to protect USB ports from ESD events.
8. What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
9. Does it support high-speed data lines?
Yes, its low capacitance ensures minimal signal distortion in high-speed data lines.
10. Where can I find the datasheet for this device?
The datasheet can be downloaded from the official Texas Instruments website or authorized distributors like Digi-Key or Mouser.
