Overview

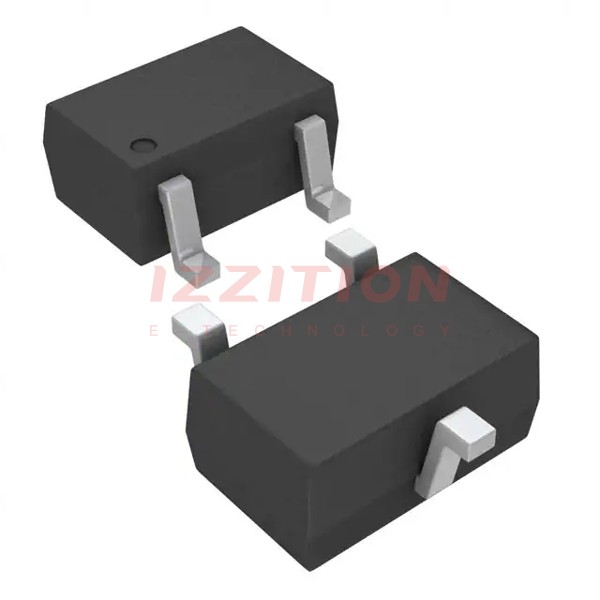

The TPD2E2U06QDCKRQ1 is a dual-channel ESD (Electrostatic Discharge) protection diode array manufactured by Texas Instruments. This component is designed to protect sensitive electronic circuits from damage caused by electrostatic discharge and electrical fast transients. It is particularly suited for applications in high-speed data lines, such as USB, HDMI, and other communication interfaces. The TPD2E2U06QDCKRQ1 is housed in a compact SC-70 package, making it ideal for space-constrained designs. Its low capacitance and low leakage current ensure minimal signal distortion, making it a reliable choice for high-speed data protection.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Channels | 2 | - | Dual-channel protection |
| Working Voltage | 5.5 | V | Maximum continuous voltage |
| ESD Protection Level | ±8 | kV | IEC 61000-4-2 (Contact Discharge) |
| Capacitance | 0.35 | pF | Typical value per channel |
| Leakage Current | 1 | nA | Maximum value at 5.5V |
| Package | SC-70 | - | Compact surface-mount package |
Key Features
- Dual-channel ESD protection for high-speed data lines.
- Low capacitance minimizes signal distortion.
- Low leakage current ensures power efficiency.
- Compact SC-70 package for space-constrained designs.
- Complies with IEC 61000-4-2 ESD protection standards.
Applications
The TPD2E2U06QDCKRQ1 is widely used in applications requiring robust ESD protection for high-speed data interfaces. Common use cases include USB ports, HDMI connectors, and other communication interfaces in consumer electronics, industrial equipment, and automotive systems. Its compact size and high performance make it suitable for portable devices, such as smartphones, tablets, and laptops, where space and signal integrity are critical.
Q & A
What is the maximum working voltage of the TPD2E2U06QDCKRQ1?
The maximum working voltage is 5.5V.
How many channels does this ESD protection diode have?
It has two channels for dual-line protection.
What is the typical capacitance per channel?
The typical capacitance is 0.35pF per channel.
What is the ESD protection level of this component?
It provides ±8kV ESD protection according to IEC 61000-4-2.
What package is the TPD2E2U06QDCKRQ1 available in?
It is available in an SC-70 package.
What is the maximum leakage current?
The maximum leakage current is 1nA at 5.5V.
Is this component suitable for USB port protection?
Yes, it is ideal for protecting USB ports and other high-speed data interfaces.
Does it comply with IEC standards?
Yes, it complies with IEC 61000-4-2 for ESD protection.
Can it be used in automotive applications?
Yes, it is suitable for automotive systems requiring ESD protection.
What are the key advantages of this component?
Its key advantages include low capacitance, low leakage current, and compact size, making it ideal for high-speed data protection.
