Overview
The TMSDC6727BGDHA250 is a high-performance digital signal processor (DSP) from Texas Instruments, designed for demanding applications in industrial automation, telecommunications, and audio processing. This DSP model is part of the TMS320C67x series, renowned for its floating-point capabilities and efficient real-time processing. The TMSDC6727BGDHA250 is targeted at engineers and developers working on complex signal processing tasks, offering a balance of performance, power efficiency, and flexibility. Its unique selling points include its advanced architecture, high-speed processing, and support for a wide range of peripherals, making it a competitive choice in the DSP market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Architecture | TMS320C67x | - | Floating-point DSP |
| Clock Speed | 250 | MHz | High-speed processing |
| Instruction Set | VLIW | - | Very Long Instruction Word |
| On-Chip Memory | 256 | KB | RAM |
| External Memory Interface | EMIF | - | Supports SDRAM, SRAM |
| Power Consumption | 1.2 | W | Typical |
| Operating Temperature | -40 to 105 | °C | Industrial range |

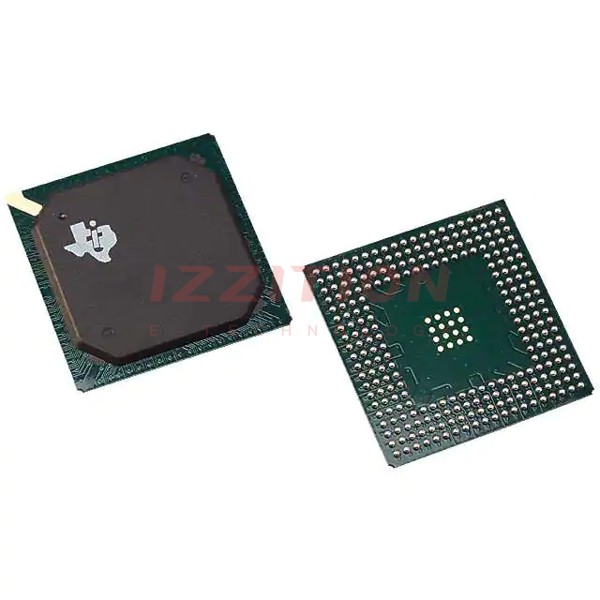

| Package | BGA | - | Ball Grid Array |
| I/O Voltage | 3.3 | V | Standard |
| Manufacturing Process | 130 | nm | CMOS |
Key Features
- High-Speed Floating-Point Processing: Ideal for complex mathematical operations in real-time applications.
- Flexible Memory Architecture: Combines on-chip RAM with external memory support for scalable designs.
- Comprehensive Peripheral Integration: Includes EMIF, McBSP, and Timers for versatile connectivity.
- Low Power Consumption: Optimized for energy-efficient performance in industrial environments.
- Robust Industrial Design: Operates reliably across a wide temperature range, ensuring durability.
Applications
The TMSDC6727BGDHA250 is widely used in industrial automation for motor control and robotics, in telecommunications for baseband processing, and in audio processing for high-fidelity sound systems. Its high-speed processing and floating-point capabilities make it suitable for applications requiring real-time data analysis, such as medical imaging and radar systems. Additionally, its low power consumption and robust design ensure reliable performance in harsh environments, making it a preferred choice for automotive and aerospace applications.
Q & A
1. What is the primary use of the TMSDC6727BGDHA250?
The TMSDC6727BGDHA250 is primarily used for high-speed digital signal processing in applications such as industrial automation, telecommunications, and audio processing.
2. What is the clock speed of this DSP?
The clock speed of the TMSDC6727BGDHA250 is 250 MHz.
3. Does this DSP support external memory?
Yes, it supports external memory through its EMIF (External Memory Interface).
4. What is the operating temperature range?
The operating temperature range is -40°C to 105°C, suitable for industrial applications.
5. What type of package does this DSP use?
It uses a BGA (Ball Grid Array) package.
6. Is the TMSDC6727BGDHA250 suitable for low-power applications?
Yes, it has a typical power consumption of 1.2 W, making it suitable for energy-efficient designs.
7. What is the manufacturing process used for this DSP?
It is manufactured using a 130 nm CMOS process.
8. Can this DSP handle floating-point operations?
Yes, it is designed for high-speed floating-point processing.
9. What peripherals are integrated into this DSP?
It includes peripherals such as EMIF, McBSP, and Timers.
10. Is the TMSDC6727BGDHA250 suitable for automotive applications?
Yes, its robust design and wide operating temperature range make it suitable for automotive and aerospace applications.
