Overview

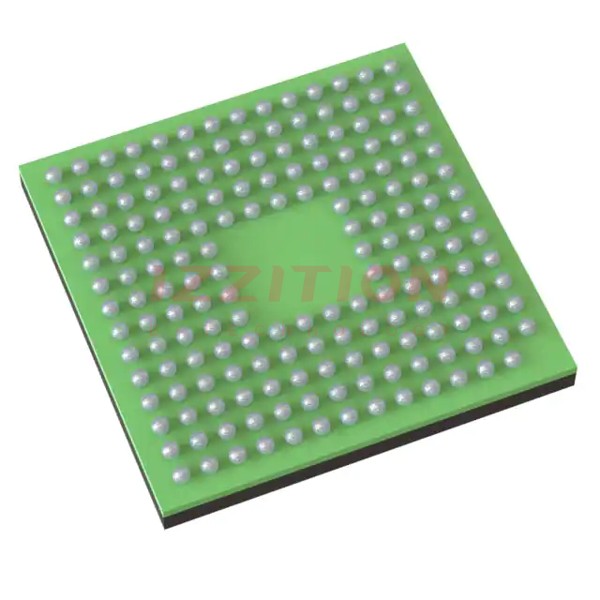

The TMS320VC5507GBB is a fixed-point digital signal processor (DSP) manufactured by Texas Instruments. This device is part of the TMS320C55x family and is known for its high-performance processing capabilities, making it suitable for a variety of digital signal processing applications. The TMS320VC5507GBB is packaged in a 179-pin NFBGA (New Fine-Pitch Ball Grid Array) package, which offers footprint equivalence to the discontinued MicroStar BGA package.
Key Specifications
| Specification | Value |
|---|---|
| Number of Cores | 1 Core |
| Maximum Clock Frequency | 200 MHz |
| Program Memory Size | 64 kB |
| Package Type | 179-pin NFBGA |
| Supply Voltage (CVDD) | 1.2 V, 1.35 V, 1.6 V |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-Performance Processing: The TMS320VC5507GBB features a high-performance fixed-point DSP core, enabling efficient processing of digital signal processing tasks.
- On-Chip Memory: Includes on-chip dual-access RAM (DARAM), single-access RAM (SARAM), and read-only memory (ROM) for flexible memory management.
- Direct Memory Access (DMA) Controller: Supports DMA operations to enhance data transfer efficiency.
- Configurable External Buses: Features configurable external buses and a parallel port for versatile interface options.
- System Registers and Peripherals: Includes various system registers and peripherals such as timers, GPIO, and a multichannel buffered serial port (McBSP).
Applications
- Audio Processing: Suitable for audio processing applications such as audio codecs, echo cancellation, and noise reduction.
- Image Processing: Can be used in image processing tasks like image compression and enhancement.
- Industrial Control: Applicable in industrial control systems for real-time data processing and control.
- Medical Devices: Used in medical devices for signal processing and analysis.
- Consumer Electronics: Found in various consumer electronics requiring high-performance DSP capabilities.
Q & A
- What is the maximum clock frequency of the TMS320VC5507GBB?
The maximum clock frequency of the TMS320VC5507GBB is 200 MHz.
- What type of package does the TMS320VC5507GBB use?
The TMS320VC5507GBB is packaged in a 179-pin NFBGA (New Fine-Pitch Ball Grid Array) package.
- What is the program memory size of the TMS320VC5507GBB?
The program memory size of the TMS320VC5507GBB is 64 kB.
- Does the TMS320VC5507GBB support DMA operations?
Yes, the TMS320VC5507GBB supports DMA operations through its DMA controller.
- What are some common applications of the TMS320VC5507GBB?
The TMS320VC5507GBB is commonly used in audio processing, image processing, industrial control, medical devices, and consumer electronics.
- What is the operating temperature range of the TMS320VC5507GBB?
The operating temperature range of the TMS320VC5507GBB is -40°C to 85°C.
- Does the TMS320VC5507GBB have on-chip memory?
Yes, the TMS320VC5507GBB includes on-chip DARAM, SARAM, and ROM.
- What peripherals does the TMS320VC5507GBB support?
The TMS320VC5507GBB supports various peripherals including timers, GPIO, and a multichannel buffered serial port (McBSP).
- Is the TMS320VC5507GBB RoHS compliant?
No, the TMS320VC5507GBB is not RoHS compliant.
- What is the significance of the NFBGA package in the TMS320VC5507GBB?
The NFBGA package offers datasheet-equivalent electrical performance and is footprint equivalent to the discontinued MicroStar BGA package.
