Overview
The TMS320VC5506GBB is a fixed-point digital signal processor (DSP) manufactured by Texas Instruments. This device is part of the TMS320C55x DSP family and is designed to provide high performance and low power consumption, making it suitable for a variety of applications in the fields of telecommunications, audio processing, and industrial control.
Key Specifications
| Parameter | Value |
|---|---|

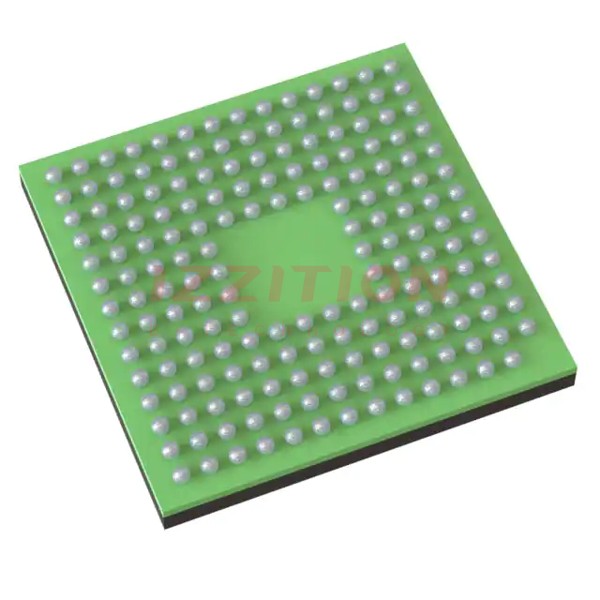

| Package Type | NFBGA (179-pin) |
| Operating Frequency | Up to 108 MHz |
| Memory | On-Chip Dual-Access RAM (DARAM): 128 KB, On-Chip Single-Access RAM (SARAM): 64 KB, On-Chip Boot Loader Read-Only Memory (ROM): 32 KB |
| Peripherals | DMA Controller, I2C Interface, Configurable External Buses, General-Purpose Input/Output (GPIO) Ports |
| RoHS Status | Non-RoHS compliant |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-performance fixed-point DSP with a maximum clock speed of 108 MHz
- On-chip memory includes 128 KB of DARAM, 64 KB of SARAM, and 32 KB of ROM
- Direct Memory Access (DMA) controller for efficient data transfer
- I2C interface for communication with other devices
- Configurable external buses for flexible system design
- General-Purpose Input/Output (GPIO) ports for additional functionality
Applications
The TMS320VC5506GBB is versatile and can be used in various applications such as:
- Telecommunications: for voice and data processing
- Audio Processing: for audio codecs and effects processing
- Industrial Control: for real-time control and monitoring systems
- Medical Devices: for signal processing in medical equipment
- Automotive Systems: for in-vehicle audio and control systems
Q & A
- What is the maximum operating frequency of the TMS320VC5506GBB?
The maximum operating frequency is up to 108 MHz. - What type of package does the TMS320VC5506GBB use?
The device uses a 179-pin NFBGA package. - Is the TMS320VC5506GBB RoHS compliant?
No, the TMS320VC5506GBB is not RoHS compliant. - What is the on-chip memory configuration of the TMS320VC5506GBB?
The device includes 128 KB of DARAM, 64 KB of SARAM, and 32 KB of ROM. - What peripherals are available on the TMS320VC5506GBB?
The device includes a DMA controller, I2C interface, configurable external buses, and GPIO ports. - What are some common applications for the TMS320VC5506GBB?
Common applications include telecommunications, audio processing, industrial control, medical devices, and automotive systems. - What is the operating temperature range for the TMS320VC5506GBB?
The operating temperature range is -40°C to 85°C. - Can the TMS320VC5506GBB be used in real-time control systems?
Yes, it is suitable for real-time control and monitoring systems due to its high performance and low latency. - How does the DMA controller enhance the performance of the TMS320VC5506GBB?
The DMA controller allows for efficient data transfer between peripherals and memory, reducing the load on the CPU and enhancing overall system performance. - What is the purpose of the GPIO ports on the TMS320VC5506GBB?
The GPIO ports provide additional functionality for interfacing with external devices and can be configured for various input/output operations.
