Overview
The TMS320VC5502ZAV200 is a high-performance, fixed-point digital signal processor (DSP) from Texas Instruments' renowned TMS320 series. This processor is designed to deliver high performance and low power consumption, making it ideal for a wide range of applications that require efficient signal processing. The TMS320VC5502ZAV200 is based on the TMS320C55x™ DSP architecture, which achieves high performance through increased parallelism and a focus on reducing power dissipation. The CPU supports an advanced internal bus structure, allowing for multiple data read and write operations in a single cycle, and features two multiply-accumulate units for impressive computational power.
Key Specifications
| Parameter | Value |
|---|---|
| DSP Type | 1 C55x |
| DSP Clock Rate (max) | 200 MHz, 300 MHz |
| CPU | 16-bit |
| Instruction Cycle Time | 3.33 ns / 5 ns |
| On-Chip RAM | 32K x 16-Bit (64K Bytes) |
| On-Chip ROM | 16K x 16-Bit (32K Bytes) |
| External Memory Space | 8M x 16-Bit |

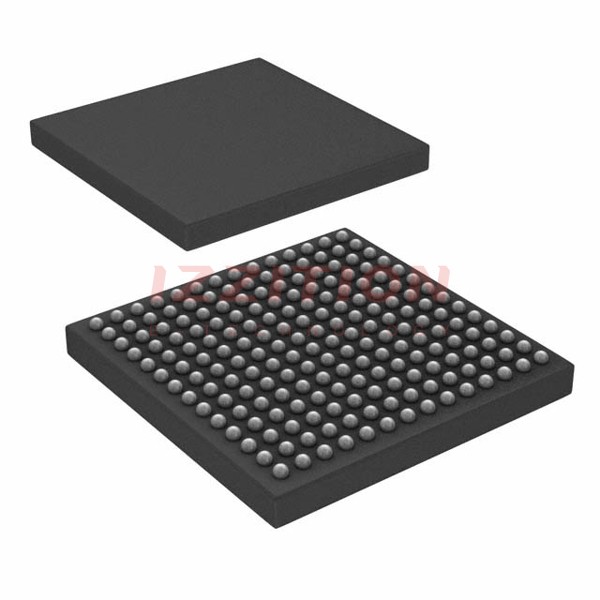

| Package/Case | NFBGA (ZAV)-201 |
| Supply Voltage | 3.3-V I/O, 1.26-V Core |
Key Features
- High-Performance, Low-Power DSP
- Fast Instruction Cycle Time (3.33 ns / 5 ns)
- Dual Multipliers (up to 600 MMACS)
- Two Arithmetic/Logic Units (ALUs)
- Instruction Cache (16K Bytes)
- On-Chip Peripherals: DMA Controller, McBSPs, APLL Clock Generator, GPIO Pins, etc.
- Programmable Low-Power Control
- Debug Trace Capability
- External Memory Interface (EMIF) Supporting Various Memory Types
Applications
The TMS320VC5502ZAV200 is versatile and suitable for a variety of applications, including:
- Industrial systems
- Automotive systems
- Audio processing systems
- Communication systems
Q & A
- Q: What is the TMS320VC5502ZAV200?
A: The TMS320VC5502ZAV200 is a fixed-point digital signal processor from Texas Instruments' TMS320 series. - Q: What is the clock rate of the TMS320VC5502ZAV200?
A: The clock rate can be up to 200 MHz or 300 MHz. - Q: What type of CPU does the TMS320VC5502ZAV200 have?
A: The CPU is a 16-bit processor based on the TMS320C55x™ DSP architecture. - Q: What are the key features of the TMS320VC5502ZAV200?
A: Key features include dual multipliers, two ALUs, instruction cache, on-chip peripherals, and programmable low-power control. - Q: What types of memory does the TMS320VC5502ZAV200 support?
A: It supports on-chip RAM and ROM, as well as external memory interfaces for SRAM, EPROM, SDRAM, and SBRAM. - Q: What is the warranty period for the TMS320VC5502ZAV200 from Ovaga?
A: Ovaga offers a 1-year warranty on the TMS320VC5502ZAV200. - Q: How can I ensure the authenticity of the TMS320VC5502ZAV200?
A: Ensure you purchase from authorized distributors or suppliers that rigorously test and verify the credentials of original manufacturers and authorized agents. - Q: What are the typical applications of the TMS320VC5502ZAV200?
A: Typical applications include industrial, automotive, audio, and communication systems. - Q: What is the package type of the TMS320VC5502ZAV200?
A: The package type is NFBGA (ZAV)-201. - Q: Does the TMS320VC5502ZAV200 support debug and trace capabilities?
A: Yes, it supports emulation/debug trace capability.
