Overview
The TMS320VC5502GBE300 is a fixed-point digital signal processor (DSP) produced by Texas Instruments. This processor is part of the TMS320C55x DSP family and is designed for high-performance, low-power applications. It features a robust set of peripherals and a flexible architecture, making it suitable for a wide range of signal processing tasks.

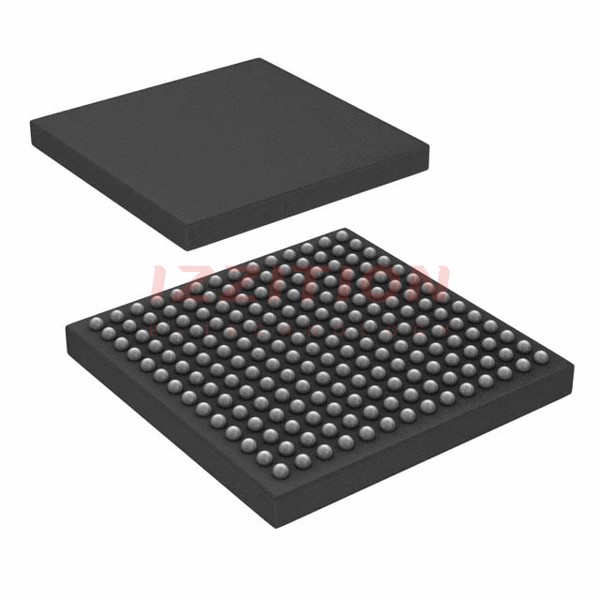

The TMS320VC5502GBE300 is available in a 201-terminal NFBGA (Nanoseal Flip-Chip Ball Grid Array) package, operating over a temperature range of -40°C to 85°C. This DSP is optimized for various applications requiring intensive signal processing, such as audio, image, and video processing, as well as industrial and medical devices.
Key Specifications
| Specification | Value |
|---|---|
| Processor Type | Fixed-Point Digital Signal Processor |
| Package Type | 201-terminal NFBGA |
| Operating Temperature Range | -40°C to 85°C |
| Core Frequency | Up to 100 MHz |
| On-Chip Memory | 320 KB of on-chip RAM, 32 KB of on-chip ROM |
| Instruction Cache | 4 KB of instruction cache |
| Peripherals | UART, I2C, McBSP, DMA, Timers, Host-Port Interface (HPI) |
| GPIO | Parallel GPIO with configurable direction and enable |
| Clock Generation | Internal system oscillator with external crystal, PLL control |
Key Features
- High-Performance Processing: The TMS320VC5502GBE300 features a high-performance fixed-point DSP core capable of executing up to 100 million instructions per second (MIPS) at 100 MHz.
- On-Chip Memory: Includes 320 KB of dual-access RAM (DARAM) and 32 KB of on-chip ROM, along with a 4 KB instruction cache.
- Flexible Peripherals: Supports a variety of peripherals such as UART, I2C, McBSP, DMA, and timers, as well as a Host-Port Interface (HPI) for easy integration with other systems.
- Configurable GPIO: Offers parallel GPIO with configurable direction and enable, providing flexibility in interfacing with external devices.
- Clock Generation: Features an internal system oscillator with external crystal support and PLL control for flexible clock management.
- Low Power Consumption: Designed to operate with low power consumption, making it suitable for battery-powered and energy-efficient applications.
Applications
- Audio Processing: Suitable for audio codecs, echo cancellation, and other audio signal processing tasks.
- Image and Video Processing: Can be used in image and video compression, decompression, and other visual signal processing applications.
- Industrial Control Systems: Applicable in industrial automation, motor control, and other industrial signal processing tasks.
- Medical Devices: Used in medical imaging, patient monitoring systems, and other medical signal processing applications.
- Consumer Electronics: Found in various consumer electronics such as set-top boxes, digital cameras, and other multimedia devices.
Q & A
- What is the TMS320VC5502GBE300?
The TMS320VC5502GBE300 is a fixed-point digital signal processor produced by Texas Instruments.
- What is the operating temperature range of the TMS320VC5502GBE300?
The operating temperature range is -40°C to 85°C.
- What type of package does the TMS320VC5502GBE300 come in?
It comes in a 201-terminal NFBGA package.
- What is the maximum core frequency of the TMS320VC5502GBE300?
The maximum core frequency is up to 100 MHz.
- What peripherals does the TMS320VC5502GBE300 support?
It supports UART, I2C, McBSP, DMA, timers, and a Host-Port Interface (HPI).
- Does the TMS320VC5502GBE300 have on-chip memory?
Yes, it includes 320 KB of on-chip RAM and 32 KB of on-chip ROM, along with a 4 KB instruction cache.
- What are some common applications of the TMS320VC5502GBE300?
Common applications include audio processing, image and video processing, industrial control systems, medical devices, and consumer electronics.
- How does the TMS320VC5502GBE300 manage clock generation?
It features an internal system oscillator with external crystal support and PLL control for flexible clock management.
- Is the TMS320VC5502GBE300 suitable for low-power applications?
Yes, it is designed to operate with low power consumption, making it suitable for battery-powered and energy-efficient applications.
- What is the purpose of the GPIO in the TMS320VC5502GBE300?
The GPIO provides configurable direction and enable, allowing for flexible interfacing with external devices.
