Overview
The TMS320VC5501GBE300 is a low-power, fixed-point digital signal processor (DSP) from Texas Instruments. This device is part of the C55x DSP family and is designed to provide high performance with low power consumption, making it suitable for a variety of applications that require efficient signal processing.
Key Specifications
| Parameter | Specification |
|---|---|
| Processor Type | Fixed-Point Digital Signal Processor (DSP) |
| Clock Speed | Up to 300 MHz |

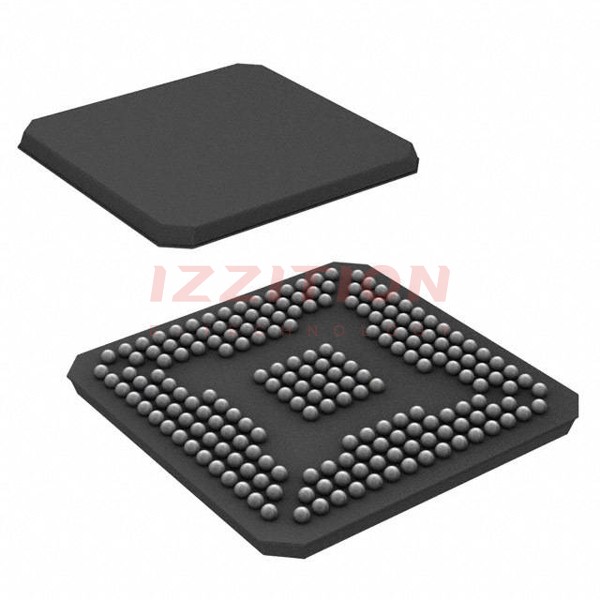

| Package Type | NFBGA (201 pins) |
| Memory | On-Chip ROM, On-Chip Dual-Access RAM (DARAM), Instruction Cache |
| Peripheral Interfaces | UART, I2C, HPI, DMA Controller, Timers |
| General-Purpose I/O | GPIO, Parallel Port General-Purpose I/O (PGPIO) |
| Power Consumption | Low power consumption |
| Compliance | Non-RoHS and Green |
Key Features
- High-performance fixed-point DSP with up to 300 MHz clock speed
- Low power consumption, making it energy-efficient
- On-chip memory including ROM, DARAM, and instruction cache
- Various peripheral interfaces such as UART, I2C, HPI, and DMA Controller
- General-Purpose I/O (GPIO) and Parallel Port General-Purpose I/O (PGPIO)
- Configurable external ports and signals
- System clock generator with PLL control
- Auto-wakeup/idle function for McBSP and DMA
Applications
The TMS320VC5501GBE300 is versatile and can be used in a wide range of applications, including:
- Audio and video processing
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
- Wireless communication devices
Q & A
- What is the clock speed of the TMS320VC5501GBE300?
The clock speed of the TMS320VC5501GBE300 can go up to 300 MHz. - What type of package does the TMS320VC5501GBE300 come in?
The TMS320VC5501GBE300 comes in an NFBGA package with 201 pins. - What are the memory components of the TMS320VC5501GBE300?
The device includes on-chip ROM, on-chip Dual-Access RAM (DARAM), and an instruction cache. - What peripheral interfaces are available on the TMS320VC5501GBE300?
The device features UART, I2C, HPI, DMA Controller, and timers. - Does the TMS320VC5501GBE300 support general-purpose I/O?
Yes, it supports GPIO and Parallel Port General-Purpose I/O (PGPIO). - Is the TMS320VC5501GBE300 compliant with RoHS standards?
No, the TMS320VC5501GBE300 is non-RoHS but is green compliant. - What is the power consumption profile of the TMS320VC5501GBE300?
The device is designed for low power consumption. - What development environment is recommended for the TMS320VC5501GBE300?
The recommended development environment is Code Composer Studio™ integrated development environment (IDE) from Texas Instruments. - In which sectors can the TMS320VC5501GBE300 be applied?
The TMS320VC5501GBE300 can be applied in sectors such as audio and video processing, industrial control, medical devices, aerospace, automotive, and wireless communication. - What is the significance of the system clock generator in the TMS320VC5501GBE300?
The system clock generator with PLL control allows for flexible clock management and frequency adjustments.
