Overview

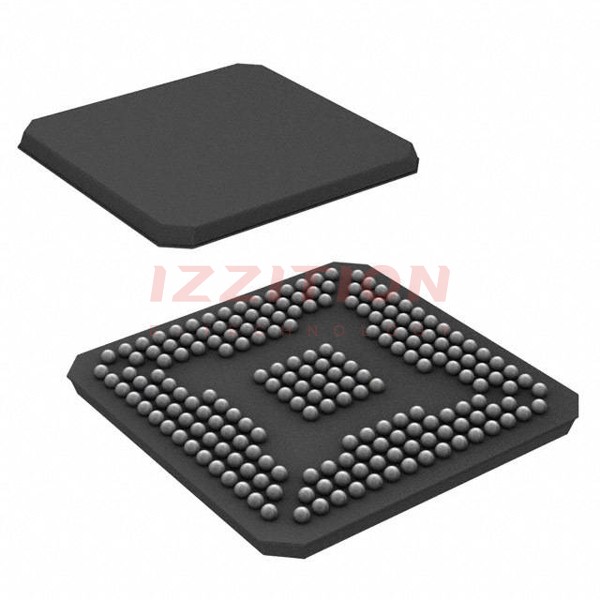

The TMS320VC5501ZAV300 is a fixed-point digital signal processor (DSP) manufactured by Texas Instruments. This device is part of the TMS320VC5501 series and is packaged in a laminate NFBGA (Nanoseal Flip-Chip Ball Grid Array) package, specifically the NFBGA-201 package. The TMS320VC5501ZAV300 is designed to offer high performance and efficiency in various digital signal processing applications.
The transition to the NFBGA package from the MicroStar BGA was due to equipment End-Of-Life notices from substrate suppliers, ensuring continued availability and performance equivalence.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Part Number | TMS320VC5501ZAV300 |
| Package Type | NFBGA-201 |
| Package Designator | ZAV |
| Pins | 201 |
| RoHS Compliance | Yes |
| MSL Level | MSL 3 |
| ECCN | 3A991A2 |
Key Features
- High-Performance DSP Core: The TMS320VC5501 features a high-performance fixed-point DSP core, optimized for real-time signal processing applications.
- Memory: Includes on-chip ROM, dual-access RAM (DARAM), and an instruction cache to enhance performance and reduce memory access times.
- Configurable External Ports and Signals: Supports configurable external ports and signals, including a parallel port mux, allowing for flexible system design.
- Peripheral Modules: Includes timers, UART, I2C module, Host-Port Interface (HPI), and a Direct Memory Access (DMA) controller to handle various system tasks efficiently.
- System Clock Generator: Features a system clock generator with multiple clock groups and PLL control registers, allowing for flexible clock management.
- General-Purpose I/O (GPIO): Provides general-purpose I/O ports and parallel port general-purpose I/O (PGPIO) for additional system control and interface capabilities.
Applications
- Audio and Video Processing: Suitable for real-time audio and video processing applications due to its high-performance DSP core.
- Industrial Control Systems: Can be used in industrial control systems that require real-time signal processing and control.
- Medical Devices: Applicable in medical devices that need high-speed signal processing, such as in imaging and diagnostic equipment.
- Automotive Systems: Used in automotive systems for tasks like engine control, safety systems, and infotainment systems.
- Telecommunications: Suitable for telecommunications equipment that require efficient signal processing.
Q & A
- What is the package type of the TMS320VC5501ZAV300?
The package type is NFBGA-201.
- Why was the MicroStar BGA package discontinued?
The MicroStar BGA package was discontinued due to an equipment End-Of-Life notice from the substrate supplier.
- What is the ECCN classification for the TMS320VC5501ZAV300?
The ECCN classification is 3A991A2.
- Is the TMS320VC5501ZAV300 RoHS compliant?
Yes, it is RoHS compliant.
- What is the MSL level for the TMS320VC5501ZAV300?
The MSL level is MSL 3.
- What types of memory does the TMS320VC5501ZAV300 have?
The device includes on-chip ROM, dual-access RAM (DARAM), and an instruction cache.
- Does the TMS320VC5501ZAV300 support DMA?
Yes, it includes a Direct Memory Access (DMA) controller.
- What peripheral modules are available on the TMS320VC5501ZAV300?
The device includes timers, UART, I2C module, Host-Port Interface (HPI), and other peripheral modules.
- Can the TMS320VC5501ZAV300 be used in automotive systems?
Yes, it can be used in automotive systems for various tasks such as engine control and safety systems.
- What is the purpose of the system clock generator in the TMS320VC5501ZAV300?
The system clock generator allows for flexible clock management with multiple clock groups and PLL control registers.
