Overview
The TMS320VC5470ZHK is a high-performance, fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C54x series. It is designed to provide advanced processing capabilities for a wide range of applications, including telecommunications, audio and video processing, and industrial control systems. This DSP is part of the Luminary Micro/Texas Instruments family and is known for its robust performance and system-level integration.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | TMS320VC5470ZHK |
| Manufacturer | Texas Instruments |

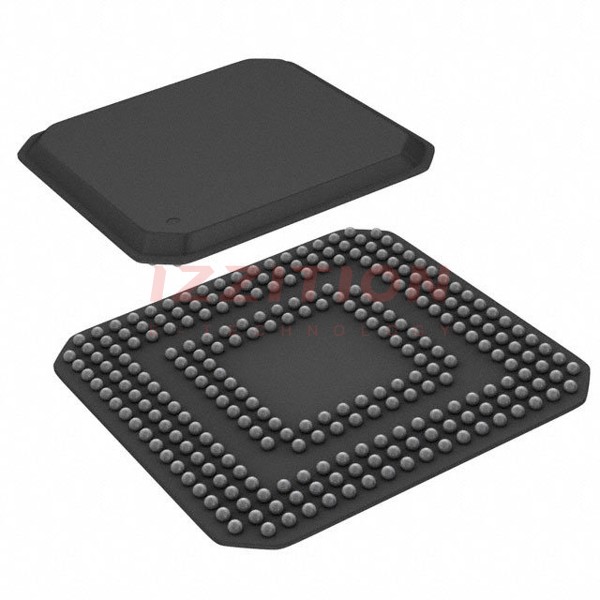

| Package Type | 257-BGA MICROSTAR |
| Processor Type | Fixed-Point Digital Signal Processor |
| Clock Speed | Up to 100 MHz |
| Memory | On-chip memory includes 544 KB of RAM and 32 KB of ROM |
| Interfaces | Multiple peripherals including McBSP, SPI, UART, and GPIO |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-performance fixed-point DSP with up to 100 MHz clock speed
- On-chip memory: 544 KB of RAM and 32 KB of ROM
- Multiple peripherals: McBSP, SPI, UART, and GPIO
- System-level integration with various interfaces for comprehensive system design
- Low power consumption for energy-efficient applications
- Robust and reliable performance suitable for demanding environments
Applications
The TMS320VC5470ZHK is versatile and can be applied in various fields, including:
- Telecommunications: for voice and data processing
- Audio and Video Processing: for real-time audio and video encoding and decoding
- Industrial Control Systems: for automation and control applications
- Medical Devices: for signal processing in medical equipment
- Aerospace and Defense: for signal processing in military and aerospace applications
Q & A
- What is the TMS320VC5470ZHK?
The TMS320VC5470ZHK is a high-performance, fixed-point digital signal processor from Texas Instruments.
- What is the clock speed of the TMS320VC5470ZHK?
The clock speed can go up to 100 MHz.
- What type of package does the TMS320VC5470ZHK use?
The TMS320VC5470ZHK uses a 257-BGA MICROSTAR package.
- What is the on-chip memory configuration of the TMS320VC5470ZHK?
The on-chip memory includes 544 KB of RAM and 32 KB of ROM.
- What are the key interfaces available on the TMS320VC5470ZHK?
The key interfaces include McBSP, SPI, UART, and GPIO.
- What are the typical applications of the TMS320VC5470ZHK?
Typical applications include telecommunications, audio and video processing, industrial control systems, medical devices, and aerospace and defense.
- What is the operating temperature range of the TMS320VC5470ZHK?
The operating temperature range is -40°C to 85°C.
- Is the TMS320VC5470ZHK suitable for low power consumption applications?
Yes, it is designed for energy-efficient applications with low power consumption.
- Where can I find detailed specifications and datasheets for the TMS320VC5470ZHK?
Detailed specifications and datasheets can be found on the Texas Instruments official website or through distributors like ICSOSO and Allelco Electronic.
- Is the TMS320VC5470ZHK available for immediate shipping?
Yes, it is available for immediate shipping from various distributors, including ICSOSO.
