Overview
The TMS320VC5410AZGU12 is a fixed-point digital signal processor (DSP) from Texas Instruments, designed to provide high performance and flexibility for various signal processing applications. Based on the advanced modified Harvard architecture, this DSP features one program memory bus and three data memory buses, allowing for simultaneous access to program instructions and data. This architecture supports a high degree of parallelism, enabling multiple operations such as two read operations and one write operation in a single cycle. The processor is equipped with an arithmetic logic unit (ALU) that includes a 40-bit barrel shifter and two independent 40-bit accumulators, along with a 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder for non-pipelined single-cycle multiply/accumulate (MAC) operations.
Key Specifications
| Specification | Value |
|---|---|

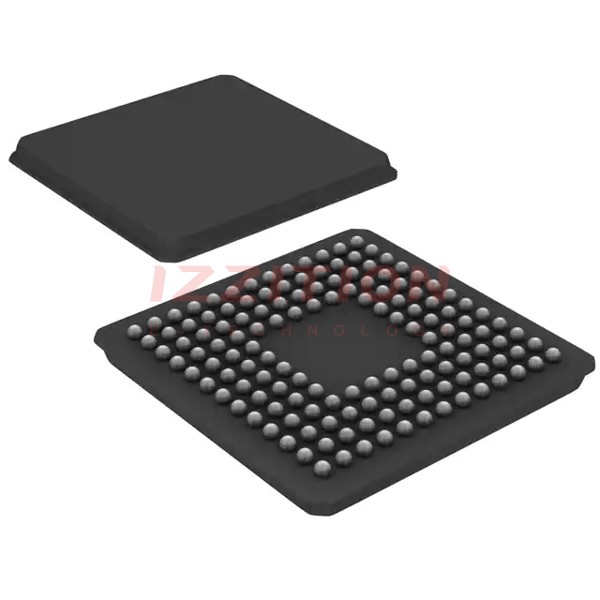

| Package Type | 144-Ball GGU MicroStar BGA™, 144-Pin PGE Low-Profile Quad Flatpack (LQFP) |
| Core Supply Voltage | 1.6 V (160 MIPS), 1.5 V (120 MIPS) |
| On-Chip RAM | 128 kB |
| On-Chip ROM | 32 kB with Bootloader |
| Memory Buses | Three 16-bit data memory buses, one 16-bit program memory bus |
| Arithmetic Logic Unit (ALU) | 40-bit ALU with 40-bit barrel shifter and two 40-bit accumulators |
| Multiplier | 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder |
| Interfaces | Host Interface, McBSP (Multichannel Buffered Serial Ports), Enhanced 8-/16-Bit Host-Port Interface (HPI8/16) |
| Timer | One 16-bit timer |
| DMA Controller | Six-channel Direct Memory Access (DMA) controller |
| I/O Ports | 64K I/O ports |
Key Features
- Advanced Multibus Architecture with separate program and data spaces for high parallelism.
- 40-bit Arithmetic Logic Unit (ALU) with a 40-bit barrel shifter and two independent 40-bit accumulators.
- 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder for non-pipelined single-cycle MAC operations.
- On-chip peripherals including software-programmable wait-state generator, programmable bank-switching, bus holders, and enhanced external parallel interface (XIO2).
- Six-channel Direct Memory Access (DMA) controller and three Multichannel Buffered Serial Ports (McBSPs).
- Power consumption control with IDLE1, IDLE2, and IDLE3 instructions and power-down modes.
- Extended addressing mode for 8M × 16-bit program and data management.
- IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture.
Applications
The TMS320VC5410AZGU12 is suitable for a wide range of digital signal processing applications, including but not limited to:
- Audio and video processing
- Telecommunications and networking
- Industrial control and automation
- Medical imaging and diagnostics
- Aerospace and defense systems
- Automotive systems and infotainment
Q & A
- What is the core supply voltage of the TMS320VC5410AZGU12?
The core supply voltage can be either 1.6 V (for 160 MIPS) or 1.5 V (for 120 MIPS). - How much on-chip RAM does the TMS320VC5410AZGU12 have?
The TMS320VC5410AZGU12 has 128 kB of on-chip RAM. - What types of interfaces are available on the TMS320VC5410AZGU12?
The processor features a Host Interface, McBSP (Multichannel Buffered Serial Ports), and an Enhanced 8-/16-Bit Host-Port Interface (HPI8/16). - Does the TMS320VC5410AZGU12 have any on-chip timers?
Yes, it includes one 16-bit timer. - How many DMA channels does the TMS320VC5410AZGU12 support?
The processor supports six-channel Direct Memory Access (DMA). - What is the architecture of the TMS320VC5410AZGU12?
The processor is based on an advanced modified Harvard architecture with one program memory bus and three data memory buses. - What is the maximum number of I/O ports available on the TMS320VC5410AZGU12?
The processor has 64K I/O ports. - Does the TMS320VC5410AZGU12 support power management features?
Yes, it includes power consumption control with IDLE1, IDLE2, and IDLE3 instructions and power-down modes. - What is the purpose of the McBSPs on the TMS320VC5410AZGU12?
The Multichannel Buffered Serial Ports (McBSPs) are used for serial communication and can operate as SPI master or slave, among other modes. - Is the TMS320VC5410AZGU12 compatible with IEEE Standard 1149.1-1990?
Yes, it supports the IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture.
