Overview
The TMS320VC5409AP12 is a fixed-point digital signal processor (DSP) developed by Texas Instruments. This processor is based on an advanced modified Harvard architecture, featuring one program memory bus and three data memory buses. This architecture allows for simultaneous access to program instructions and data, enabling high parallelism and efficient execution of arithmetic, logic, and bit-manipulation operations.
The TMS320VC5409A, as referred to in the datasheet, includes a highly specialized instruction set that supports powerful operations such as two read operations and one write operation in a single cycle. It also includes various on-chip peripherals and memory, making it a versatile component for a wide range of digital signal processing applications.
Key Specifications
| Specification | Description |
|---|---|
| Architecture | Advanced modified Harvard architecture |
| Memory Buses | One program memory bus, three data memory buses |
| Arithmetic Logic Unit (ALU) | 40-bit ALU with 40-bit barrel shifter and two 40-bit accumulators |
| Multiplier | 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder |
| On-Chip Memory | On-chip RAM, on-chip ROM with bootloader, and extended program memory |
| Peripherals | Six-channel DMA controller, three multichannel buffered serial ports (McBSPs), 16-bit timer, and enhanced parallel host-port interface (HPI8/16) |
| Power Supply | 1.6-V core supply voltage (160 MIPS), 1.5-V core supply voltage (120 MIPS) |

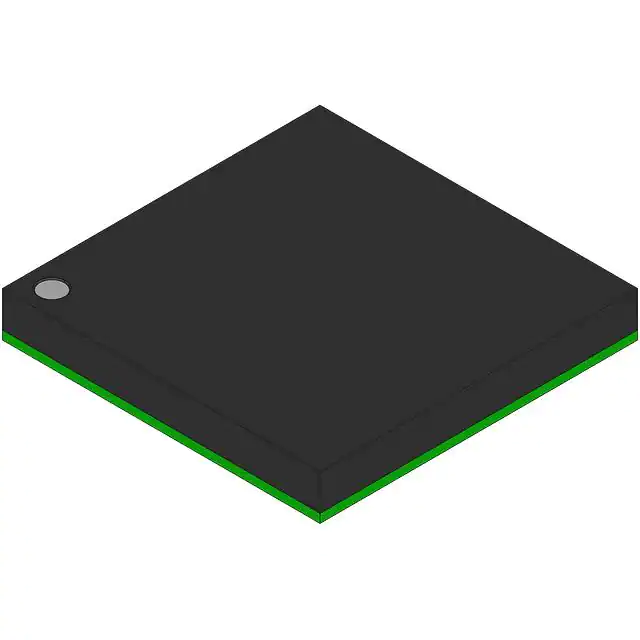

| Package Options | 144-pin ball grid array (BGA) and 144-pin low-profile quad flatpack (LQFP) |
Key Features
- High Parallelism: Supports two read operations and one write operation in a single cycle.
- Advanced ALU: 40-bit arithmetic logic unit with a 40-bit barrel shifter and two 40-bit accumulators.
- Multiplier and Adder: 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder for non-pipelined single-cycle multiply/accumulate (MAC) operations.
- On-Chip Peripherals: Includes six-channel DMA controller, three multichannel buffered serial ports (McBSPs), 16-bit timer, and enhanced parallel host-port interface (HPI8/16).
- Power Management: Power consumption control with IDLE1, IDLE2, and IDLE3 instructions and power-down modes.
- Memory Security: On-chip memory security features.
- Instruction Set: Highly specialized instruction set with conditional store instructions, fast return from interrupt, and instructions with parallel store.
Applications
- Telecommunications: Used in various telecommunications applications such as modems, fax machines, and voiceband codecs.
- Audio Processing: Suitable for audio processing tasks including audio compression, decompression, and effects processing.
- Image Processing: Can be used in image processing applications like image compression, filtering, and enhancement.
- Industrial Control: Applied in industrial control systems for tasks such as motor control, data acquisition, and signal processing.
- Medical Devices: Used in medical devices for signal processing, imaging, and diagnostic equipment.
Q & A
- What is the architecture of the TMS320VC5409A DSP?
The TMS320VC5409A is based on an advanced modified Harvard architecture with one program memory bus and three data memory buses.
- What are the key components of the ALU in the TMS320VC5409A?
The ALU includes a 40-bit arithmetic logic unit with a 40-bit barrel shifter and two 40-bit accumulators.
- What type of multiplier does the TMS320VC5409A have?
The processor features a 17 × 17-bit parallel multiplier coupled to a 40-bit dedicated adder.
- What on-chip peripherals are available on the TMS320VC5409A?
The processor includes a six-channel DMA controller, three multichannel buffered serial ports (McBSPs), a 16-bit timer, and an enhanced parallel host-port interface (HPI8/16).
- What are the power supply options for the TMS320VC5409A?
The processor can operate with a 1.6-V core supply voltage (160 MIPS) or a 1.5-V core supply voltage (120 MIPS).
- What package options are available for the TMS320VC5409A?
The processor is available in 144-pin ball grid array (BGA) and 144-pin low-profile quad flatpack (LQFP) packages.
- What is the significance of the on-chip memory security feature?
The on-chip memory security feature helps protect the integrity of the data stored in the processor's memory.
- How does the TMS320VC5409A manage power consumption?
The processor includes power consumption control with IDLE1, IDLE2, and IDLE3 instructions and power-down modes.
- What are some common applications of the TMS320VC5409A?
The TMS320VC5409A is used in telecommunications, audio processing, image processing, industrial control, and medical devices.
- Where can I find detailed documentation for the TMS320VC5409A?
Detailed documentation can be found on the Texas Instruments website, including the datasheet and other technical resources.
